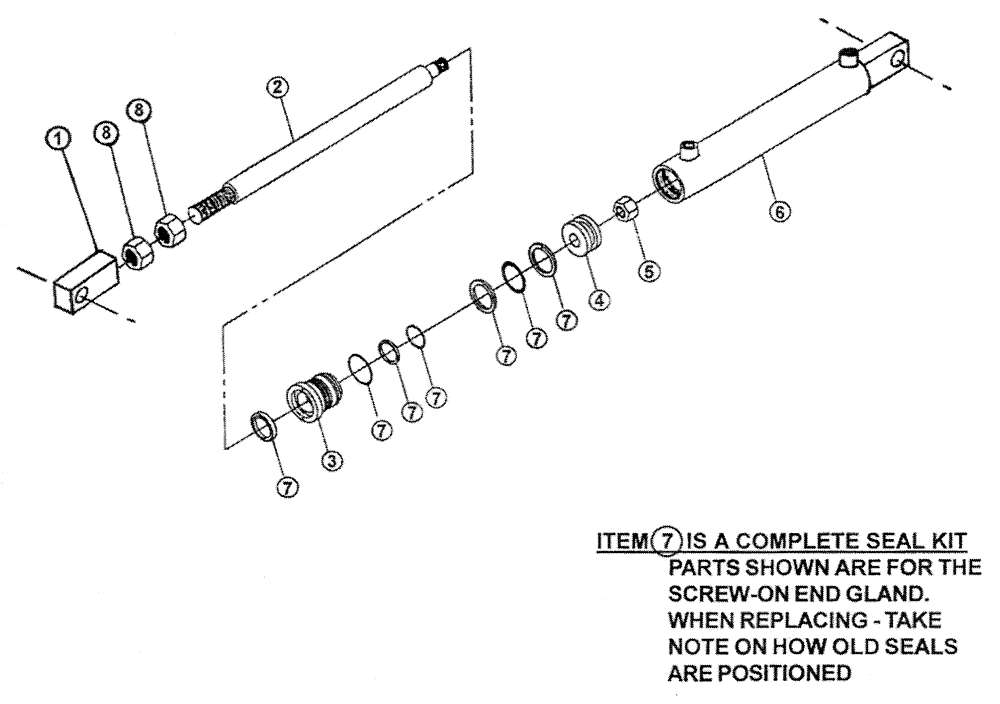

Запчасти Case IH PATRIOT WT (06-006) - HYDRAULIC CYLINDER - BOOM LEVEL - (3" X 10") - 1" DIA ROD Cylinders

0

BN53806

CYLINDER

Hydraulic w/Clevis (Complete)

1шт.

1

BN98519

CLEVIS

for cylinder BN53806

1шт.

2

BN98520

ROD

for cylinder BN53806

1шт.

3

BN98517

GLAND

end

1шт.

4

BN98518

PISTON

for cylinder BN53806

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

Ask

Tube

1шт.

7

BN98340

SEAL KIT

1шт.

8

BN98521

Jam

2шт.
