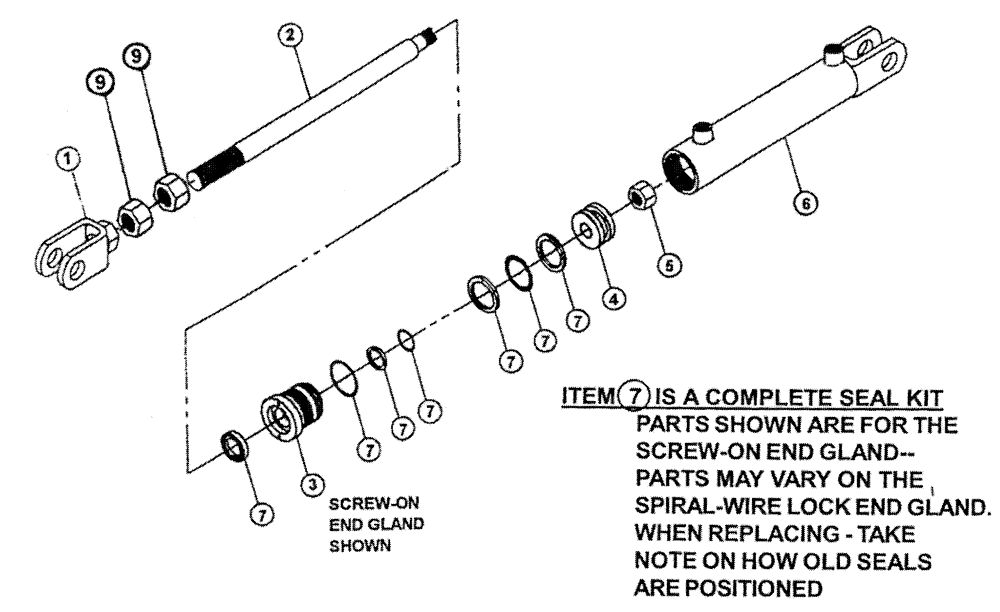

Запчасти Case IH PATRIOT WT (06-005) - HYDRAULIC CYLINDER - BOOM OUTER FOLD - (2" X 10") Cylinders

0

BN51461

CYLINDER

HYD. w/Clevis (Complete)

1шт.

1

BN92395

CLEVIS

1шт.

Screw-On End Gland Type

1шт.

2

BN95002

SHAFT

Cylinder

1шт.

Screw-On End Gland Type

1шт.

3

BN92353

GLAND

end

1шт.

Screw-On End Gland Type

1шт.

4

BN98091

PISTON

hydraulic cylinder

1шт.

Screw-On End Gland Type

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

Ask

1шт.

Screw-On End Gland Type

1шт.

7

BN98180

SEAL KIT

Seal Kit

1шт.

Complete Seal Kit - Parts Shown Are For The Screw-On End Gland - Parts May Vary On The Spiral-Wire Lock End Gland. When Replacing, Take Note On How Old Seals Are Positioned

1шт.

Screw-On End Gland Type

1шт.

9

BN98521

Jam

2шт.

0

BN22705

CYLINDER

HYD. w/Clevis (Complete)

1шт.

1

BN98031

CLEVIS

1шт.

Spiral-Wire Lock End Gland Type

1шт.

2

BN98028

Cylinder

1шт.

Spiral-Wire Lock End Gland Type

1шт.

3

BN98030

GLAND

End

1шт.

Spiral-Wire Lock End Gland Type

1шт.

4

BN98029

1шт.

Spiral-Wire Lock End Gland Type

1шт.

5

BN98090

Jam

1шт.

Spiral-Wire Lock End Gland Type

1шт.

6

Ask

1шт.

Spiral-Wire Lock End Gland Type

1шт.

7

BN95998

SEAL KIT

1шт.

Spiral-Wire Lock End Gland Type

1шт.

8

BN98096

RETAINING WIRE

End Gland Lock

1шт.

Spiral-Wire Lock End Gland Type

1шт.

9

BN98521

Jam

2шт.

Spiral-Wire Lock End Gland Type

1шт.
