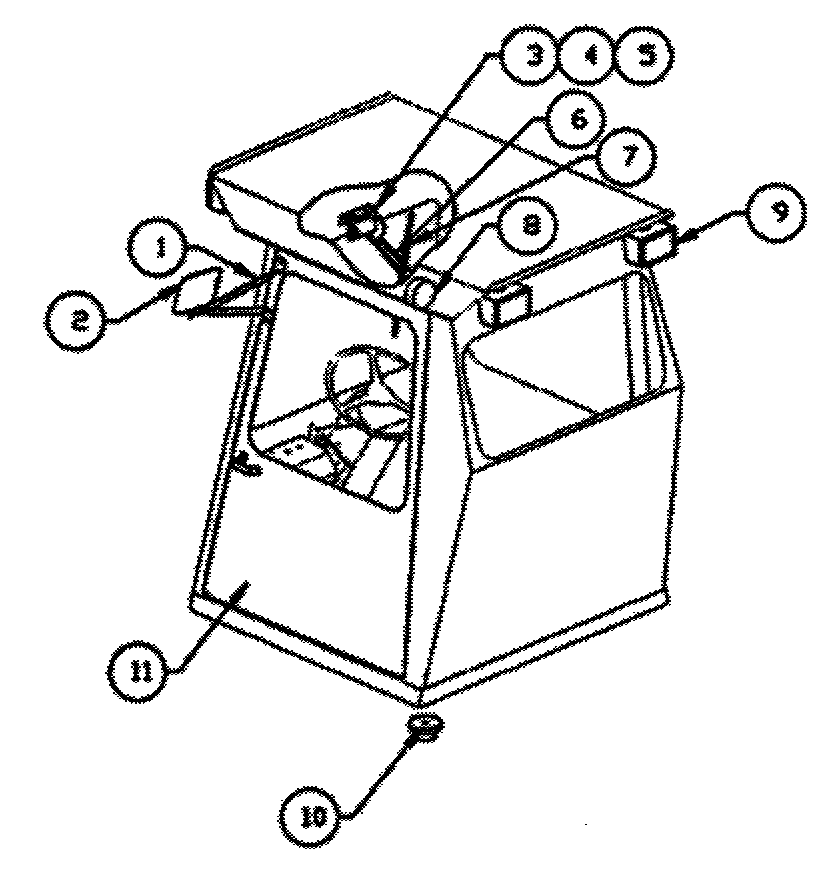

Запчасти Case IH PATRIOT WT (01-003) - CAB ACCESSORIES Cab Interior

1

BN63859

HYD TUBE

Mirror

4шт.

2

BN29251

REPLACEMENT MIRROR

Head, Black

2шт.

3

BN29881

BRACKET

Mount - Wiper Motor

1шт.

4

BN29270

ADAPTER

Pantograph Arm, Black

1шт.

5

BN29267

WIPER MOTOR

MOTOR, WIPER 2 Speed, 12V

1шт.

BN29268

DRIVE

Arm-wiper

1шт.

137961A1

SHAFT

And Pivot Assembly

1шт.

6

BN29272

ARM

Pantograph 18" Black

1шт.

7

353273A1

BLADE,558.8mm L

Front Wiper, 22"

1шт.

8

BN324281

LIGHT

Amber Flashing

2шт.

BN29973

LENS

Amber

4шт.

9

BN29252

LIGHT

Flood 900/H9406 12V

4шт.

BN98185

LENS

Sealed Beam - Flood

4шт.

10

BN29243

ISOLATOR

Rubber 1/2" Bore

4шт.

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

4шт.

11

BN29309

Door - Complete

1шт.

BN29113

DOOR

1шт.

BN29420

SEAL

Clip-On, 194"

1шт.

BN29287

LATCH

Door, Inside, RH

1шт.

BN29288

HANDLE

Locking, Outside, With Keys

1шт.

BN98412

WRENCH

KEY, LOCK Door Handle

1шт.

BN29290

STRIKER PLATE

Door

1шт.

BN29823

SHIM

14 ga 304 1" x 3"

3шт.

BN29421

SEAL, GLASS

Rubber, Window, Inline, 124"

1шт.

BN29425

GLASS

Tint 30" x 32" x .218

1шт.

BN29434

GAS STRUT

Cylinder Kit - Charged - Door (Complete)

1шт.

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

2шт.

Part of 20434

1шт.

BN24120

CLIP, SPRING

Gas Cylinder

2шт.

Part of 29434

1шт.

BN29101

Door Stop - Bottom (Bolt To Floor)

1шт.

12

BN29906

Lifting Eye

2шт.

Not Shown

1шт.

13

BN29296

Conditioning Package - Complete

1шт.

See Fig. 01-005 for Air Conditioning

1шт.

BN33615

Air Conditioning & Heat Package - Complete

1шт.

BN29403

Heater - Add On

1шт.

See Fig. 01-006 For Heater

1шт.

BN50934

WASHER

Neoprene & S.S. (Air Conditioning Mounting)

6шт.

BN25260

HOLDER

Pop Can

1шт.

BN25313

MOUNTING PLATE

Pop Holder

1шт.

BN25261

ASH TRAY

Self Leveler

1шт.

BN25259

MOUNTING PLATE

Ash Tray

1шт.

BN98808

FILTER

A/C Recirculation Filter, Not Shown

2шт.
