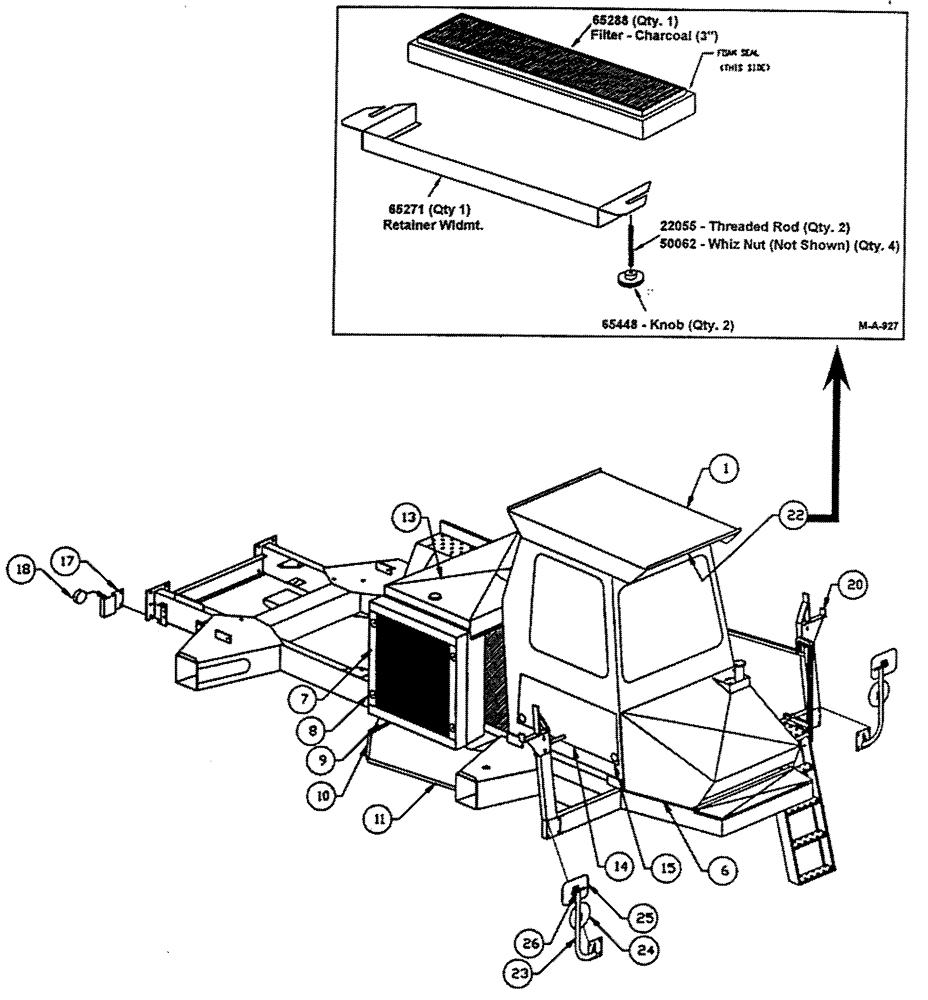

Запчасти Case IH PATRIOT WT (01-001) - CAB Cab Interior

1

BN29102

Cab Assembly - Complete

1шт.

See Figs. 01-002, 01-003 And 01-004 For More Complete Detail

1шт.

6

BN29300

FUEL TANK

1шт.

BN27530

CAP

Gas, Vented

1шт.

BN29308

SENDER UNIT

Fuel Tank

1шт.

BN26001

Hose - 3/8" ID X 114"

1шт.

BN29632

Return Fuel Hose - 1/4" ID X 120"

1шт.

BN52300

ELBOW

90° 1/4"-18 NPT

1шт.

BN52303

FITTING

Barb - 3/8" NPT x 1/4" 90º

1шт.

BN72017

HOSE

barb-1/4" NPTM x 3/8" steel

1шт.

BN76094

HOSE CLAMP

SS #M4

4шт.

BN94071

VALVE

Ball - 1/4" NPT Bronze

1шт.

7

BN25633

1шт.

BN63643

1шт.

BN65195

Kit

1шт.

8

BN29392

KNOB

3" With 3/8"-16 Female Thread

4шт.

9

BN25822

GUIDE

RH hose roller

1шт.

BN25823

GUIDE

LH hose roller

1шт.

10

BN22376

2шт.

11

BN25829

Roller

2шт.

13

BN25632

COVER

1шт.

14

BN29111

PANEL

1шт.

BN29962

RUBBER SEAL

Weatherstrip 1/4" x 3/4" x 17 1/4"

2шт.

BN29963

RUBBER SEAL

Weatherstrip 1/4" x 3/4" x 39"

1шт.

BN29964

RUBBER SEAL

RUBBER SEAL Weatherstrip 1/4" x 3/4" x 41"

1шт.

BN29497

Mount - Fuse Holder

1шт.

BN29907

Seal - Edge Guard (Hole In Floor)

1шт.

15

BN29392

KNOB

3" With 3/8"-16 Female Thread

2шт.

17

BN29639

BRACKET, SUPPORTING

10 ga HRS 6" x 12"

2шт.

18

BN325828

TAIL LAMP

Red

2шт.

BN29972

LENS

Red

2шт.

20

BN24464

CRADLE

LH

1шт.

BN24465

CRADLE

RH

1шт.

21

BN25641

RADIATOR

1шт.

BN98232

CAP

Radiator

1шт.

22

NSS

NOT SOLD SEPARAT

Filter w/Retainer

1шт.

23

BN63857

ARM

Mirror

2шт.

24

BN63850

MIRROR

Convex

2шт.

25

BN63851

MIRROR

7-1/2 x 10-1/2

2шт.

26

BN306477

CLAMP

Assembly, Mirror

2шт.
