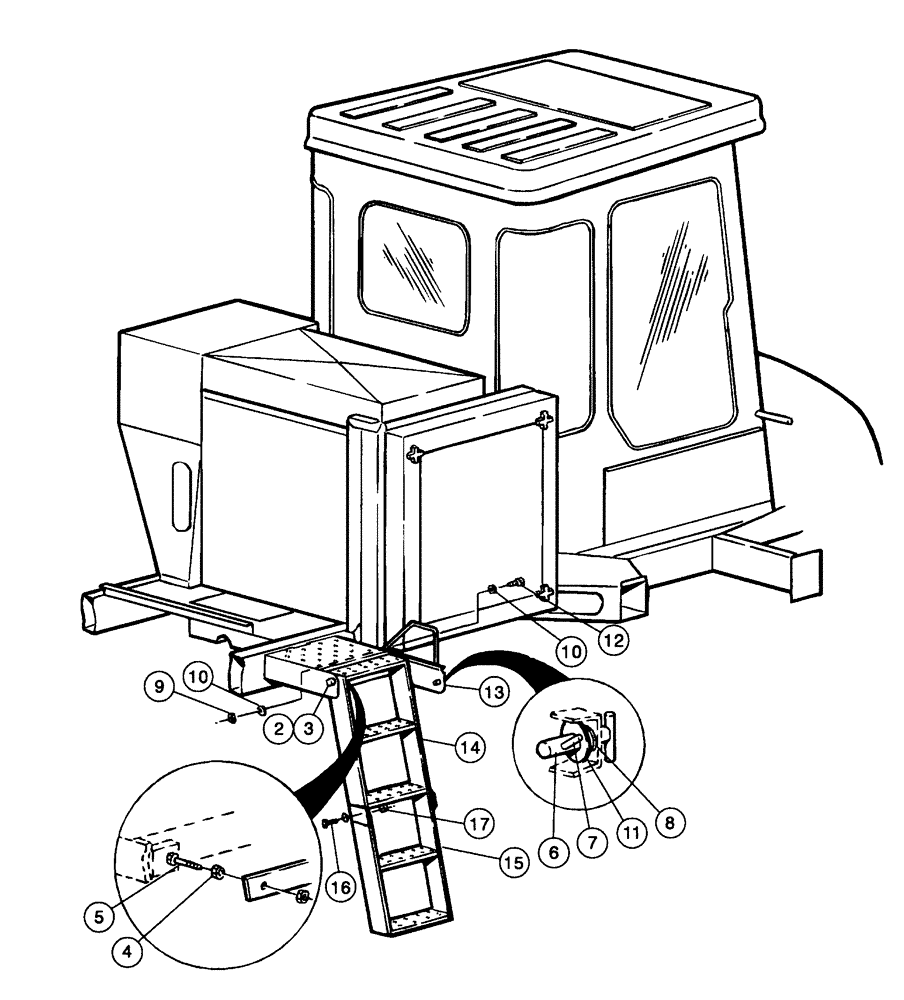

Запчасти Case IH PATRIOT WT (04-004) - LADDER - RH Suspension & Frame

2

BN25138

SHAFT

1" x 17.25"

1шт.

3

BN50605

PIN, ROLL

7/32 X 1-1/2

1шт.

4

86992215

LOCK NUT,1/2"-13, GC

4шт.

5

BN50973

BOLT

1/2-13 X 2.75, HH, 5, PL

2шт.

6

BN25257

PIN

Side Ladder

1шт.

7

BN31444

PIN, ROLL

1/4 X 1-1/2

1шт.

8

BN31937

SPRING

Compression, .905 x .765

1шт.

9

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

4шт.

10

BN50145

WASHER

3/8, G5

8шт.

11

BN50157

WASHER

3/4 Flat Plated

1шт.

12

BN50367

BOLT

3/8-16 X 1, HH, 5, PL

4шт.

13

BN63581

LATCH

1шт.

14

BN63582

LADDER

Bi-Fold Top

1шт.

15

BN63583

LADDER

bi fold, 2 step

1шт.

16

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

2шт.

17

86992215

LOCK NUT,1/2"-13, GC

2шт.
