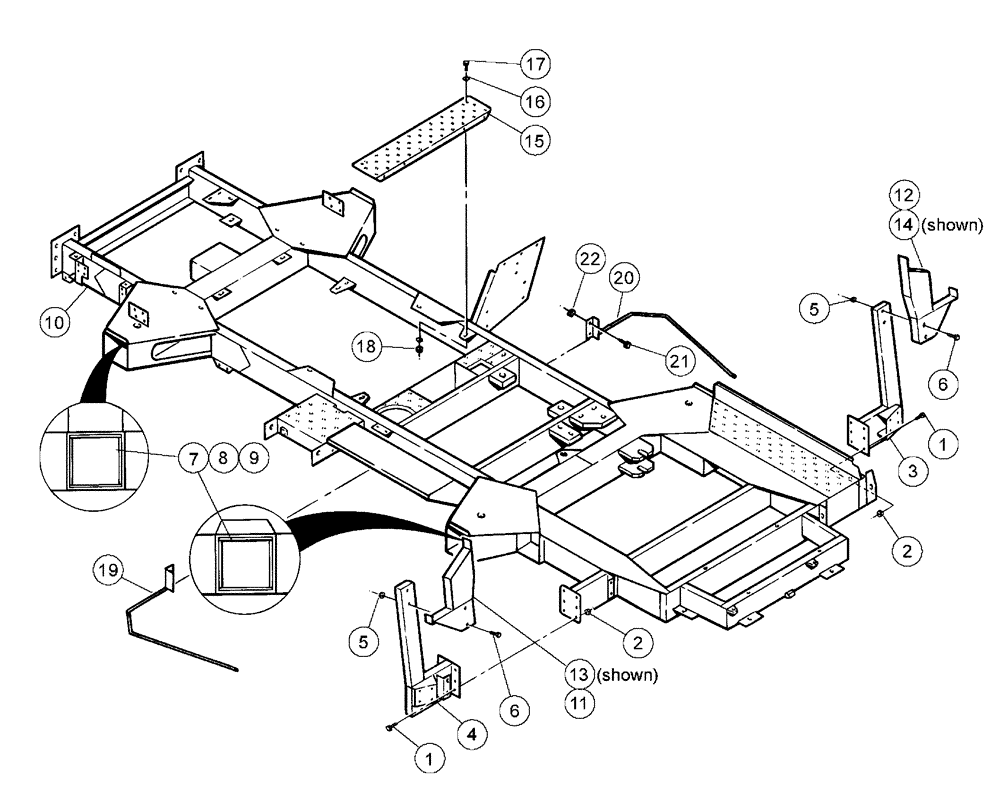

Запчасти Case IH PATRIOT WT (04-001) - FRAME ASSEMBLY Suspension & Frame

1

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

2

86992215

LOCK NUT,1/2"-13, GC

6шт.

3

BN66275

SUPPORT

LH Cradle

1шт.

4

BN66392

SUPPORT

RH Cradle

1шт.

5

BN50072

NUT

Hex, 1/2"-13, G5, PL

4шт.

6

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

7

BN50056

LOCK NUT

5/16"-18, Whiz

16шт.

8

BN50014

BOLT

5/16"-18 x .75, EH

16шт.

9

BN25527

LINER

nylatron .187 x 7 x 40

16шт.

10

67400

CLAMP

Frame - (773)

1шт.

11

BN24465

CRADLE

RH 75' Boom

1шт.

12

BN24464

CRADLE

LH 75' Boom

1шт.

13

BN29933

SUPPORT

Cradle-LH

1шт.

Shown

1шт.

90' Boom

1шт.

14

BN29934

SUPPORT

Cradle-RH

1шт.

Shown

1шт.

90' Boom

1шт.

15

BN25394

PLATFORM

Deck 14GA., HRS, 11.5 x 44.0

1шт.

Shown

1шт.

15

BN24158

LOAD DECK

14 ga. HRS, 13" x 44"

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

Eliptical Tank

1шт.

16

BN50142

WASHER,5/16", Stainless Steel

12шт.

17

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

18

BN68210

5/16-18, CTR, SS

6шт.

19

BN25822

GUIDE

RH hose roller

1шт.

20

BN25823

GUIDE

LH hose roller

1шт.

21

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

22

86992215

LOCK NUT,1/2"-13, GC

4шт.
