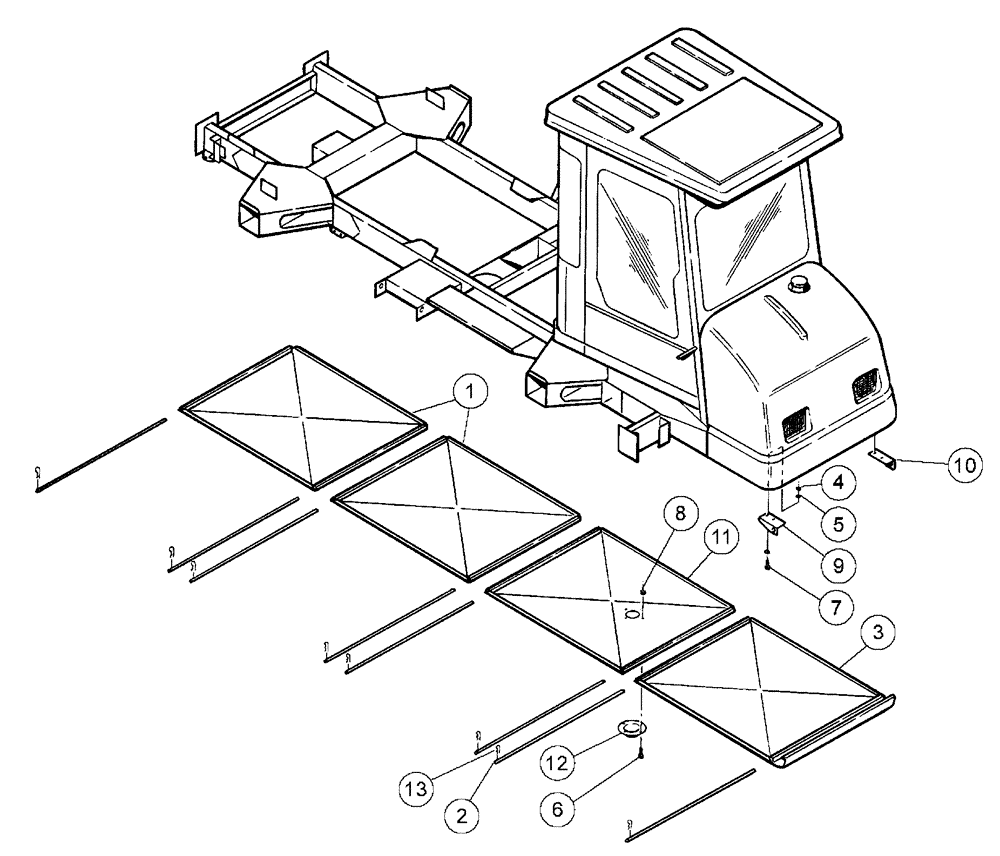

Запчасти Case IH PATRIOT WT (11-001) - BELLYPAN ASSEMBLY Options

1

BN28493

PAN

Belly

2шт.

2

BN28497

PIN,19.05mm OD x 1219.2mm L

3/4" CF Round x 48"

8шт.

3

BN28762

PAN

Belly - Front

1шт.

4

BN50131

LOCK NUT

3/8-16, CTR, PL

4шт.

5

BN50145

WASHER

3/8, G5

8шт.

6

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

7

BN50403

BOLT

Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

8

280736

NUT,5/16"-18, GC

4шт.

9

BN69834

MOUNTING PLATE

RH Front Bellypan

1шт.

10

BN69835

MOUNTING PLATE

LH Front Bellypan

1шт.

11

BN69836

Bellypan w/Hole

1шт.

12

BN69874

Hole w/Drain Hole

1шт.

13

BN71006

COTTER PIN

1/8", #11

16шт.
