(09-035) - 90 6-BOOM SHUTOFF - RH BOOM

Запчасти Case IH PATRIOT WT (09-035) - 90 6-BOOM SHUTOFF - RH BOOM Liquid Plumbing

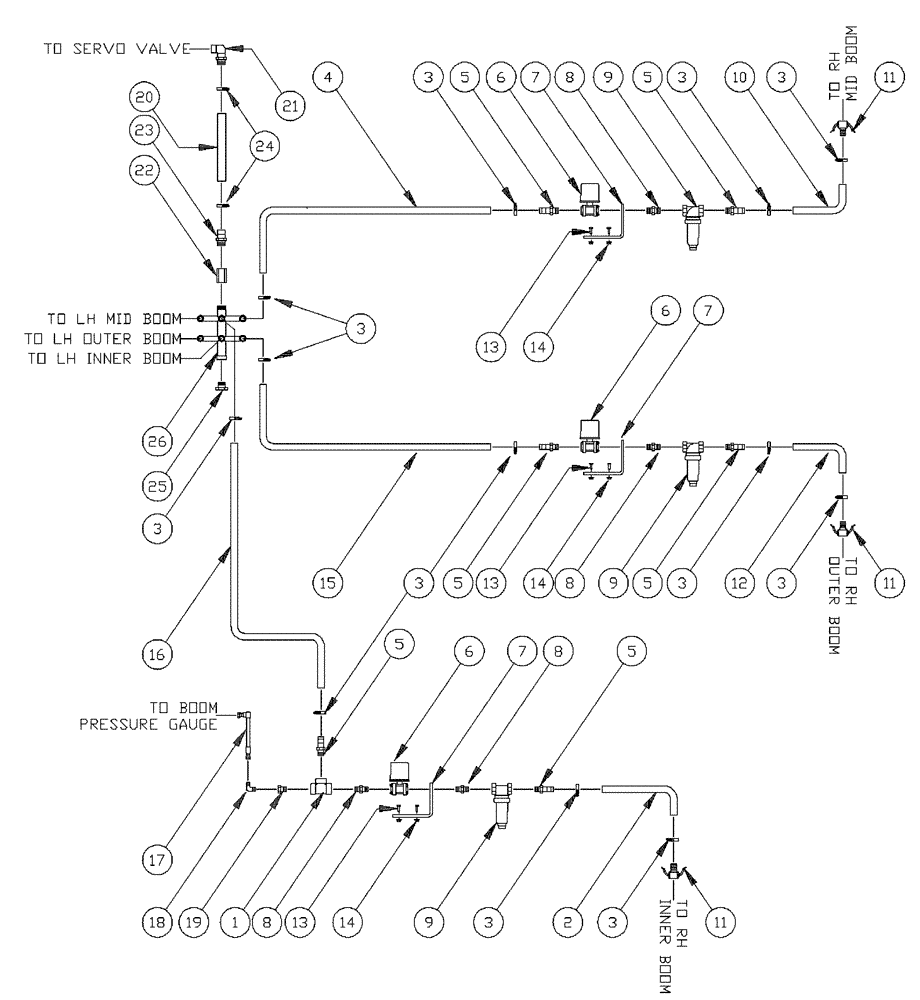

Схема запчастей Case IH PATRIOT WT - (09-035) - 90 6-BOOM SHUTOFF - RH BOOM Liquid Plumbing
6
8
24
14
10
9
3
3
5
5
7
11
14
13
13
5
23
5
8
3
3
3
14
21
5
1
4
19
13
5
3
2
8
18
26
9
9
3
8
20
6
16
15
3
7
3
7
6
17
11
22
25
3
11
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN73629

TEE

1" Poly Pipe

1шт.

2

BN66858

HOSE

1" EPDM x 31.00"

1шт.

3

BN75990

HOSE CLAMP

#16, Stainless Steel

12шт.

4

BN53746

HOSE,1.00" ID x 250.00"

EPDM

1шт.

5

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

6шт.

6

87389559

VALVE

Electric, 1" Ball

3шт.

7

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

3шт.

8

BN73648

NIPPLE

1" Short Poly Pipe

4шт.

9

BN73681

FILTER STRAINER

Assembly 1 " 50 Mesh

3шт.

9a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

10

BN67565

HOSE

1" EPDM x 350.00"

1шт.

9b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

11

BN53668

COUPLING

1" Female, HS SHK

3шт.

12

BN66855

HOSE

1" EPDM x 26.00"

1шт.

13

BN50211

BOLT

1/4"-20 x .75, HH, G5, PI

6шт.

14

BN50051

NUT,1/4"-20, USR

6шт.

15

BN66854

HOSE

1" EPDM x 135.00"

1шт.

16

BN66857

HOSE

1" EPDM x 15.00"

1шт.

17

BN67990

HOSE,0.38" ID x 260.00"

EPDM

1шт.

18

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

1шт.

19

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

20

BN67135

HOSE

1.25 EPDM x 90.00"

1шт.

21

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

22

BN73738

COUPLING

1-1/2" Poly Pipe

1шт.

23

BN73740

PIPE FITTING,1-1/2" Male Thread x 1-1/4" Hose Barb

Barb, 1-1/2 NPT x 1-1/4 HB

1шт.

24

BN76084

HOSE CLAMP

Adj. #24, SS

2шт.

25

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

26

BN66643

MANIFOLD

Outlet - 6 Port

1шт.
