Запчасти Case IH PATRIOT WT (09-030[02]) - 75 5-BOOM SHUTOFF - 10" ON CENTER - NOZZLES Liquid Plumbing

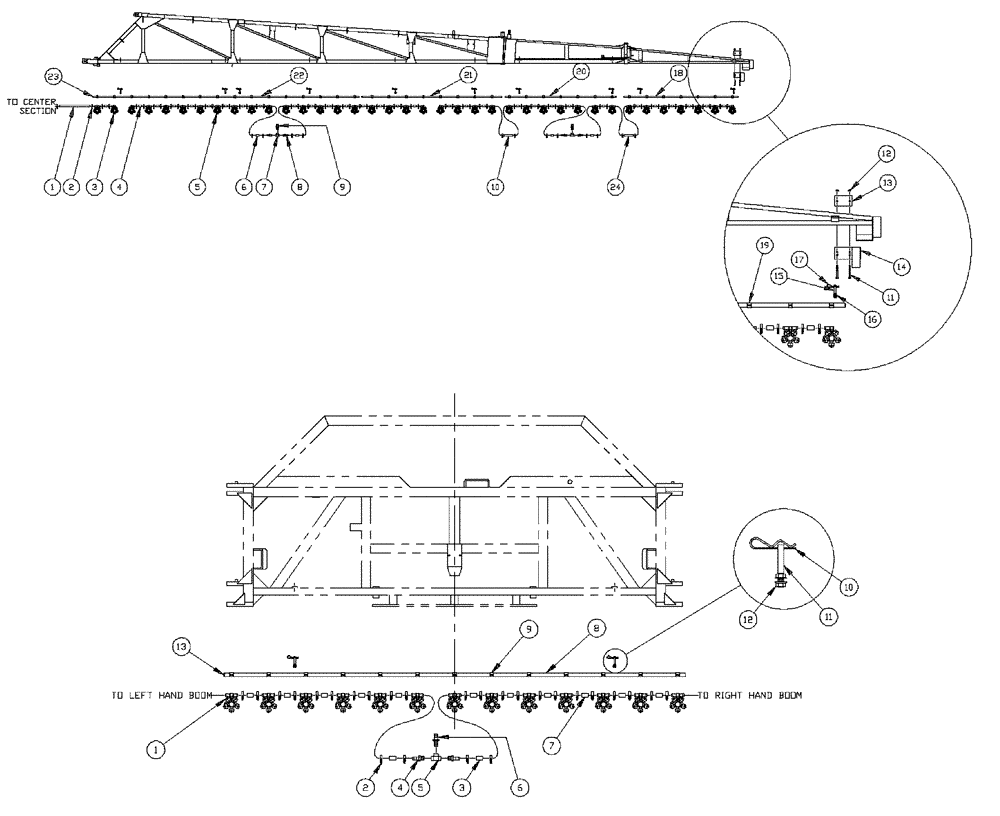

Схема запчастей Case IH PATRIOT WT - (09-030[02]) - 75 5-BOOM SHUTOFF - 10" ON CENTER - NOZZLES Liquid Plumbing
3
8
10
14
6
19
1
7
5
21
13
16
11
13
24
6
15
3
9
5
7
4
10
8
2
19
12
20
12
11
23
17
9
1
22
2
4

Артикул

Название

Примечание

Количество

1

BN68699

NOZZLE

5 way double, 3/4" SHA

13шт.

Shown

1шт.

1

BN74621

NOZZLE

3-Way Double 3/4" SHA

13шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

1

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

13шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

2

BN75978

HOSE CLAMP

SS #12 ADJ HS .56 - 1.25

26шт.

3

BN53860

EPDM 3/4" ID x 1.75"

2шт.

4

BN53666

FITTING

Barb - 1 NPT x 3/4 Hose

2шт.

5

BN73629

TEE

1" Poly Pipe

1шт.

6

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

1шт.

7

BN53862

Hose - EPDM 3/4" ID x 8.5"

11шт.

8

BN24486

TUBE

1" Sq x 124"

1шт.

9

BN74448

CLAMP

1" square tubing

13шт.

10

BN71006

COTTER PIN

1/8", #11

2шт.

11

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

12

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

4шт.

13

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

2шт.

Выбрано товаров: 18
