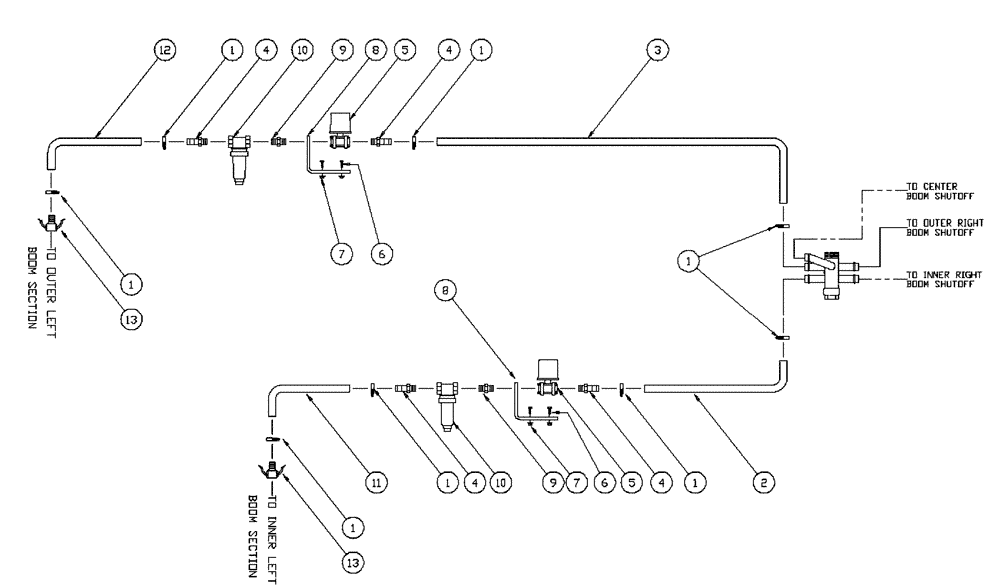

Запчасти Case IH PATRIOT WT (09-026) - 75 5-BOOM SHUTOFF - RAVEN/MID-TECH LH BOOM Liquid Plumbing

1

BN75990

HOSE CLAMP

#16, Stainless Steel

8шт.

2

BN53758

HOSE,222.00"

1шт.

3

BN67565

HOSE

1" EPDM x 350.00"

1шт.

4

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

5

87389559

VALVE

Electric, 1" Ball

2шт.

6

BN50211

BOLT

1/4"-20 x .75, HH, G5, PI

4шт.

7

BN50051

NUT,1/4"-20, USR

4шт.

8

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

2шт.

9

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

10

BN73681

FILTER STRAINER

Assembly 1" 50 Mesh

2шт.

10a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

11

BN53871

1" EPDM x 18.0"

1шт.

12

BN53845

EPDM 1" ID x 108"

1шт.

10b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

13

BN53668

COUPLING

1" Female, HS SHK

2шт.
