Запчасти Case IH PATRIOT WT (09-024[02]) - 75 3-BOOM SHUTOFF - 20" ON CENTER - NOZZLES Liquid Plumbing

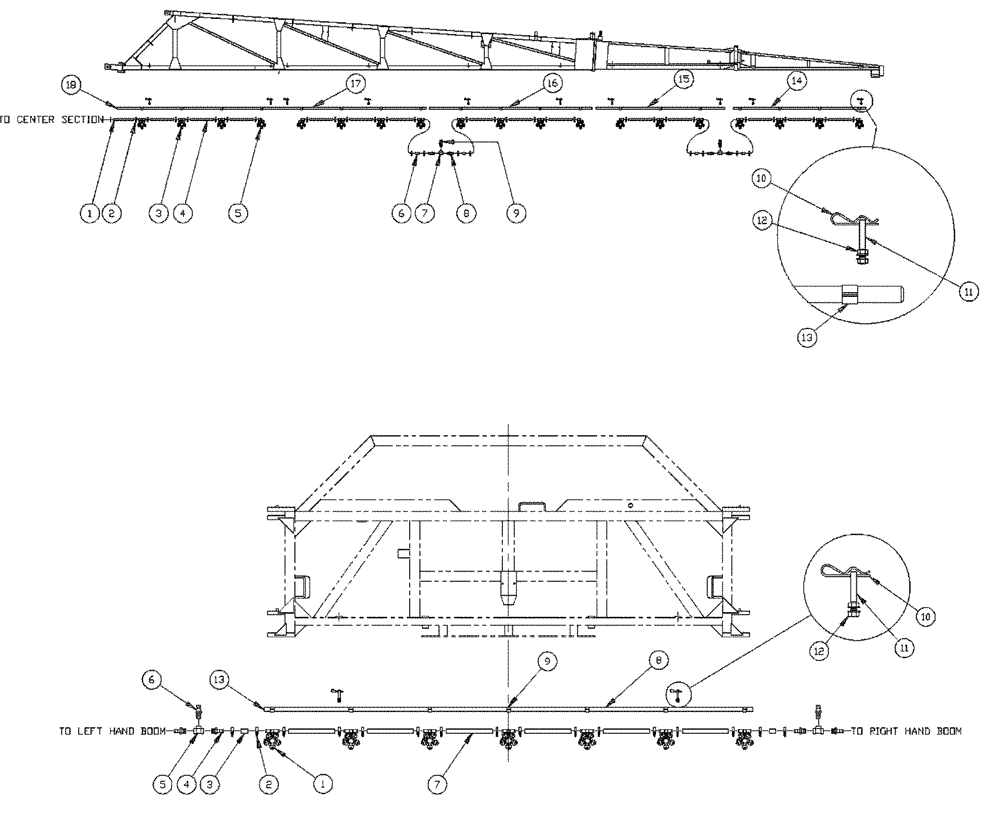

Схема запчастей Case IH PATRIOT WT - (09-024[02]) - 75 3-BOOM SHUTOFF - 20" ON CENTER - NOZZLES Liquid Plumbing
13
17
7
18
8
1
13
9
3
4
2
16
6
4
3
14
12
11
9
10
5
6
5
15
2
11
10
7
12
8
1

Артикул

Название

Примечание

Количество

1

BN68699

NOZZLE

5 way double, 3/4" SHA

7шт.

Shown

1шт.

1

BN74621

NOZZLE

3-Way Double 3/4" SHA

7шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

1

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

7шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

2

BN75978

HOSE CLAMP

SS #12 ADJ HS .56 - 1.25

16шт.

3

BN53843

HOSE,0.75" ID x 12.50"

2шт.

4

BN53666

FITTING

Barb - 1 NPT x 3/4 Hose

4шт.

5

BN73629

TEE

1" Poly Pipe

2шт.

6

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

7

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

6шт.

8

BN24486

TUBE

1" Sq x 124"

1шт.

9

BN74448

CLAMP

1" square tubing

7шт.

10

BN71006

COTTER PIN

1/8", #11

2шт.

11

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

12

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

4шт.

13

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

2шт.

Выбрано товаров: 18
