Запчасти Case IH PATRIOT WT (09-024[01]) - 75 3-BOOM SHUTOFF - 20" ON CENTER - NOZZLES Liquid Plumbing

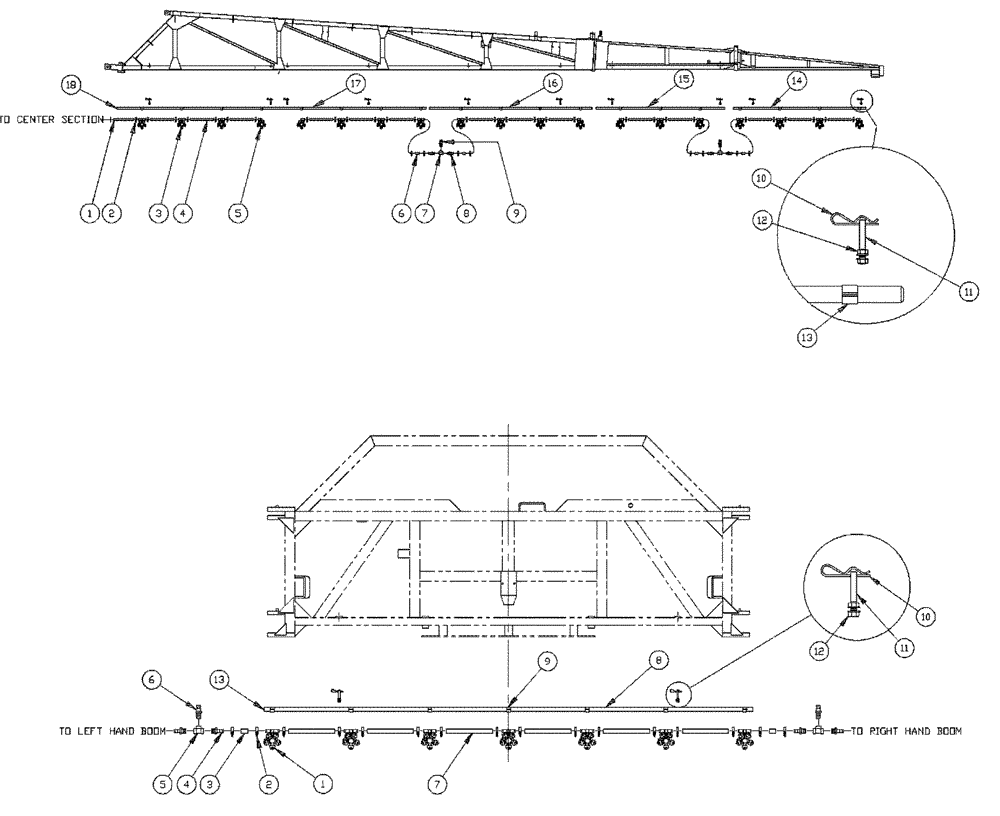

Схема запчастей Case IH PATRIOT WT - (09-024[01]) - 75 3-BOOM SHUTOFF - 20" ON CENTER - NOZZLES Liquid Plumbing
4
14
10
1
17
11
18
7
6
13
3
10
12
8
5
16
8
13
2
5
3
2
9
11
4
1
6
9
12
15
7

Артикул

Название

Примечание

Количество

1

BN53749

HOSE,0.75" ID x 36.00"

3/4" ID x 36"

1шт.

2

BN75978

HOSE CLAMP

SS #12 ADJ HS .56 - 1.25

38шт.

3

BN68699

NOZZLE

5 way double, 3/4" SHA

14шт.

Shown

1шт.

3

BN74621

NOZZLE

3-Way Double 3/4" SHA

14шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

3

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

14шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

4

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

14шт.

5

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

5шт.

Shown

1шт.

5

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

5шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

5

BN74618

Nozzle - 1-Way Single 3/4" SHA

5шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

6

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

4шт.

7

BN73629

TEE

1" Poly Pipe

2шт.

8

BN53666

FITTING

B arb - 1 NPT x 3/4 Hose

4шт.

9

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

10

BN71006

COTTER PIN

1/8", #11

10шт.

11

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

10шт.

12

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

20шт.

13

BN74448

CLAMP

1" square tubing

19шт.

14

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

1шт.

15

BN25937

TUBE

1 x 1 x 12 ga x 66.5 Long

1шт.

16

BN24477

TUBE

1" Sq x 81.5"

1шт.

17

BN24478

TUBE

1" Sq x 155"

1шт.

18

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

Выбрано товаров: 28
