Запчасти Case IH PATRIOT WT (09-023[01]) - 75 3-BOOM SHUTOFF - 10" ON CENTER - NOZZLES Liquid Plumbing

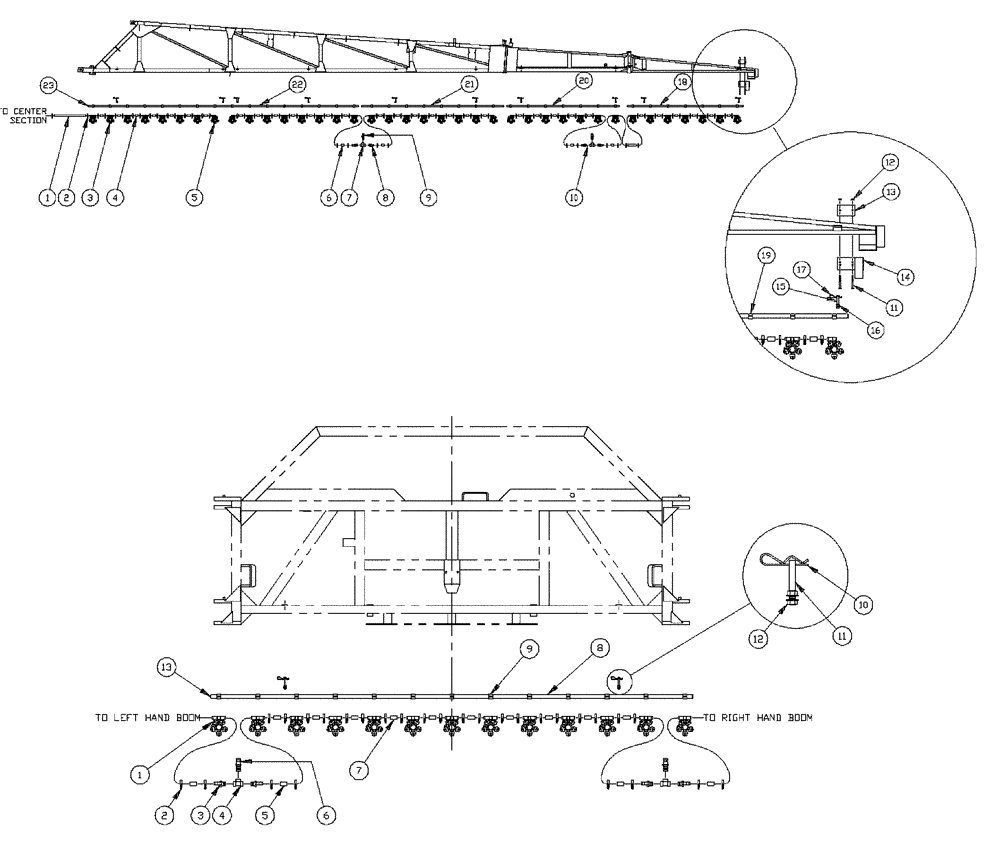

Схема запчастей Case IH PATRIOT WT - (09-023[01]) - 75 3-BOOM SHUTOFF - 10" ON CENTER - NOZZLES Liquid Plumbing
8
1
13
10
7
9
8
5
4
5
21
3
22
2
3
7
18
19
4
15
6
12
20
10
23
14
2
16
13
11
9
1
11
17
12
6

Артикул

Название

Примечание

Количество

1

BN53861

HOSE

EPDM 3/4" ID x 37

1шт.

2

BN75978

HOSE CLAMP

SS #12 ADJ HS .56 - 1.25

76шт.

3

BN68699

NOZZLE

5 way double, 3/4" SHA

33шт.

Shown

1шт.

3

BN74621

NOZZLE

3-Way Double 3/4" SHA

33шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

3

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

33шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

4

BN53862

Hose - EPDM 3/4" ID x 8.5"

32шт.

5

BN69475

NOZZLE

5 way single, 3/4" SHA

5шт.

Shown

1шт.

5

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

5шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

5

BN74618

Nozzle - 1-Way Single 3/4" SHA

5шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

6

BN53860

EPDM 3/4" ID x 1.75"

4шт.

7

BN73629

TEE

1" Poly Pipe

2шт.

8

BN53666

FITTING

Barb - 1 NPT x 3/4 Hose

4шт.

9

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

10

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

1шт.

11

BN50895

BOLT

5/16-18 x 3, HH, 5, PI

2шт.

12

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

13

BN24668

MOUNTING PLATE

7 GA HRS 2.5 x 4.25

1шт.

14

BN24665

MOUNTING PLATE

RH - Foam Tube

1шт.

Shown

1шт.

14a

BN24666

MOUNTING PLATE

LH - Foam Tube

1шт.

Opposite side

1шт.

15

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

10шт.

16

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

20шт.

17

BN71006

COTTER PIN

1/8", #11

10шт.

18

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

1шт.

19

BN74448

CLAMP

1" square tubing

38шт.

20

BN25937

TUBE

1 x 1 x 12 ga x 66.5 Long

1шт.

21

BN24477

TUBE

1" Sq x 81.5"

1шт.

22

BN24478

TUBE

1" Sq x 155"

1шт.

23

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

Выбрано товаров: 36
