Запчасти Case IH PATRIOT WT (09-017) - 750 GALLON ELLIPTICAL, 700 GALLON SS - RINSE TANK & DECK Liquid Plumbing

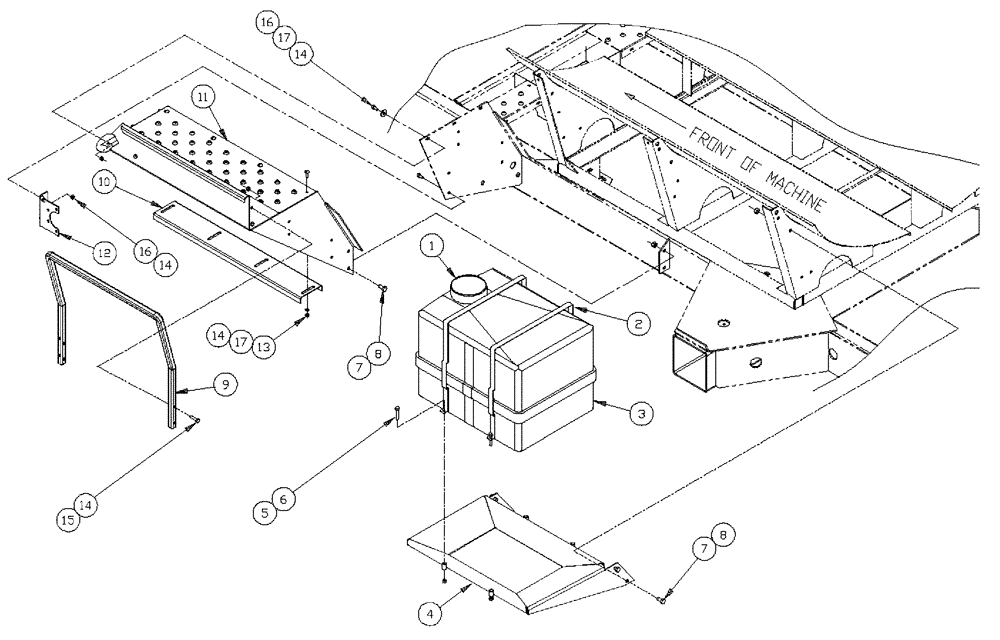

Схема запчастей Case IH PATRIOT WT - (09-017) - 750 GALLON ELLIPTICAL, 700 GALLON SS - RINSE TANK & DECK Liquid Plumbing
16
10
15
2
12
14
14
14
1
8
4
11
17
9
16
5
6
8
7
3
14
7
13
17

Артикул

Название

Примечание

Количество

1

BN24183

COVER

Rinse Tank (Ace)

1шт.

2

BN63984

STRAP

14 GA Hrs 1 x 49.5

2шт.

3

BN68008

TANK

35 Gallon

1шт.

4

BN24301

SUPPORT

35 Gallon Tank 771

1шт.

5

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

4шт.

6

BN50131

LOCK NUT

3/8-16, CTR, PI

4шт.

7

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

8

86992215

LOCK NUT,1/2"-13, GC

6шт.

9

BN24525

TUBE

Railing 12 ga 1 x 1 x 71.12

1шт.

10

BN24513

BRACKET

12 GA HRS 7.0 x 34.50

1шт.

11

BN318539

PLATFORM ASSY.

Deck, LH, 800 Elliptical

1шт.

12

BN29447

BRACKET

10 ga HRS 5.92" x 6.25"

1шт.

13

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

4шт.

14

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

13шт.

15

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

16

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

5шт.

17

BN50145

WASHER

3/8, G5

7шт.

Выбрано товаров: 17
