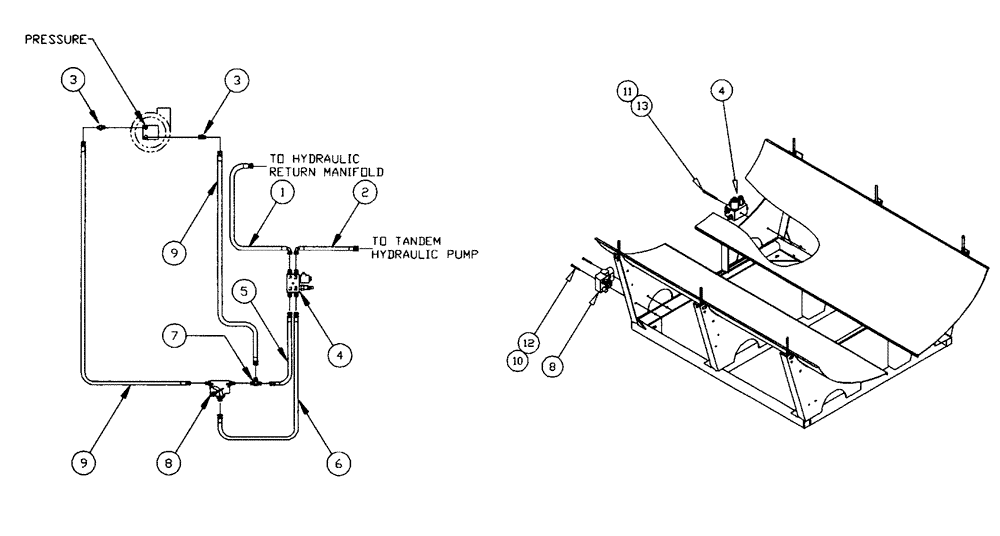

Запчасти Case IH PATRIOT WT (09-010) - 700 GALLON STAINLESS STEEL - HYDRAULIC Liquid Plumbing

1

BN53968

HOSE

1/2 x 26 100R2

1шт.

2

BN54172

HOSE

1/2" ID x 90" 100R2

1шт.

3

BN441006

ADAPTER

1/2 NPT-8 JIC

2шт.

4

NSS

NOT SOLD SEPARAT

Manifold - Solenoid & Relief Valve

1шт.

See Fig. 08-001

1шт.

5

BN53728

HOSE

Assembly - 1/2" x 56" 100R2

1шт.

6

BN55328

Assembly - 1/2 x 39.0 100R2

1шт.

7

BN53452

TEE

JIC - 3/4-16, MI Female

1шт.

8

BN65496

Assembly - Flow Regulator

1шт.

9

BN54238

HOSE

1/2" x 42", 100R2

2шт.

10

BN50534

BOLT

Hex, 1/4"-20 x 2 1/2", G5

2шт.

11

BN66740

SCREW,Hex, 5/16" - 18 x 4", SST

5/16-18 x 4, HH, SS

1шт.

12

BN50051

NUT,1/4"-20, USR

2шт.

13

BN50056

LOCK NUT

5/16"-18, Whiz

1шт.
