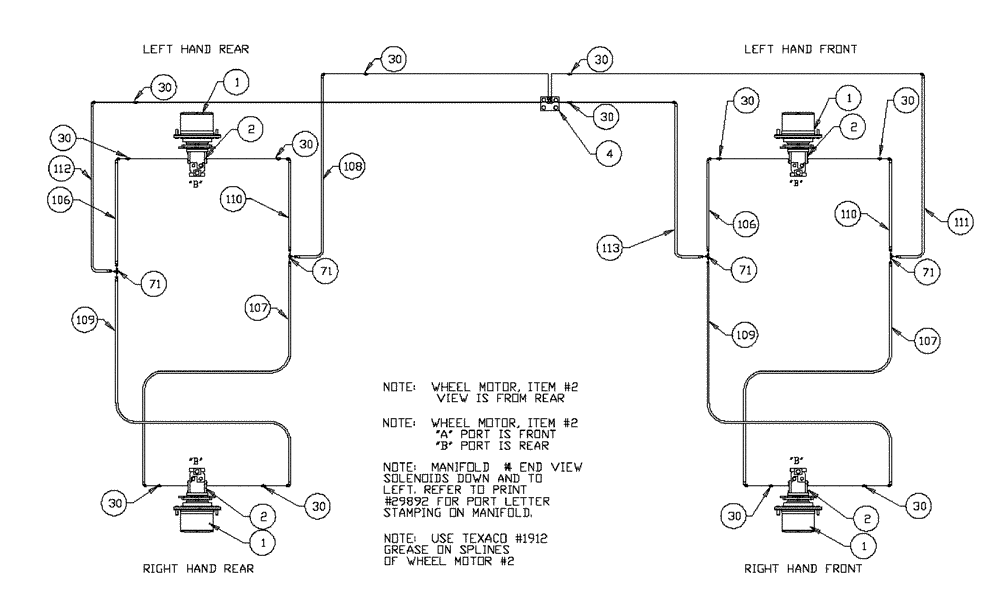

Запчасти Case IH PATRIOT WT (06-005) - HYDRAULIC PLUMBING - WHEEL MOTORS (POWER SHIFT) Hydraulic Plumbing

1

NSS

NOT SOLD SEPARAT

Hub - Power Wheel

1шт.

See Fig. 05-001 for Seals & Repair Parts

1шт.

1a

NSS

NOT SOLD SEPARAT

Cap - Hub Cover

4шт.

See Fig. 05-001

1шт.

2

NSS

NOT SOLD SEPARAT

Wheel Motor

4шт.

See Fig. 05-001

1шт.

4

NSS

NOT SOLD SEPARAT

Valve - Manifold

1шт.

See Fig. 06-012 For Seal & Repair Parts

1шт.

30

BN51589

FITTING

STR.-9/16-18 O-Ring x 7/16-20 JIC

12шт.

30a

BN98019

O-RING

#6

12шт.

Associated Part of Adapter STR - 9/16-18 O-Ring x 7/16-20 JIC, P/N 51589

1шт.

71

BN21422

TEE

7/16-20 JIC

4шт.

106

BN54232

HOSE

1/4" x 119", 100R1

2шт.

107

BN55114

HOSE

1/4" x 150", 100R1

2шт.

108

BN54149

HOSE,0.25" ID x 132.00", SAE 100R1

1шт.

109

BN55113

HOSE

1/4" x 144", 100R1

2шт.

110

BN54150

HOSE,0.25" ID x 110.00", SAE 100R1

Assembly

2шт.

111

BN54152

HOSE,0.25" ID x 42.00", SAE 100R1

Assembly

1шт.

112

BN54211

HOSE

1/4" x 132", long 90° elbow

1шт.

113

BN54212

HOSE

1 /4" x 42", long 90° elbow

1шт.
