Запчасти Case IH PATRIOT WT (06-004) - HYDRAULIC PLUMBING - WHEEL MOTORS Hydraulic Plumbing

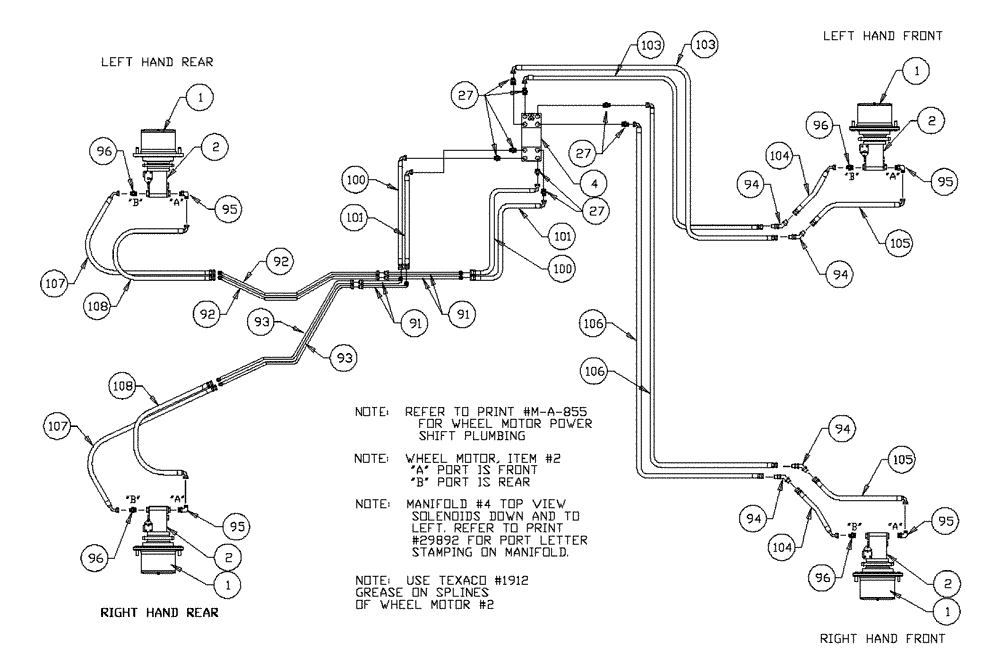

Схема запчастей Case IH PATRIOT WT - (06-004) - HYDRAULIC PLUMBING - WHEEL MOTORS Hydraulic Plumbing
96
1
93
92
95
107
2
105
95
105
91
27
1
94
93
96
27
96
4
95
2
94
95
27
100
2
94
103
91
92
104
1
101
107
106
96
94
108
100
1
104
103
108
101
2
106

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Hub - Power Wheel

1шт.

See Fig. 05-001 for Seals & Repair Parts

1шт.

1a

NSS

NOT SOLD SEPARAT

Cap - Hub Cover

4шт.

See Fig. 05-001

1шт.

2

NSS

NOT SOLD SEPARAT

Wheel Motor

4шт.

See Fig. 05-001

1шт.

4

NSS

NOT SOLD SEPARAT

Valve - Manifold

1шт.

See Fig. 06-012 For Seal & Repair Parts

1шт.

27

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

8шт.

27a

BN98016

O-RING

SAE-16 Buna N

8шт.

Associated Part of Adapter STR - 1-5/16-12 O-Ring x 1-1/16-12 JIC, P/N 21417

1шт.

91

BN24931

TUBE

steel, 3/4" front

4шт.

92

BN24932

TUBE

steel, 3/4" LH, rear

2шт.

93

BN24933

TUBE

steel, 3/4" RH, rear

2шт.

94

BN53959

ELBOW

Fitting - 45° Bulkhead 3/4" JIC

4шт.

95

BN53927

ADAPTER

90º 16 O-Ring-12 JIC

4шт.

96

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

4шт.

100

BN53691

HOSE

3/4" x 22", high pressure

2шт.

101

BN53694

HOSE

3/4" x 27", high pressure

2шт.

103

BN55105

HOSE

3/4" x 145", high pressure

2шт.

104

BN58123

HOSE

3/4" x 24", high pressure

2шт.

105

BN58110

HYDRAULIC HOSE,19.05mm ID x 774.7mm L

High pressure

2шт.

106

BN58111

HOSE,19.05mm ID x 3530.6mm L

3/4" x 139", high pressure

2шт.

107

BN58112

HOSE

3/4" x 106 1/2", high pressure

2шт.

108

BN58113

HOSE

3/4" x 108", high pressure

2шт.

Выбрано товаров: 25
