Запчасти Case IH PATRIOT WT (06-001) - HYDRAULIC PLUMBING - BASIC UNIT Hydraulic Plumbing

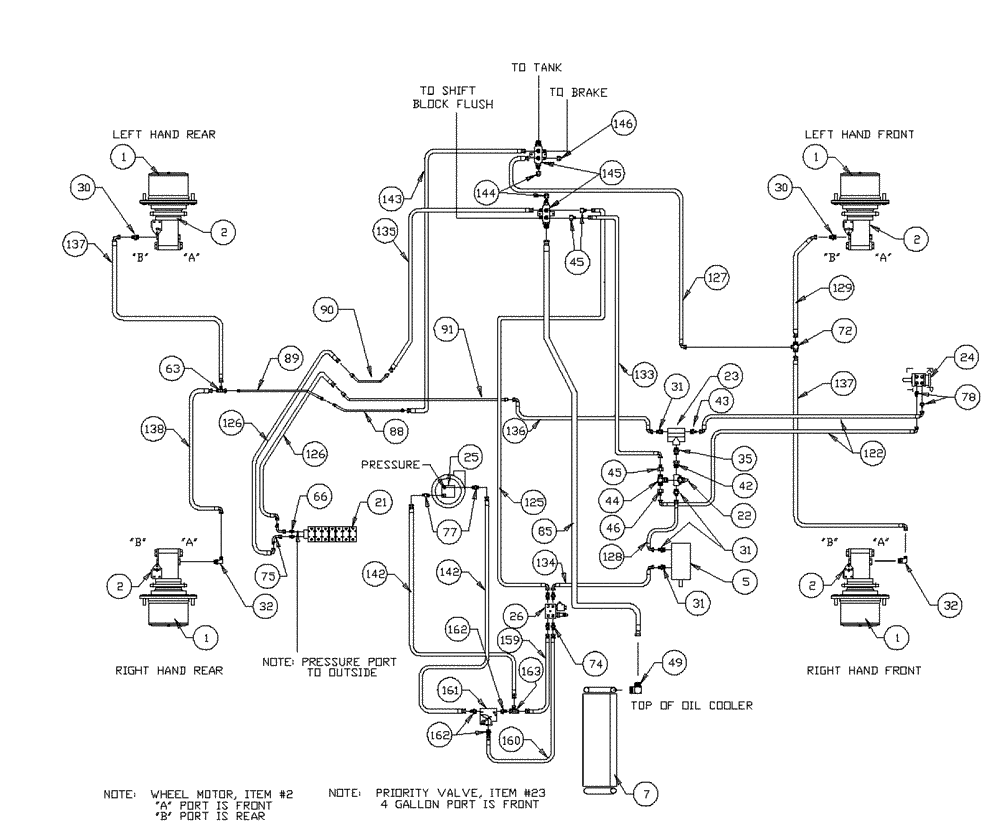

Схема запчастей Case IH PATRIOT WT - (06-001) - HYDRAULIC PLUMBING - BASIC UNIT Hydraulic Plumbing
145
142
129
31
35
44
89
31
7
90
122
25
66
162
160
138
126
1
85
1
74
162
2
49
63
126
42
135
144
5
77
32
1
30
32
161
72
137
146
78
26
45
125
23
75
137
88
31
127
1
2
134
143
45
142
30
133
22
128
159
163
136
91
43
46
21
24
2
2

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Hub - Power Wheel

1шт.

See Fig. 05-001 for Seals & Repair Parts

1шт.

1a

BN27372

CAP

hub cover

4шт.

2

BN25866

MOTOR,GEAR, 24.6 CC

wheel

4шт.

BN25866R

REMAN-HYD MOTOR

Patriot WT, 4/97 - 1/99,

4шт.

BN25866C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2a

BN54033

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

4шт.

Service Part of Ref. 2

1шт.

Between Hub & Wheel Motor

1шт.

2b

BN98186

SEAL

lip, shaft

4шт.

Service Part of Ref. 2

1шт.

5

BN67039

PUMP

Hydraulic Tandem CW Rotation

1шт.

90' Boom

1шт.

5a

BN98608

SEAL

shaft, for BN27195

1шт.

Service Part of Ref. 5

1шт.

90' Boom

1шт.

5b

BN98609

REPAIR KIT

1шт.

Service Part of Ref. 5

1шт.

90' Boom

1шт.

7

NSS

NOT SOLD SEPARAT

Cooler - Hydraulic Oil

1шт.

See Fig. 03-003

1шт.

21

NSS

NOT SOLD SEPARAT

Valve, 7-Bank

1шт.

See Fig. 06-008 for Seals & Repair Parts

1шт.

21a

BN25229

SHIELD

7 & 8 Bank Valve - Cover

1шт.

21b

BN25230

MOUNTING PLATE

7 & 8 Bank Valve Cover

1шт.

22

BN29234

VALVE PRESSURE RELIE,1-1/16" - 12

O-Ring Port

1шт.

23

BN29237

VALVE, PRESSURE RELI

EF Priority, 4.5 Gallons @ 150

1шт.

24

NSS

NOT SOLD SEPARAT

Orbitrol - Steering Control

1шт.

25

NSS

NOT SOLD SEPARAT

Pump - Sprayer

1шт.

See Fig. 09-002 for Seal & Repair Parts

1шт.

26

BN29970

MANIFOLD

Solenoid & Relief Valve

1шт.

26a

BN95962

KIT seal

1шт.

Service Part of Ref. 26

1шт.

26b

BN95744

CARTRIDGE

1шт.

Service Part of Ref. 26

1шт.

26c

BN95745

COIL

solenoid valve

1шт.

Service Part of Ref. 26

1шт.

26d

BN98239

VALVE PRESSURE RELIE

1шт.

Service Part of Ref. 26

1шт.

30

BN67864

ADAPTER

1-1/16"-12 O-ring x 7/8-14 JIC

2шт.

30a

BN98017

O-RING

SAE-12 Buna N

2шт.

Associated Part of Adapter 1-1/16"-12 O-Ring x 7/8-14 JIC, P/N 67864

1шт.

31

BN444003

FITTING

Adapter Str.-1 1/16-12 O-Ring x 3/4-16 JIC

4шт.

31a

BN98017

O-RING

SAE-12 Buna N

6шт.

Associated Part of Adapter STR - 1-1/16-12 O-Ring x 3/4-16 JIC, P/N 444003

1шт.

32

BN67865

ELBOW

90°, 1-1/16"-12 O-ring x 7/8"-14 JIC

2шт.

32a

BN98017

O-RING

SAE-12 Buna N

2шт.

Associated Part of Adapter, 90° 1-1/16"-12 O-Ring x 7/8-14 JIC, P/N 67865

1шт.

35

BN444001

FITTING

STR - 1-1/16"-12 O-Ring x 1-1/16-12 JIC

1шт.

35a

BN98017

O-RING

SAE-12 Buna N

1шт.

Associated Part of Adapter, STR - 1-1/16"-12 O-Ring x 1-1/16-12 JIC, P/N 444001

1шт.

42

BN57224

FITTING

STR - 1-1/16"-12 O-Ring x 1-1/16-12 JIC

1шт.

42a

BN98017

O-RING

SAE-12 Buna N

1шт.

Associated Part of Adapter, STR - 1-1/16"-12 O-Ring x 1-1/16-12 JIC, P/N 57224

1шт.

43

BN57225

FITTING

STR - 1-1/16"-12 O-Ring x 9/16-18 JIC

1шт.

43a

BN98017

O-RING

SAE-12 Buna N

1шт.

Associated Part of Adapter, STR - 1-1/16"-12 O-Ring x 9/16-18 JIC, P/N 57225

1шт.

44

BN446032

TEE

1-1/16"-12 O-Ring x 1-1/16-12 JIC

1шт.

44a

BN98017

O-RING

SAE-12 Buna N

1шт.

Associated Part of Tee - 1-1/16"-12 O-Ring x 1-1/16-12 JIC, P/N 446032

1шт.

45

BN53715

REDUCER

1-1/16"-12 Female JIC x 3/4-16 Male JIC

1шт.

46

BN53716

FITTING

Reducer - 1-1/16"-12 Female JIC x 9/16-18 Male JIC

1шт.

49

BN67881

ADAPTER

90º 1" NPT x #16 JIC

1шт.

63

BN69126

TEE

1-1/16"-12 x 7/8-14 JIC

1шт.

66

BN60440

ADAPTER

STR - 9/16"-18 O-Ring x 3/4-16 JIC

2шт.

66a

BN98019

O-RING

#6

2шт.

Associated Part of Adapter, STR - 9/16"-18 O-Ring x 3/4-16 JIC, P/N 60440

1шт.

72

BN22159

TEE

3/4-16 37°

1шт.

74

BN444004

FITTING

4шт.

74a

BN98018

O-RING

#8

4шт.

Associated Part of Adapter, STR - 3/4"-16 O-Ring x 3/4-16 JIC, P/N 444004

1шт.

75

BN53707

FITTING

90° 3/4-16 JIC

2шт.

77

BN441006

ADAPTER

1/2 NPT-8 JIC

2шт.

78

BN57226

ADAPTER

3/4-16 O-Ring x 9/16-18 JIC

2шт.

78a

BN98018

O-RING

#8

2шт.

Associated Part of Adapter - 3/4"-16 O-Ring x 9/16-18 JIC, P/N 57226

1шт.

85

BN69783

HOSE

1" ID X 66", 100R3

1шт.

86

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

88

BN67650

HYD TUBE

Steel, 3/4", 2350 PSI

1шт.

89

BN67649

HYD TUBE

Steel, 3/4", 2350 PSI

1шт.

90

BN66214

TUBE ASSY.

Steel, 1/2"

1шт.

91

BN65101

TUBE

steel, 1/2"

1шт.

122

BN68815

PLATE

Assembly - 3/8" x 80"

2шт.

125

BN58116

HOSE,0.50" ID x 31.00"

1шт.

126

BN53818

HOSE

1/2" ID x 66", 100R2

2шт.

127

BN69595

HOSE

3/4" x 64" 100R1

1шт.

128

BN55330

HOSE

Assembly - 1/2" x 32"

1шт.

129

BN67866

HOSE

5/8" x 130", 100R1

2шт.

133

BN54170

HOSE

1/2" x 74"

1шт.

134

BN54172

HOSE

1/2" ID x 90" 100R2

1шт.

135

BN58114

HOSE,0.50" ID x 13.00"

1шт.

136

BN54186

HOSE

1/2" x 30"

1шт.

137

BN67867

HOSE

5/8" x 130", 100R1

2шт.

138

BN67868

HOSE

Assembly - 5/8" x 120"

1шт.

142

BN54192

Assembly - 1/2" x 42"

2шт.

143

BN67874

HOSE ASSY.

Assembly - 3/4" x 22"

1шт.

144

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

2шт.

145

BN67245

MANIFOLD

Hyd. Return

2шт.

146

BN22431

CROWN NUT,3/4"-16, 37 Degree

1шт.

159

BN53728

HOSE

Assembly - 1/2" x 56"

1шт.

700 S.S. & 750 Elliptical

1шт.

159a

BN55327

HOSE

Assembly - 1/2" x 26"

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

750 Spherical

1шт.

160

BN55326

HOSE

Assembly - 1/2" x 16"

1шт.

750 Spherical

1шт.

160a

BN55328

Hose Assembly - 1/2" x 39"

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

700 S.S.

1шт.

160b

BN55331

HOSE

Assembly - 1/2" x 50"

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

750 Elliptical

1шт.

161

BN65468

REGULATOR

Flow

1шт.

162

BN444008

FITTING

37° Flare

3шт.

163

BN53452

TEE

JIC 3/4-16 Male-Female

1шт.

Выбрано товаров: 115
