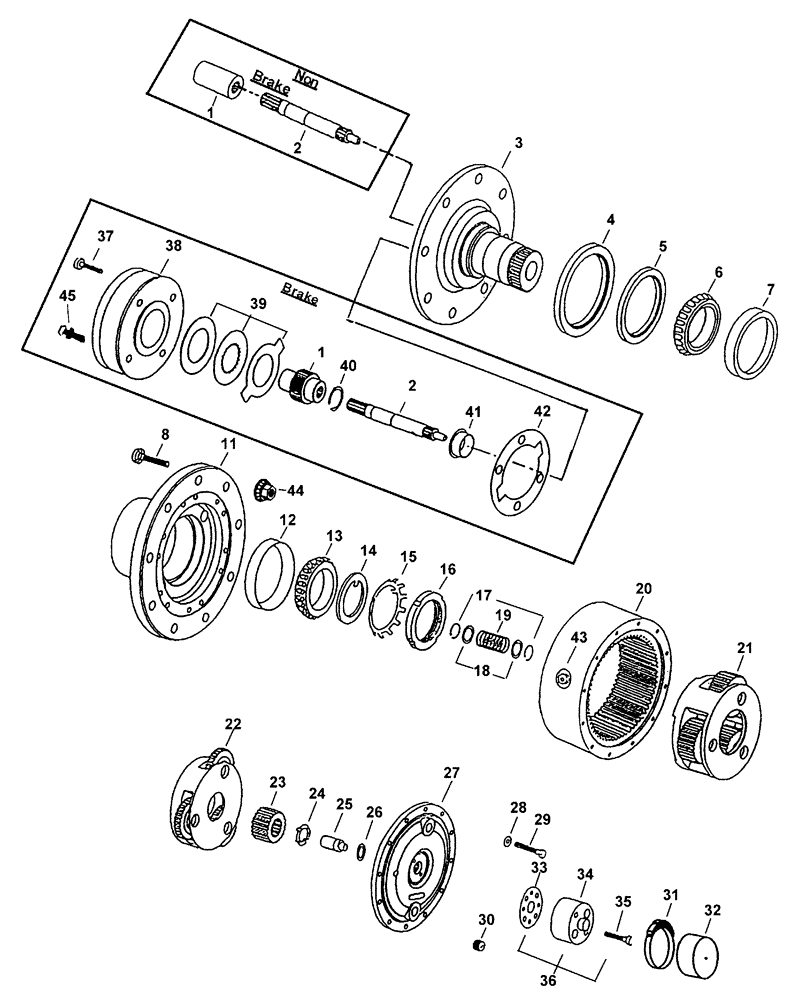

Запчасти Case IH PATRIOT WT (05-001) - POWER WHEEL HUB (AUBURN) MODEL 8 Hub, Wheel & Tires

1

BN98822

COUPLING

Non Brake

1шт.

1

BN98488

COUPLING

Brake Unit

1шт.

2

BN98842

SHAFT

Input, 152mm OAL, 12 Teeth on Small End, 13 Teeth on Large End

1шт.

3

BN98821

SPINDLE

#8B

1шт.

3

BN98820

SPINDLE

(Brake)

1шт.

4

BN98817

SEAL

trash

1шт.

5

BN98810

SEAL

oil

1шт.

6

BN98812

ROLLER BEARING

1шт.

7

9823418

BEARING CUP,130mm OD x 24mm W

1шт.

8

BN98840

BOLT

wheel #8B hub

10шт.

11

BN98836

HUB

1шт.

12

BN98825

BEARING CUP

1шт.

13

BN98826

ROLLER BEARING

1шт.

14

BN98844

THRUST WASHER

1шт.

15

BN98818

LOCK WASHER

1шт.

16

BN98829

LOCK NUT

Bearing

1шт.

17

BN98827

RING

retaining

2шт.

18

BN98843

WASHER

thrust

2шт.

19

BN98830

SPRING

1шт.

20

BN98832

RING GEAR

(81 Teeth) 34:1 Non Brake, Serial Range: -1772

1шт.

20

BN98831

RING GEAR

(76 Teeth) 17:1 With Brake, Serial Range: -1772

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

21

BN98846

CARRIER

Secondary Assembly 34:1 Non Brake (3 gears, 31 Teeth), Serial Range: -1772

1шт.

Must be Replaced as Assemblies, it Cannot be Rebuilt

1шт.

21

BN98849

CARRIER

Secondary Assembly 17:1 With Brake (3 gears, 25 Teeth), Serial Range: -1772

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

22

BN98845

CARRIER

Primary Assembly - 34:1 Non Brake (3 gears, 33 teeth each) (Secondary sun gear - 18 teeth), Serial Range: -1772

1шт.

Must be Replaced as Assemblies, it Cannot be Rebuilt

1шт.

22

BN98848

CARRIER

Primary Assembly - 17:1 With Brake (3 gears-28 teeth each) (Secondary sun gear - 26 teeth), Serial Range: -1772

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

23

BN98834

SUN GEAR

Primary 34:1 Non Brake (15 teeth), Serial Range: -1772

1шт.

23

BN98833

SUN GEAR

Primary 17:1 With Brake (20 teeth), Serial Range: -1772

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

20

BN69527

RING GEAR

(85 Teeth) 30:1 Non Brake, Start Serial: 1773

1шт.

21

BN69528

CARRIER

Secondary Ass'v 30:1 Non Brake (3 gears, 34 Teeth), Start Serial: 1773

1шт.

Must be Replaced as Assemblies, it Cannot be Rebuilt

1шт.

22

BN69530

CARRIER

primary assembly - 30:1 non brake (3 gears, 32 teeth each) (secondary sun gear - 17 teeth), Start Serial: 1773

1шт.

Must be Replaced as Assemblies, it Cannot be Rebuilt

1шт.

23

BN69533

SUN GEAR

primary 30:1 non brake (20 teeth), Start Serial: 1773

1шт.

23

BN69532

SUN GEAR

primary 22:1 with brake (21 teeth), Start Serial: 1773

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed Above

1шт.

24

BN98501

THRUST WASHER

1шт.

25

BN98728

PLUNGER

disengage

1шт.

26

BN98729

SEAL

plunger

1шт.

27

BN302055

COVER

hub - #8

1шт.

28

BN98494

WASHER

flat

12шт.

29

BN98838

BOLT

3/8-16 x 6-3/4", Thread Length 1-1/4", Hex Head

12шт.

30

BN98819

PLUG

pipe

1шт.

31

BN67578

CLAMP

plastic

1шт.

32

BN27372

CAP

hub cover

1шт.

33

BN69526

RING GEAR

(81 Teeth) 22:1 with Brake, Start Serial: 1773

1шт.

33

BN69529

CARRIER

Secondary Assembly 22:1 With Brake (3 gears, 30 Teeth), Start Serial: 1773

1шт.

33

BN69531

CARRIER

primary assembly - 22:1 with brake (3 gears-30 teeth each) (secondary sun gear - 21 teeth), Start Serial: 1773

1шт.

33

BN98506

GASKET

quick release hub

1шт.

34

BN98860

COUPLING

Quick Disconnect

1шт.

35

BN50561

Hex Head

2шт.

36

BN98850

COUPLING

Quick Disconnect Assy

1шт.

Includes Refs. 33, 34, 35

1шт.

37

BN98839

SCREW

Torx Head T-50 (Brake)

4шт.

38

BN66933

BRAKE

Piston Assembly

1шт.

39

BN98424

BRAKE

Disc Pack

1шт.

40

BN98828

SNAP RING

Retaining (Brake)

1шт.

41

BN98467

BUSHING

Sleeve (Brake)

1шт.

42

BN98801

GASKET

Brake

1шт.

43

BN98487

PLUG

magnetic

1шт.

44

BN52332

WHEEL NUT

Wheel - Flanged

10шт.

44a

BN98858

SEAL KIT

1шт.

Not Shown

1шт.

Includes Refs. 5, 15, 26 & 98809 Sealing Compound

1шт.

44b

BN98809

SEAL

Compound

1шт.

Not Shown

1шт.

44c

BN98859

WHEEL BEARING KIT

Bearing

1шт.

Not Shown

1шт.

Includes Refs. 5, 6, 7,12,13,15, & 26

1шт.

44d

BN66405

HUB

Power Complete Non Brake-Rear 34:1

1шт.

Not Shown

1шт.

44e

BN66402

HUB

Power Complete With Brake-Front 17:1

1шт.

Not Shown

1шт.

44f

BN69011

HUB

#8 Complete, Without Brake, Rear 30:1

1шт.

Not Shown

1шт.

44g

BN69039

HUB

Power Complete With Brake-Front 22:1

1шт.

Not Shown

1шт.

45

BN68545

BLEEDER

(Brake)

1шт.
