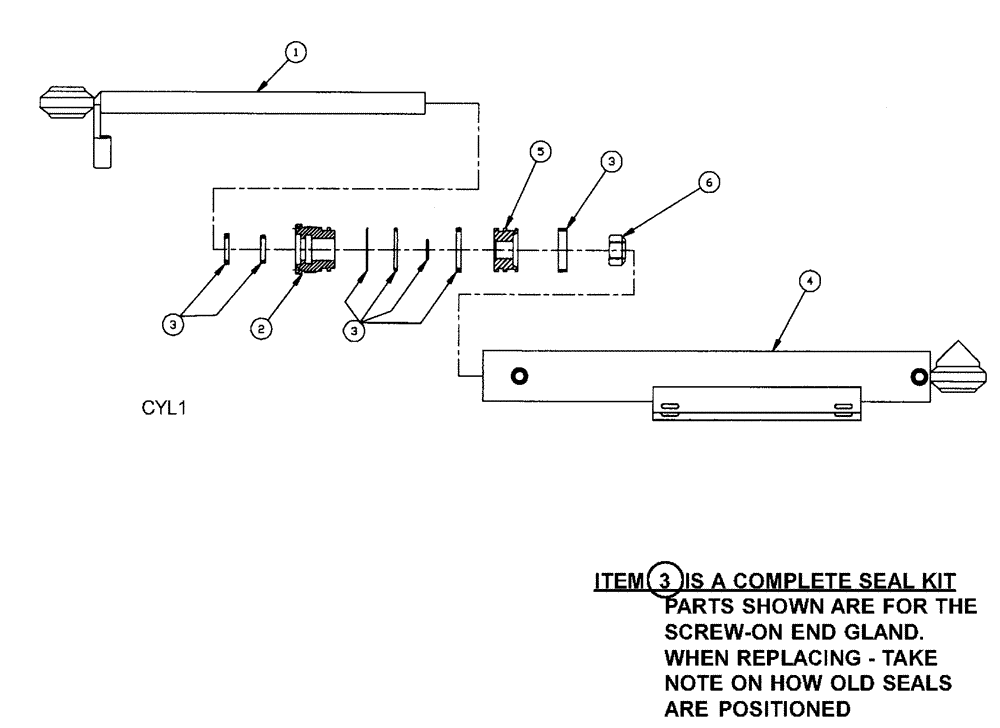

Запчасти Case IH PATRIOT WT (07-004) - HYDRAULIC CYLINDER - INNER BOOM FOLD (90 BOOM) (2.5" X 21.63" X 20") 1-1/4" DIA ROD Cylinders

0

BN324159

CYLINDER

Hydraulic (Complete) RH

1шт.

0

BN68750

CYLINDER ASSY.

Hydraulic (Complete) LH

1шт.

1

BN69903

SHAFT

RH

1шт.

1a

BN69904

SHAFT

LH

1шт.

Opposite side

1шт.

2

BN69786

GLAND

End

1шт.

3

BN69787

SEAL KIT

1шт.

4

BN69908

TUBE RH

1шт.

4a

BN69905

TUBE LH

1шт.

Opposite side

1шт.

5

BN69789

PISTON

1шт.

6

BN69790

LOCK NUT

1шт.
