(07-003) - HYDRAULIC CYLINDER - INNER BOOM FOLD (60 AND 75 BOOM) (2" X 20") 1-1/4" DIA ROD

Запчасти Case IH PATRIOT WT (07-003) - HYDRAULIC CYLINDER - INNER BOOM FOLD (60 AND 75 BOOM) (2" X 20") 1-1/4" DIA ROD Cylinders

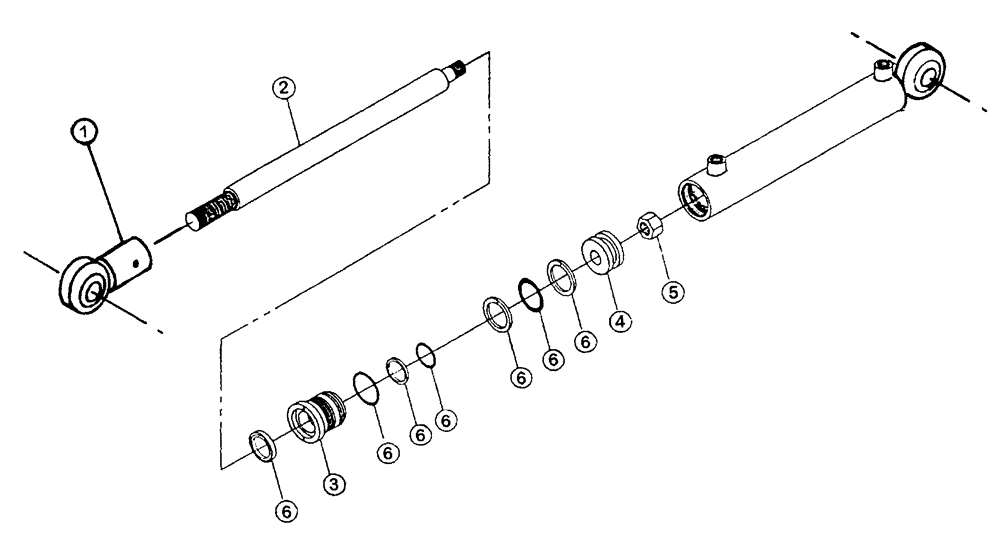

Схема запчастей Case IH PATRIOT WT - (07-003) - HYDRAULIC CYLINDER - INNER BOOM FOLD (60 AND 75 BOOM) (2" X 20") 1-1/4" DIA ROD Cylinders
6
6
1
4
6
5
6
6
6
2
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87271296

CYLINDER

Hydraulic w/Clevis (Complete)

1шт.

87271296R

REMAN-HYD CYLINDER

PATRIOT WT (4/97-1/99)

1шт.

87271296C

CORE-HYD CYLINDER

Return Number

1шт.

1

BN98291

ASSEMBLY

1шт.

2

BN98515

SHAFT

Rod - Cylinder

1шт.

3

BN98522

GLAND

End, For Cylinder BN52305

1шт.

4

BN98523

PISTON

for cylinder BN52305

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

BN68490

SEAL KIT

1шт.

Выбрано товаров: 9
