(07-001) - HYDRAULIC CYLINDER - AXLE ADJUST [(2-1/2" X 16") 1-1/4" DIA ROD]

Запчасти Case IH PATRIOT WT (07-001) - HYDRAULIC CYLINDER - AXLE ADJUST [(2-1/2" X 16") 1-1/4" DIA ROD] Cylinders

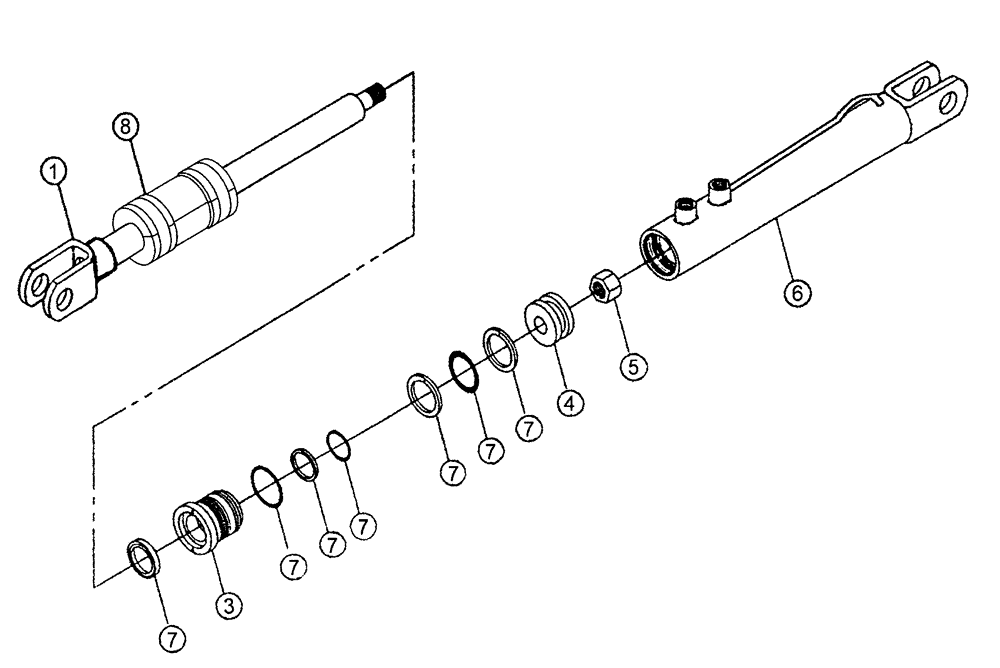

Схема запчастей Case IH PATRIOT WT - (07-001) - HYDRAULIC CYLINDER - AXLE ADJUST [(2-1/2" X 16") 1-1/4" DIA ROD] Cylinders
3
6
1
7
5
4
8
7
7
7
7
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87271293

CYLINDER

Hydraulic, Axle Adjust With Adaptor

1шт.

1

BN98550

ROD

1шт.

3

BN98650

GLAND

End

1шт.

4

BN98651

PISTON

For Cylinder BN25486

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

Ask

Tube

1шт.

7

BN98643

SEAL KIT

Hyd. Cylinder (53906)

1шт.

8

342274A1

STOP DEVICE

Cylinder, 1.25" id x 2"

12шт.
