Запчасти Case IH PATRIOT WT (01-002) - GAUGES, ELECTRICAL Cab Interior

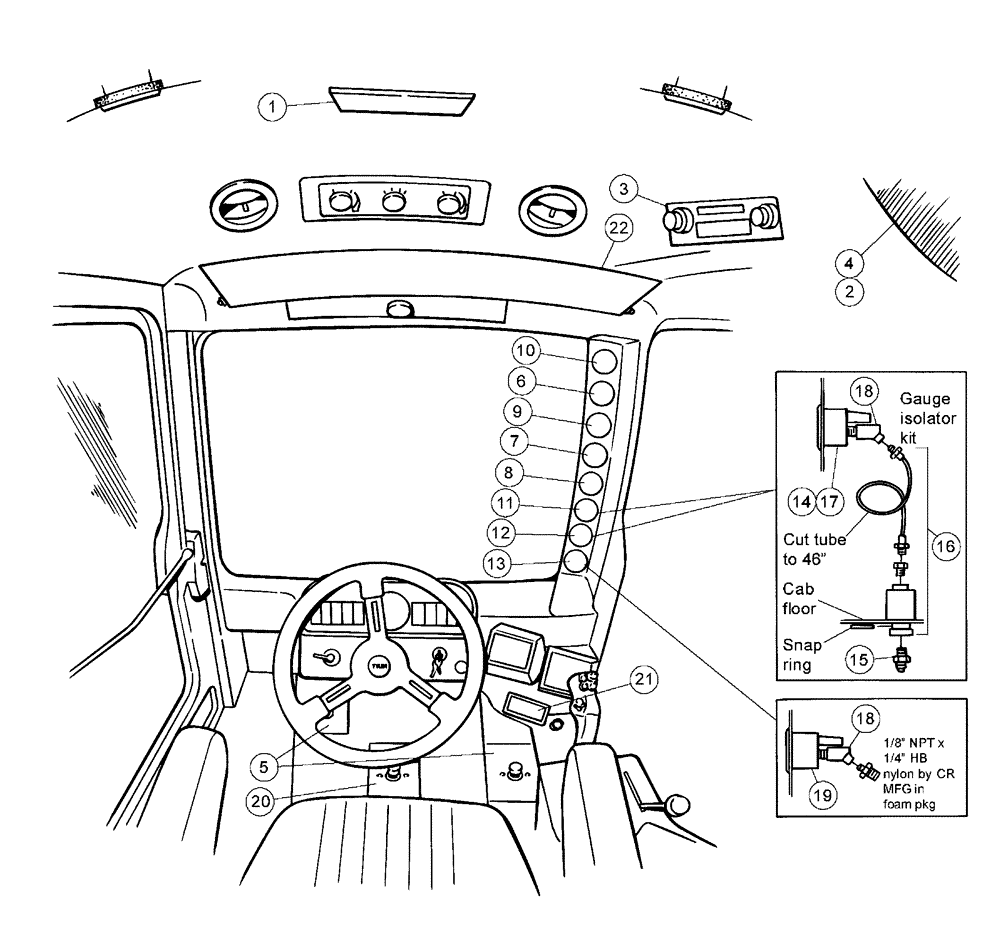

Схема запчастей Case IH PATRIOT WT - (01-002) - GAUGES, ELECTRICAL Cab Interior
3
18
1
4
10
22
21
8
19
18
14
2
20
7
16
9
6
11
5
13
12
15
17

Артикул

Название

Примечание

Количество

1

BN67967

CEILING LAMP

Dome, 12V Polycarb

1шт.

1a

BN300876

BULB

Dome, 12 volt

1шт.

Service Part of Ref. 1

1шт.

2

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

8шт.

3

BN57219

RADIO

AM/FM/Cassette 12V

1шт.

3a

BN57222

ANTENNA

Radio

1шт.

Associated Part of AM/FM/Cassette 12V Radio, P/N 57219

1шт.

3b

BN69006

BRACKET

Radio Antenna

1шт.

Associated Part of AM/FM/Cassette 12V Radio, P/N 57219

1шт.

3c

BN50051

NUT,1/4"-20, USR

1шт.

Associated Part of AM/FM/Cassette 12V Radio, P/N 57219

1шт.

3d

BN50205

BOLT

1/4"-20 x .625 TH, SS

5шт.

Associated Part of AM/FM/Cassette 12V Radio, P/N 57219

1шт.

3e

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

2шт.

Associated Part of AM/FM/Cassette 12V Radio, P/N 57219

1шт.

4

BN57220

SPEAKER

Speaker - JVC (Set of 2)

1шт.

5

BN29522

SWITCH

Dimmer Floor Mount

1шт.

5a

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

Associated Part of Floor Mount Dimmer Switch, P/N 29522

1шт.

5b

BN50051

NUT,1/4"-20, USR

2шт.

Associated Part of Floor Mount Dimmer Switch, P/N 29522

1шт.

5c

50446

BOLT Hex, 1/4"-20 x 1 1/4", G5

2шт.

Associated Part of Floor Mount Dimmer Switch, P/N 29522

1шт.

5d

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

Associated Part of Floor Mount Dimmer Switch, P/N 29522

1шт.

5e

BN50205

BOLT

1/4"-20 x .625 TH, SS

4шт.

Associated Part of Floor Mount Dimmer Switch, P/N 29522

1шт.

6

BN67301

FUEL GAUGE

level 12V, N.G.

1шт.

6a

BN301818

BULB

12V (1.12" Long)

1шт.

Service Part of Ref. 6

1шт.

7

BN67302

ELECTRICAL GAUGE

Temperature, 280 Degree 12V N.G.

1шт.

7a

BN301818

BULB

12V (1.12" Long)

1шт.

Service Part of Ref. 7

1шт.

8

BN67303

ELECTRICAL GAUGE

oil pressure, 100 psi

1шт.

8a

BN301818

BULB

12V (1.12" Long)

1шт.

Service Part of Ref. 8

1шт.

9

BN67304

ELECTRICAL GAUGE

Volt 12 VDC/10-16

1шт.

9a

BN301818

BULB

12V (1.12" Long)

1шт.

Service Part of Ref. 9

1шт.

10

BN67306

SENDER UNIT

(Black)

1шт.

11

BN68268

GAUGE

Assy - Boom pressure, Incl. Ref items 14, 15, 16 & 18

1шт.

12

BN68269

GAUGE

Assy, Sparge Pressure, Incl. Ref items 15, 16, 17 & 18

1шт.

13

BN68270

ELECTRICAL GAUGE

Assembly - Gauge Foam Pressure (Includes Ref 18 & 19)

1шт.

14

BN67308

GAUGE

boom pressues, 0-200

1шт.

14a

BN301819

BULB

12V (Short-1.06")

1шт.

Bulb, P/N 301819 (1.06" long) must be used in pressure gauges for Ref 14, 17 and 19 because of internal interference with a longer bulb

1шт.

Service Part of Ref. 14

1шт.

15

BN441001

ADAPTER

pipe-37 Flare, 06-04

2шт.

16

BN67300

ISOLATOR

Gauge - Isolator Kit

2шт.

17

BN68255

GAUGE

Sparge Pressure, 0 - 200

1шт.

17a

BN301819

BULB

12V (Short-1.06")

1шт.

Bulb, P/N 301819 (1.06" long) must be used in pressure gauges for Ref 14, 17 and 19 because of internal interference with a longer bulb

1шт.

Service Part of Ref. 17

1шт.

18

BN68256

ELBOW

45º 1/8 NPT - Female

3шт.

19

BN67307

ELECTRICAL GAUGE

Foam Pressure, 0 - 80

1шт.

19a

BN301819

BULB

12V (Short-1.06")

1шт.

Bulb, P/N 301819 (1.06" long) must be used in pressure gauges for Ref 14, 17 and 19 because of internal interference with a longer bulb

1шт.

Service Part of Ref. 19

1шт.

20

BN68440

SWITCH

Plumbing Bypass

1шт.

20a

BN29807

SPACER

9/16" OD x 12 GA x 1/2"

2шт.

Associated Part of Plumbing Bypass Switch, P/N 68440

1шт.

20b

BN50051

NUT,1/4"-20, USR

2шт.

Associated Part of Plumbing Bypass Switch, P/N 68440

1шт.

20c

50446

BOLT Hex, 1/4"-20 x 1 1/4", G5

2шт.

Associated Part of Plumbing Bypass Switch, P/N 68440

1шт.

20d

BN67593

COVER

12 GA HRS 5.5 x 6.5

1шт.

Associated Part of Plumbing Bypass Switch, P/N 68440

1шт.

21

BN66127

ASH TRAY

1шт.

22

BN67055

SUN VISOR

Plastic, 33"

1шт.

22a

BN50146

WASHER,3/8", Stainless

2шт.

Associated Part of Plastic 33" Sun Visor, P/N 67055

1шт.

22b

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

Associated Part of Plastic 33" Sun Visor, P/N 67055

1шт.

22c

231-4144

NUT,1/4"-20, GB

2шт.

Associated Part of Plastic 33" Sun Visor, P/N 67055

1шт.

Выбрано товаров: 75
