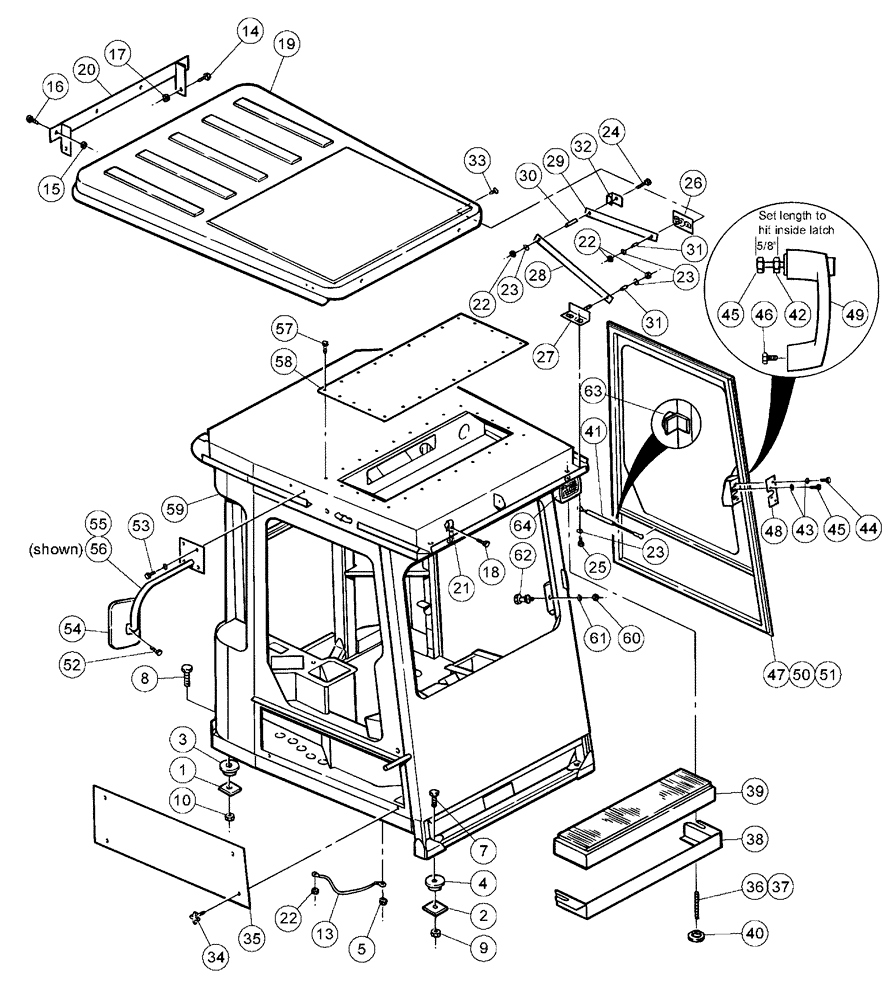

Запчасти Case IH PATRIOT WT (02-001) - CAB EXTERIOR Cab Exterior

1

BN63818

WASHER,20.57mm ID x 69.85mm OD x 4.76mm Thk

7 GA 304 .81 x 2.75

4шт.

2

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

2шт.

3

BN29242

ISOLATOR

Rubber 3/4" Bore

2шт.

4

BN29243

ISOLATOR

Rubber 1/2" Bore

2шт.

5

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

1шт.

6

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

1шт.

7

50792

BOLT Hex, 1/2"-13 x 5", G8

2шт.

8

BN50988

BOLT

HH, 3/4"-10 x 3.5, G8

2шт.

9

BN50998

LOCK NUT

1/2-13 Top, 8, PL

2шт.

10

BN50999

LOCK NUT

3/4-10 Top, 8, PL

2шт.

13

BN69830

GROUND CABLE

Chassis

2шт.

14

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

15

BN50052

LOCK NUT,1/4"-20, USR, SS

4шт.

16

BN50207

BOLT

1/4-20 x .75, TH, SS

4шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

18

BN50873

BOLT

3/8 x 3/4, TH, SS

2шт.

19

BN311759

ROOF

Cab (Red)

1шт.

20

BN67226

HINGE

Half

1шт.

21

BN69828

NUT

U, 3/8-16

2шт.

22

BN50051

NUT,1/4"-20, USR

3шт.

23

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

8шт.

24

50446

BOLT Hex, 1/4"-20 x 1 1/4", G5

1шт.

25

50805

FITTING,Hex, 1/4"-20 x 3/8", G5, Full Thd

BOLT

2шт.

26

BN68325

PLATE

Upper

1шт.

27

BN68326

PLATE

Lower

1шт.

28

BN68327

SUPPORT

Brace Lower

1шт.

29

BN68328

SUPPORT

Brace Upper

1шт.

30

BN68329

BUSHING

1шт.

31

BN68330

BUSHING

2шт.

32

BN68331

STOP LOCK

1шт.

33

BN68430

1/4-20 x 3/8, 2, TH

2шт.

34

BN29392

KNOB

3" With 3/8"-16 Female Thread

4шт.

35

BN68405

PANEL

Side Access

1шт.

35a

BN29964

RUBBER SEAL

RUBBER SEAL Weatherstrip 1/4" x 3/4" x 41"

2шт.

Associated Part of Side Access Panel, P/N 68405

1шт.

35b

84167815

RUBBER SEAL

Electrical Bay, Bulk Length 9'

2шт.

Associated Part of Side Access Panel, P/N 68405

1шт.

36

BN22055

ROD

3/8"-16, x 2.38, SS, Threaded

2шт.

37

BN50062

LOCK NUT,3/8"-16, Stainless Steel

4шт.

38

BN65271

RETAINER

Filter

1шт.

39

BN65288

FILTER

Air (Active Charcoal)

1шт.

40

BN65448

KNOB

3/8"-16 (F)

2шт.

40a

BN67932

DOOR ASSY.

Entry LH

1шт.

Includes Refs. 41 - 51

1шт.

41

BN29434

GAS STRUT

Cylinder Kit - Charged - Door (Complete)

1шт.

41a

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

2шт.

Service Part of Ref. 41

1шт.

41b

BN24120

CLIP, SPRING

Gas Cylinder

2шт.

Service Part of Ref. 41

1шт.

42

BN50053

NUT

Hex, 1/4"-20, G5

1шт.

43

BN50138

WASHER,1/4", SS

4шт.

44

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

2шт.

45

50214

BOLT Hex, 1/4"-20 x 1", G5

3шт.

46

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

47

BN66026

DOOR

1шт.

48

BN66103

LATCH

door, two rotor

1шт.

49

BN66106

HANDLE

(Door) Outside

1шт.

50

BN67951

CAP

Vinyl, .060 x .437 x 1.5

1шт.

51

BN67957

DOOR SEAL

Clip On 190"

1шт.

52

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

53

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

54

BN66128

MIRROR

Stud Mount - 7.5 x 10.5

2шт.

55

BN67557

MIRROR ARM

LH

1шт.

56

BN67558

MIRROR ARM

RH

1шт.

Shown

1шт.

57

50366

BOLT Hex, 3/8"-18 x 5", G5

24шт.

58

BN68424

Roof - Access Panel

1шт.

58a

BN301707

SEAL

Foam 1/4 X 12" X 28"

1шт.

Associated Part of Roof - Access Panel, P/N 68424

1шт.

58b

BN29962

RUBBER SEAL

Weatherstrip 1/4" x 3/4" x 17 1/4"

2шт.

Associated Part of Roof - Access Panel, P/N 68424

1шт.

58c

BN29964

RUBBER SEAL

RUBBER SEAL Weatherstrip 1/4" x 3/4" x 41"

2шт.

Associated Part of Roof - Access Panel, P/N 68424

1шт.

59

BN65970

CAB

1шт.

60

BN50114

NUT

7/16"-14 Hex, G5

1шт.

61

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

62

BN66109

CATCH

Striker (Door)

1шт.

63

BN69132

EXTENSION

Switch, Domelight

1шт.

64

BN66131

WORK LAMP,Halogen, 12V, 55W, Clear

Flood - Pedestal Mount

6шт.

64a

BN300873

BULB

Halogen, H3 12 volt

6шт.

Service Part of Ref. 64

1шт.

64b

BN53812

STRAP

21.5" Plastic Tie-B

3шт.

Not Shown

1шт.

64c

BN570007

STRAP

Black, 14-1/2" Long

100шт.

Not Shown

1шт.
