Запчасти Case IH PATRIOT WT (10-002[01]) - EXTERIOR DECALS (13) - DECALS

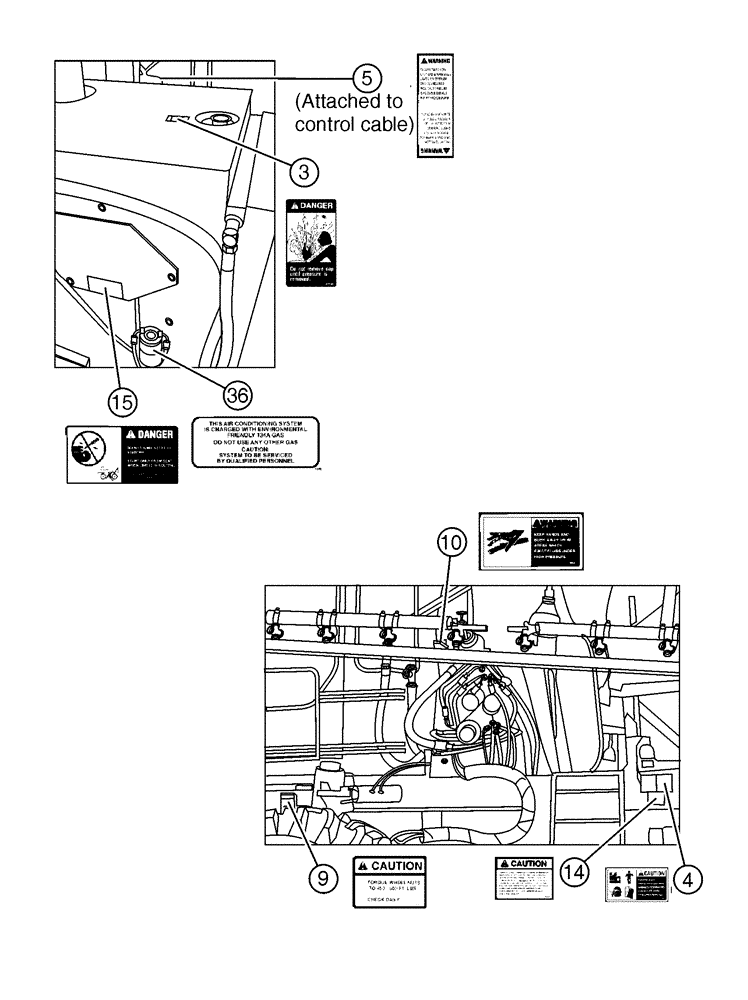

Схема запчастей Case IH PATRIOT WT - (10-002[01]) - EXTERIOR DECALS (13) - DECALS
4
15
10
14
3
36
9
5

Артикул

Название

Примечание

Количество

0

BN68045

Package, Decal - PAT WT- NCB

1шт.

1

BN11886A

DECAL

Caution - Do Not Ride

1шт.

2

BN12429A

DECAL

Caution - Service Manual

1шт.

3

BN21723B

DECAL

Danger - Tank Pressure, M25

1шт.

4

BN23877

CAUTION DECAL

Chemical

1шт.

5

BN24146

DECAL

Warning - Control Cable

2шт.

6

BN25179

DECAL

Safety Pin - Center Boom - 770

1шт.

7

BN25214

DECAL

Caution - Ladder Up-Rev

1шт.

8

BN29369

DECAL

Made By Tyler

1шт.

9

BN66809

WHEEL NUT

Caution - Wheel Nut

4шт.

10

BN29646

DECAL

Warning - Fluid Presssure

1шт.

11

BN29773

REFLECTOR

Rectanguler Amber

4шт.

12

BN29774

REFLECTOR

Rectangular Red

4шт.

13

BN63961

DECAL

Hydraulic Fluid Patriots

1шт.

14

BN63998

DECAL

Caution - Chemicals

2шт.

15

BN65207

DECAL

Caution (Jump Start) - PAT

1шт.

16

BN65208

DECAL

Tag - Safety Alert (Start) Pat

1шт.

17

BN65285

DECAL

Add Hydraulic Oil - Sight

1шт.

17a

BN69780

Package - Decal - Cab EXT (WT) - NCB

1шт.

18

BN400324A

DECAL

Diesel - Fuel Warning

1шт.

19

BN54145

DECAL

Tyler (Die Cut) Mert

1шт.

20

BN69761

DECAL

Patriot (LW Case) - NCB

1шт.

21

BN69762

DECAL

Tyler (3") - NCB

1шт.

22

BN69763

DECAL

RH Hood (graphic) - NCB

1шт.

23

BN69764

DECAL

LH Hood (graphic) - NCB

1шт.

24

BN69765

DECAL

Stripe (Lower Door) - NCB

2шт.

25

BN69766

DECAL

Stripe (RR Cab) - NCB

2шт.

26

BN69767

DECAL

RH Stripe (Hood) - NCB

1шт.

27

BN69768

DECAL

LH Stripe (Hood) - NCB

1шт.

28

BN69769

DECAL

Stripe(Mid Door) - NCB

2шт.

29

BN69770

DECAL

RH Stripe (Roof) - NCB

1шт.

30

BN69771

DECAL

LH Stripe (Roof) - NCB

1шт.

31

BN69774

DECAL

WT (Roof) - NCB

2шт.

32

BN69775

DECAL

WT (Hood) - NCB

2шт.

33

BN69778

DECAL

Tp Hood (Graphic) - NCB

1шт.

35

BN63915

DECAL

Caution - Foam Mixing

1шт.

36

BN301704

DECAL

Charge With 134A Gas

1шт.

36a

NSS

NOT SOLD SEPARAT

Caution - Strainer Pressure

3шт.

Not Shown

1шт.

See Fig. 10-020

1шт.
