Запчасти Case IH PATRIOT WT (12-003) - CONTROLLER - RAVEN (06) - ELECTRICAL

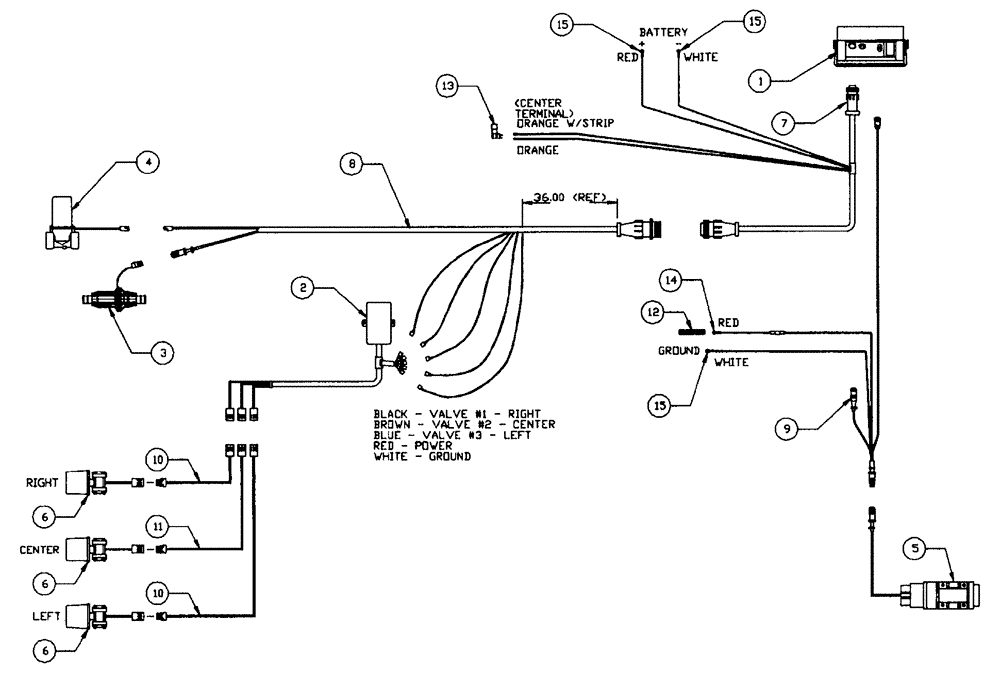

Схема запчастей Case IH PATRIOT WT - (12-003) - CONTROLLER - RAVEN (06) - ELECTRICAL
15
6
15
4
6
10
8
2
5
14
1
6
7
10
13
11
12
9
3
15

Артикул

Название

Примечание

Количество

1

BN24515

CONSOLE

SCS440

1шт.

2

BN24521

RELAY

3 Boom Interface

1шт.

3

87378188

REPAIR KIT

Raven RFM60 Flow Meter With Adaptor Harness

1шт.

3a

BN25995

REPAIR KIT

Transducer

1шт.

Associated Part of Flow Meter Valve, P/N 24520

1шт.

3b

BN25996

O-RING

Small

1шт.

Associated Part of Flow Meter Valve, P/N 24520

1шт.

3c

BN25997

O-RING

Large

1шт.

Associated Part of Flow Meter Valve, P/N 24520

1шт.

4

BN302855

VALVE

1 1/2" 440 Assembly

1шт.

5

BN95030A

RADAR

Sensor - Ground Speed

1шт.

5

BN95030AR

SENSOR

PATRIOT WT SPRAYER, Sensor Ground Speed (4/97-1/99)

1шт.

5

BN95030AC

CORE-SENSOR

Return Number

1шт.

6

NSS

NOT SOLD SEPARAT

Ball Valve

3шт.

See Liquid Plumbing

1шт.

7

BN24516

CABLE

Console, 3 Feet

1шт.

8

BN24517

CABLE

Flow Control

1шт.

9

BN24519

CABLE

Radar With AGC1 Fuse

1шт.

10

BN98398

Cable - 25 Feet, 3 Pin Extension

2шт.

11

BN98399

Cable - 10 Feet, 3 Pin Extension

1шт.

12

BN29444

BAR

Bus

1шт.

13

BN29522

SWITCH

Dimmer Floor Mount

1шт.

14

BN16122

TERMINAL

Terminal - #10 Ring

1шт.

15

BN16124

Terminal - 5/16" Ring

3шт.

15a

BN24524

MOUNT

Valve, Raven

1шт.

Not Shown

1шт.

Выбрано товаров: 26
