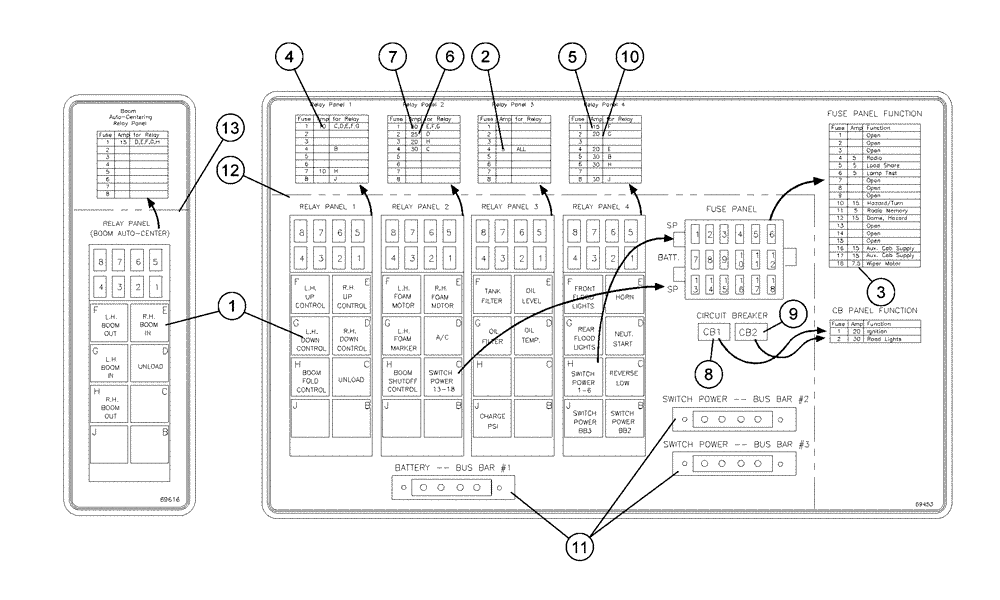

Запчасти Case IH PATRIOT WT (12-001) - FUSE AND RELAY PANEL (06) - ELECTRICAL

1

BN16287

RELAY

Hella, STDP 30A

31шт.

2

9623775

FUSE,5 Amp

5шт.

3

BN16303

FUSE

ATC, 7.5 Amp

1шт.

4

BN16304

FUSE

ATC, 10 Amp

2шт.

5

84090658

FUSE,Lt Blue, 15 Amp

15 Amp

6шт.

6

BN16306

FUSE

ATC, 25 Amp

1шт.

7

BN16307

FUSE

ATC, 30 Amp

5шт.

8

BN304962

CIRCUIT-BREAKER

20 Amp Type 1

1шт.

9

BN16309

CIRCUIT BREAKER

30 Amp T-1

1шт.

10

BN16311

FUSE

ATC, 20 Amp

3шт.

11

BN29444

BAR

Bus

3шт.

12

BN68488

MOUNTING PARTS

Fuse Relay

1шт.

13

BN68780

MOUNTING PARTS

Auto Centering

1шт.
