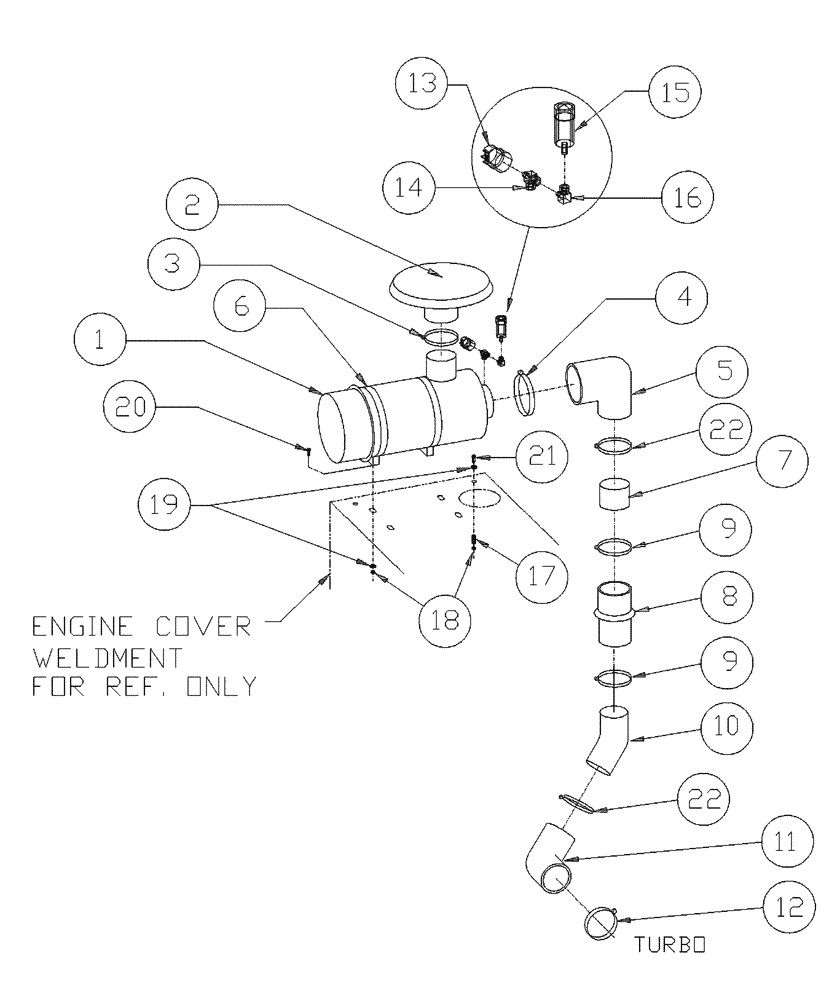

Запчасти Case IH PATRIOT WT (03-004) - AIR CLEANER (01) - ENGINE

1

BN25634

FILTER Air Cleaner Complete

1шт.

1a

BN63887

ELEMENT

Primary (Large)

1шт.

Service Part of Ref. 1

1шт.

1b

BN63888

ELEMENT

Safety (Small)

1шт.

Service Part of Ref. 1

1шт.

2

54-305

CAP

Hood, Air Inlet, With Clamp

1шт.

3

BN51781

HOSE CLAMP

#72

1шт.

4

BN25675

CLAMP

T-Bolt 5 1/2"

1шт.

5

BN25637

ELBOW

5" x 4" x 90°

1шт.

6

BN25635

MOUNTING PARTS

Air Cleaner

2шт.

7

BN25293

TUBE

4" od x 3" Long x 16 ga SS

1шт.

8

BN68877

Hump Hose Straight 4"

1шт.

9

BN69643

CLAMP

T-Bolt 4.50 Longbolt

2шт.

10

BN69589

Air Clean

1шт.

11

BN68875

ELBOW

Reducer 4:3 x 90°

1шт.

12

BN69543

CLAMP

T Clamp SS 3.75 Diameter

1шт.

13

BN66126

INDICATOR

Filter, Electric

1шт.

14

BN68257

TEE

1/8 NPT Male - Female

1шт.

15

BN68258

INDICATOR

Restrict, 25" H2O

1шт.

16

BN21894

ELBOW

90º 1/8" Pipe

1шт.

17

BN25939

SPACER

.38 ID X 2" L Plastic

3шт.

18

BN50062

LOCK NUT,3/8"-16, Stainless Steel

12шт.

19

BN50146

WASHER,3/8", Stainless

12шт.

20

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

10шт.

21

BN50371

3/8-16 X 2.5, 5, PI

3шт.

22

BN53823

SPECIAL CLAMP

"T" Bolt -4 1/2"

2шт.
