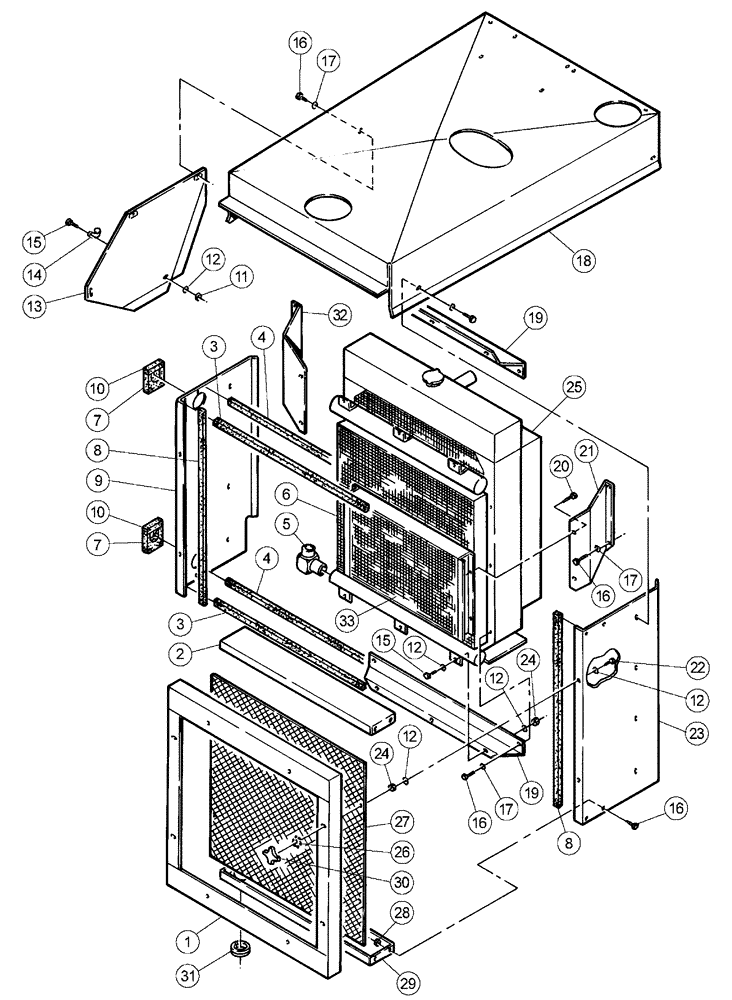

Запчасти Case IH PATRIOT WT (03-003) - MOUNT & SCREEN - OIL COOL ASSEMBLY (01) - ENGINE

1

BN67581

COVER ASSY

WT Radiator INT

1шт.

2

BN67584

COVER

top

1шт.

3

BN68595

SEAL

foam, .75 x 1 x 29

2шт.

4

BN68597

SEALING STRIP,25.4mm W x 774.7mm L x 19.05mm Thk

foam, .75 x 1 x 30.5

2шт.

5

BN67881

ADAPTER

90º 1" NPT x #16 JIC

2шт.

6

BN29339

OIL COOLER

Hyd.

1шт.

7

BN68740

OIL SEAL

Foam 3/4 X 3X3

2шт.

8

BN68596

SEALING STRIP,25.4mm W x 850.9mm L x 19.05mm Thk

foam, .75 x 1 x 33.5

2шт.

9

BN315808

SHROUD

LH

1шт.

10

BN65150

INSULATOR

foam, .75 x 1.0 x 3.0

3шт.

11

BN50064

NUT

3/8"-16, Stainless Steel

1шт.

12

BN50146

WASHER,3/8", Stainless

13шт.

13

BN65654

SHIELD

Alternator

1шт.

14

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

15

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

7шт.

16

BN50476

BOLT,5/16"-18 x 0.75", Stainless

22шт.

17

BN50142

WASHER,5/16", Stainless Steel

14шт.

18

BN25632

COVER

Engine Hood

1шт.

19

BN315804

BRACKET, SUPPORTING

Mount, Cooler

2шт.

20

BN50767

WASHER

1/4" X 3/4", HH, STP

4шт.

21

BN315795

MOUNTING PLATE

Condensor, RH

1шт.

22

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

4шт.

23

BN315807

SHROUD

RH

1шт.

24

BN50062

LOCK NUT,3/8"-16, Stainless Steel

10шт.

25

NSS

NOT SOLD SEPARAT

WT JDPT 6.8L

1шт.

See Fig. 04-004

1шт.

26

493-41039

LOCK WASHER,Ext Tooth, 3/8"

4шт.

27

BN67589

SCREEN

Mesh, Radiator Cover

1шт.

28

BN50056

LOCK NUT

5/16"-18, Whiz

4шт.

29

BN67588

COVER

bottom

1шт.

30

BN29392

KNOB

3" With 3/8"-16 Female Thread

4шт.

31

BN67586

Grommet - Cut

1шт.

32

BN315797

MOUNTING PLATE

Condensor, LH

1шт.

33

BN67785

CONDENSER

Coil

1шт.
