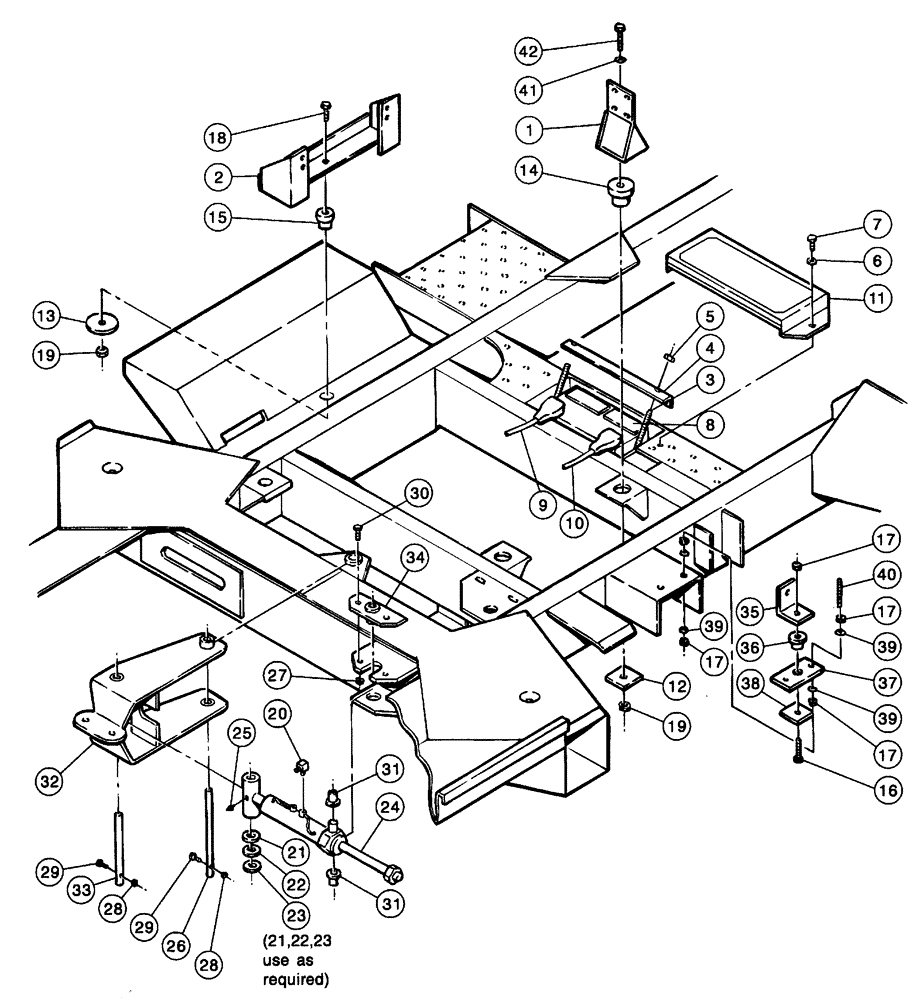

Запчасти Case IH PATRIOT WT (03-002) - ENGINE MOUNTS (01) - ENGINE

1

BN25600

Engine Rear JD 6 Cylinder

2шт.

2

BN69647

Engine Mount Front

1шт.

3

BN07020

5/16 Diameter X 11.5 Rod

2шт.

4

BN29276

ANGLE

Battery Hold Down

1шт.

5

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

6

BN50141

WASHER

5/16, FW, G5

2шт.

7

BN50476

BOLT,5/16"-18 x 0.75", Stainless

2шт.

8

BN57234

BATTERY

12V, 950 CCA post

1шт.

9

BN66120

NEG BATTERY CABLE

Assembly

1шт.

10

BN66122

CABLE

Battery Assembly (+)

1шт.

11

BN66124

COVER

Battery

1шт.

11a

BN29977

PLATFORM

Safety Walk - Flextread, 6" x 16"

1шт.

Service Part of Ref. 11

1шт.

11b

BN67240

SEAL

clip on

1шт.

Service Part of Ref. 11

1шт.

12

BN63818

WASHER,20.57mm ID x 69.85mm OD x 4.76mm Thk

7 GA 304 .81 x 2.75

2шт.

13

BN63818

WASHER,20.57mm ID x 69.85mm OD x 4.76mm Thk

7 GA 304 .81 x 2.75

1шт.

14

BN25639

ISOLATOR

Rubber Motor Mount

2шт.

15

BN25639

ISOLATOR

Rubber Motor Mount

1шт.

16

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

17

86992215

LOCK NUT,1/2"-13, GC

1шт.

18

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

2шт.

19

BN50969

NUT

3/4-10 Nylon Lock

2шт.

20

BN21401

ELBOW,90 Degree 3/8" NPT x 7/16"-20 JIC

2шт.

21

BN65463

WASHER

Machine Bushing - 18 GA

2шт.

22

BN65464

WASHER

Machine Bushing - 14 GA

2шт.

23

BN65465

WASHER

Machine Bushing - 10 GA

2шт.

24

NSS

NOT SOLD SEPARAT

Hydraulic Cylinder, Steering Patriot

1шт.

See Fig. 07-009

1шт.

25

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

1шт.

26

BN25516

PIN

pivot - 1.03" x 12.5"

1шт.

27

BN50072

NUT

Hex, 1/2"-13, G5, PL

2шт.

28

BN50131

LOCK NUT

3/8-16, CTR, PL

2шт.

29

BN50269

BOLT

3/8-16 X 2.25, HH, 5, PL

2шт.

30

BN50894

BOLT

1/2"-13 x 2.5, HH, 5

2шт.

31

BN63711

FLANGED BEARING,25.4mm ID x 28.57mm OD x 31.75mm L

Flange - Plastic 1"

2шт.

32

BN69156

ARM

steering, 8" frame

1шт.

33

BN63780

PIN

1.03 dia. CRS x 10

1шт.

34

BN63790

BUSHING

1шт.

35

BN25882

MOUNT

Pump, 3" x 3" x 3/8" Angle x 3"

1шт.

36

BN29243

ISOLATOR

Rubber 1/2" Bore

1шт.

37

BN25883

MOUNT

1/2 x 3 FB x 6.00

1шт.

38

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

1шт.

39

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

4шт.

40

BN19874

ROD

Threaded, 1/2"-13 x 3 3/4", SS

2шт.

41

BN50155

WASHER,17.48mm ID x 44.45mm OD x 3.05mm Thk

5/8", G5

2шт.

42

BN50319

BOLT

5/8-11 X 3.5, HH, 5, PL

2шт.
