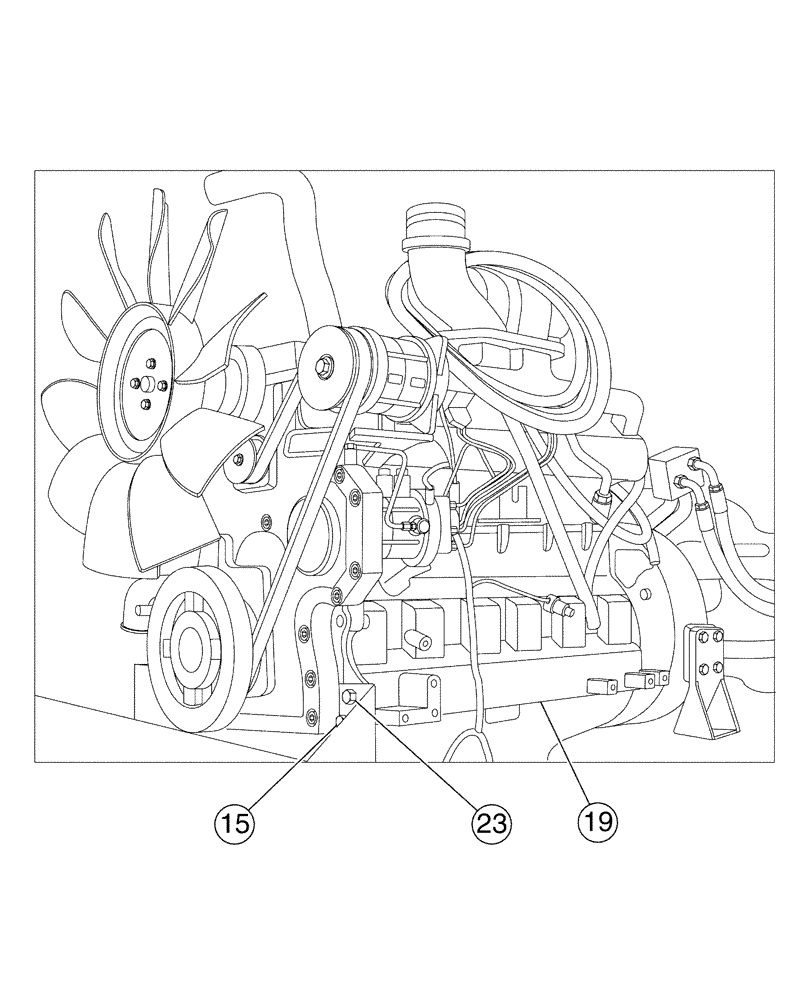

Запчасти Case IH PATRIOT WT (03-001[01]) - ENGINE (01) - ENGINE

1

BN24921

BRACKET

Mount-1/4" Hr 1.75 x 10.70

1шт.

1a

BN50145

WASHER

3/8, G5

2шт.

Associated Part of Bracket, P/N BN24921

1шт.

2

BN25680

COUPLING

Flywheel & Mount Plate Assembly

1шт.

3

BN25901

BRACKET

7 ga. 3" x 3" 304 SS

2шт.

4

29811

TUBE

STL - 1/4" x 4" (Fuel)

1шт.

5

BN300180

Fuel 3/8" ID X 181"

1шт.

6

BN300181

Hose - Fuel 1/4" ID X 151"

1шт.

9

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

10шт.

9a

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

2шт.

Associated Part of Bolt M12 X 1.75 X 30 MM, P/N BN50705

1шт.

10

BN50995

LOCK NUT

3/8"-24 UNF, Centerloc

2шт.

11

280129

NUT,1/4"-20

4шт.

12

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

12шт.

13

BN67309

SENDER UNIT

Oil Pressure 0-100

1шт.

14

BN67310

SENDER UNIT

Temperature 100-280 M14X 1.5

1шт.

15

BN69486

BOLT

M16-2-40 GR 8.8

2шт.

15a

BN50156

LOCK WASHER

5/8 Spring Lock

2шт.

Associated Part of Bolt M16-2-40 GR 8.8, P/N BN69486

1шт.

16

BN69488

GROMMET

ODI 7/8 IN

1шт.

17

BN69579

Bracket, A/C Hose Support

1шт.

18

BN69631

Shield - Solenoid

1шт.

18a

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

2шт.

Associated Part of Shield - Solenoid, P/N BN69631

1шт.

18b

BN50145

WASHER

3/8, G5

2шт.

Associated Part of Shield - Solenoid, P/N BN69631

1шт.

19

69592

ENGINE

6.8L JD Power Tech

1шт.

19a

BN68275

WIRE HARNESS

JD Alternator

1шт.

Associated Part of Engine 6.8 L JD Power Tech, P/N BN69592

1шт.

19b

BN69017

Mount - Throttle JDPT

1шт.

Associated Part of Engine 6.8 L JD Power Tech, P/N BN69592

1шт.

19c

BN69427

BELT

Fan JDPT

1шт.

Associated Part of Engine 6.8 L JD Power Tech, P/N BN69592

1шт.

19d

BN69633

RADIATOR HOSE

Radiator - Upper

1шт.

Associated Part of Engine 6.8 L JD Power Tech, P/N BN69592

1шт.

19e

BN69634

RADIATOR HOSE,2.00 ID, 2.25 ID x 7.50

Radiator - Lower

1шт.

Associated Part of Engine 6.8 L JD Power Tech, P/N BN69592

1шт.

20

BN29401

RELAY

Starter

1шт.

20a

BN50051

NUT,1/4"-20, USR

4шт.

Associated Part of Relay - Starter Circuit, P/N BN29401

1шт.

20b

BN50209

BOLT

1/4"-20 x .5, HH, 5, PL

2шт.

Associated Part of Relay - Starter Circuit, P/N BN29401

1шт.

20c

50214

BOLT Hex, 1/4"-20 x 1", G5

2шт.

Associated Part of Relay - Starter Circuit, P/N BN29401

1шт.

20d

BN69577

Mount, Solenoid

1шт.

Associated Part of Relay - Starter Circuit, P/N BN29401

1шт.

20e

BN69860

CIRCUIT BREAKER

150A

1шт.

Associated Part of Relay - Starter Circuit, P/N BN29401

1шт.

21

BN69085

SUPPORT

Brace, Hydraulic Pump JDPT

1шт.

21a

BN69050

PADDING

Neoprene, 1/4 Inch

1шт.

Associated Part of Brace, Hydraulic Pump JDPT, P/N BN69085

1шт.

22

BN24906

ROD

Linkage

1шт.

22a

D149295

BALL JOINT,3/8"

3/8"-24 Ends

2шт.

Associated Part of Rod - Linkage Weldment, P/N BN24906

1шт.

22b

86509310

NUT,3/8" - 24, Gr 5

4шт.

Associated Part of Rod - Linkage Weldment, P/N BN24906

1шт.

23

BN50454

9/16-12 X 2.25, 5, PL

2шт.

23a

BN50119

Nut, 9/16-12, GR 5

2шт.

Associated Part of Bolt, 9/16-12 x 2.25, 5, PL, P/N BN50454

1шт.

23b

BN50154

LOCK WASHER

9/16 Spring Lock

2шт.

Associated Part of Bolt, 9/16-12 x 2.25, 5, PL, P/N BN50454

1шт.

23c

BN25990

MUFFLER

32" Oval, 3.9 ID X 3.6 OD

1шт.

Not Shown

1шт.

23d

BN29335

PROTECTION CAP

Rain - (Exhaust)

1шт.

Not Shown

1шт.
