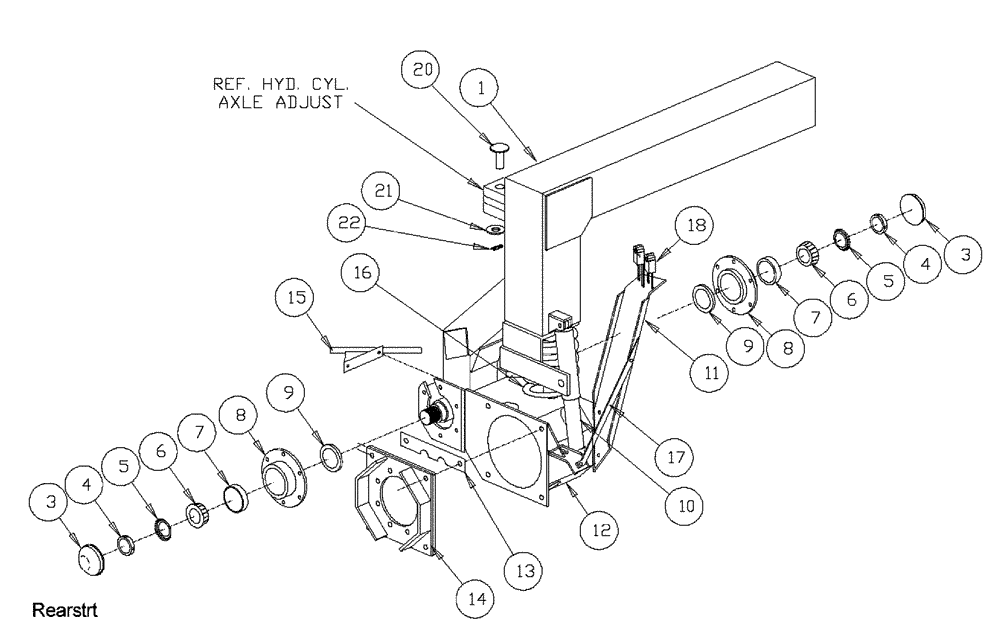

Запчасти Case IH PATRIOT WT (04-006) - STRUT ASSEMBLY - REAR Suspension & Frame

1

BN323926

STRUT

LH

1шт.

Shown

1шт.

1a

BN323925

STRUT

RH

1шт.

Opposite side

1шт.

3

BN68788

DUST CAP

w/Drill & Tap

4шт.

3a

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

Associated Part of Dust Cap w/Drill & Tap, P/N BN68788

1шт.

4

BN80443

LOCK NUT

4шт.

5

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

4шт.

6

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

4шт.

7

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

4шт.

8

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 10

1шт.

8a

BN29058

SHIM

8" Dia x 12 ga

1шт.

Associated Part of Retainer, P/N BN29071

1шт.

9

BN31074

SEAL

4шт.

10

BN27333

SERVICE KIT

Shock, Bushing, Bolt, Nut

2шт.

11

BN65571

SUPPORT

rear hoses, LH

1шт.

Shown

1шт.

11a

BN65572

SUPPORT

rear hoses, RH

1шт.

Opposite side

1шт.

12

BN66421

HOUSING

LH

1шт.

Shown

1шт.

12a

BN66420

HOUSING

RH

1шт.

Opposite side

1шт.

13

BN67444

SHIM

Auburn hubs

4шт.

14

BN66291

BRACKET

2шт.

14a

BN52320

BOLT

Hex, 5/8"-18 x 2 1/4", G8

8шт.

Associated Part of Plate, P/N 66291

1шт.

14b

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

Associated Part of Plate, P/N 66291

1шт.

14c

87343677

NUT

Hex, 5/8"-18, G8

8шт.

Associated Part of Plate, P/N 66291

1шт.

15

BN29690

DEFLECTOR

2шт.

16

BN24159

COIL SPRING

Extra H.D.

2шт.

16a

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

Associated Part of Spring - Extra HD, P/N BN24159

1шт.

17

BN65576

SUPPORT

RH

1шт.

Shown

1шт.

17a

BN65577

BRACKET

LH

1шт.

Opposite side

1шт.

18

BN57235

CLAMP

Assy, 1"

4шт.

20

BN27229

PIN,25.4mm OD x 69.85mm L

2шт.

21

50161

WASHER Hex, 3/4"-10 x 5", G5

2шт.

22

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16" x 3/4", Type E

2шт.
