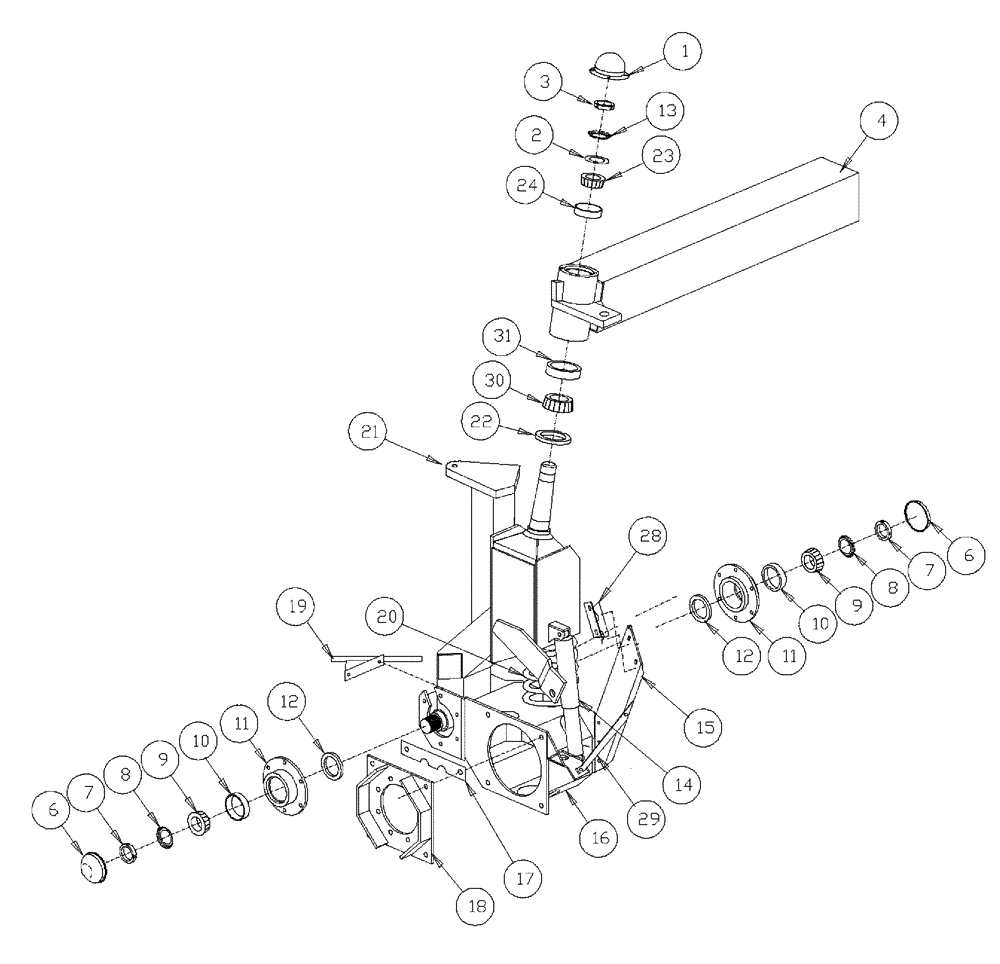

Запчасти Case IH PATRIOT WT (04-005) - STRUT ASSEMBLY - FRONT Suspension & Frame

1

BN89874

DUST CAP

2шт.

2

BN66209

WASHER,65.79mm ID x 95.25mm OD x 9.65mm Thk

spacer, front spindle

2шт.

3

BN58124

BEARING LOCK NUT

2шт.

4

BN68946

AXLE

front, LH

1шт.

Shown

1шт.

4a

BN68947

AXLE

front, RH

1шт.

Opposite side

1шт.

6

BN68788

DUST CAP

w/Drill & Tap

4шт.

6a

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.

Associated Part of Dust Cap w/Drill & Tap, P/N BN68788

1шт.

7

BN80443

LOCK NUT

4шт.

8

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

4шт.

9

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

4шт.

10

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

4шт.

11

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 10

1шт.

11a

BN29058

SHIM

8" Dia x 12 ga

1шт.

Associated Part of Retainer, P/N BN29071

1шт.

12

BN31074

SEAL

4шт.

13

BN58125

LOCK WASHER

lock, series wh

2шт.

14

BN27333

SERVICE KIT

Shock, Bushing, Bolt, Nut

2шт.

15

BN65573

BRACKET

LH

1шт.

Shown

1шт.

15a

BN65574

BRACKET

RH

1шт.

Opposite side

1шт.

16

BN66423

BRACKET

LH

1шт.

Shown

1шт.

16a

BN66422

FRAME

RH

1шт.

Opposite side

1шт.

17

BN67444

SHIM

Auburn hubs

4шт.

18

BN66291

BRACKET

2шт.

18a

BN52320

BOLT

Hex, 5/8"-18 x 2 1/4", G8

8шт.

Associated Part of Plate, P/N BN66291

1шт.

18b

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

Associated Part of Plate, P/N BN66291

1шт.

18c

87343677

NUT

Hex, 5/8"-18, G8

8шт.

Associated Part of Plate, P/N BN66291

1шт.

19

BN29690

DEFLECTOR

2шт.

20

BN24159

COIL SPRING

Extra H.D.

2шт.

20a

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

Associated Part of Spring - Extra HD, P/N BN24159

1шт.

21

BN323756

STRUT

Front, LH

1шт.

Shown

1шт.

21a

BN65229

STRUT

RH

1шт.

Opposite side

1шт.

22

86986322

OIL SEAL,110.11mm ID x 136.68mm OD x 12.7mm Thk

Double Lip, 5.381 od x 4.335 id x .5

2шт.

23

9672528

ROLLER BEARING,69.85mm ID

2шт.

24

BN52024

RACE

Race

2шт.

28

BN63919

BRACKET

Mount - Hyd hose

2шт.

29

BN65577

BRACKET

LH

1шт.

Shown

1шт.

29a

BN65576

SUPPORT

RH

1шт.

Opposite side

1шт.

30

BN89876

ROLLER BEARING,82.55mm ID x 33.34mm W

Bearing

2шт.

31

BN89875

RACE

Race

2шт.
