Запчасти Case IH PATRIOT NT (09-001) - DECALS-EXTERIOR (13) - DECALS

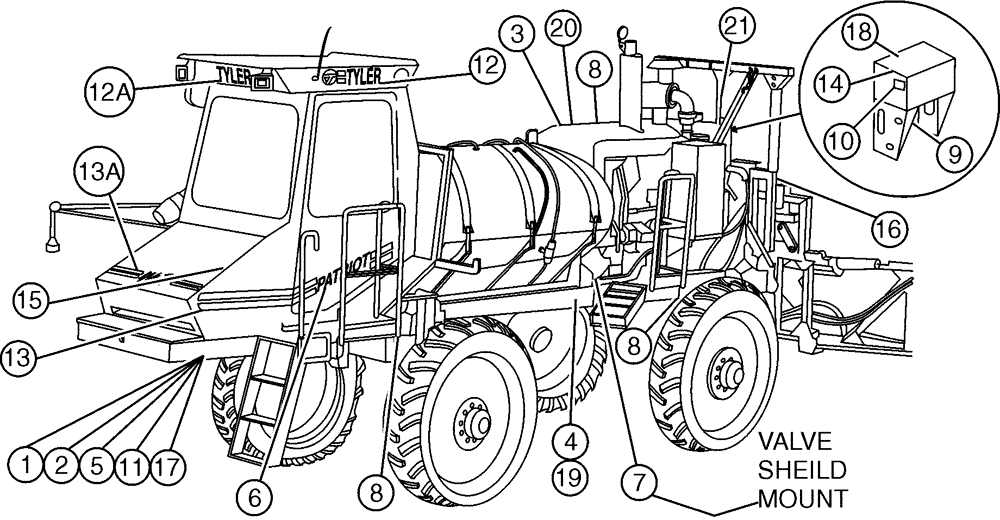

Схема запчастей Case IH PATRIOT NT - (09-001) - DECALS-EXTERIOR (13) - DECALS
12
8
11
21
16
18
17
8
12a
15
5
13a
7
14
6
3
4
1
19
8
2
10
13
20
9

Артикул

Название

Примечание

Количество

1

BN11886A

DECAL

Caution - Do Not Ride

1шт.

2

BN12429A

DECAL

Caution - Read Manual

1шт.

3

BN21723B

DECAL

Danger - Tank Pressure

1шт.

4

BN23877

CAUTION DECAL

Chemical

1шт.

5

BN29369

DECAL

Made By Tyler

1шт.

6

BN29419A

DECAL

Patriot™

1шт.

7

BN29624A

Function Valve (7 Bank)

1шт.

8

BN29636A

DECAL

Caution - Torque Nuts

1шт.

9

BN29646

DECAL

Warning - Fluid Presssure

1шт.

10

BN24279

DECAL

Caution - Add Oil

1шт.

11

BN25214

DECAL

Caution - Ladder

1шт.

12

BN54130A

Tyler Logo

1шт.

12a

BN54145

DECAL

Tyler (Die Cut)

1шт.

13

BN54131

Red Stripe

1шт.

13a

BN25847

Decal, Narrow Trax

1шт.

14

BN276534

DECAL

Hydraulic Oil

1шт.

15

BN400324A

DECAL

Warning - Diesel Fuel

1шт.

16

BN25179

DECAL

Caution - Pin CTR Boom

1шт.

17

BN25292

DECAL

Caution - Weight Restrictions

1шт.

18

NSS

NOT SOLD SEPARAT

Amoco Decal

1шт.

19

BN83998

Chemical Application

1шт.

20

BN65207

DECAL

Caution - Jump Start

1шт.

21

BN67243

DECAL

Caution, Strainer Pressure

1шт.

BN29637A

DECAL

Fuse Block, Switched, Under Dash

1шт.

BN29638

DECAL

Fuse Block, Unswitched, Under Dash

1шт.

BN63915

DECAL

Caution Foamer Mixing, Not Shown (On Foamer Tank)

1шт.

BN27476

Complete Decal set

1шт.

Выбрано товаров: 27
