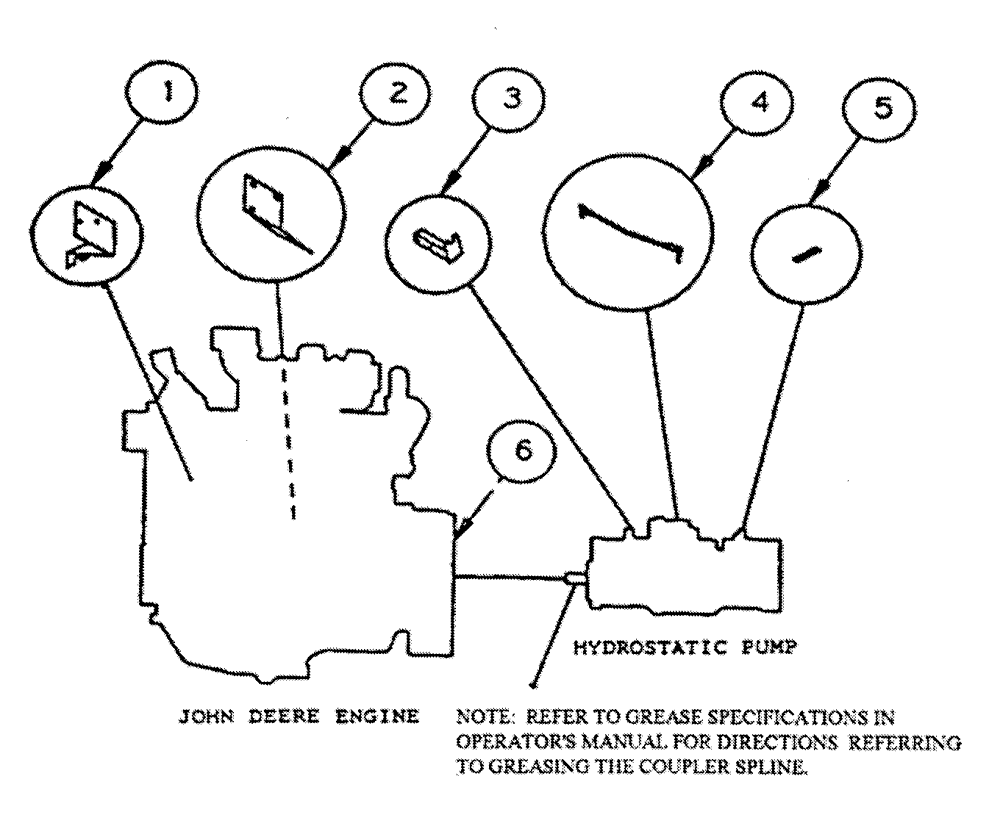

Запчасти Case IH PATRIOT NT (02-002) - ENGINE ASSEMBLY (01) - ENGINE

1

BN29184

Throttle

1шт.

BN25722

CABLE

Throttle Control, 202"

1шт.

2

BN25807

Mount - Starter Relay

1шт.

3

BN20188

Shifter

1шт.

BN25721

CABLE

Shift Control, 216"

1шт.

BN29258

CLEVIS

Assembly With Pin

1шт.

4

BN29950

LINKAGE

Assmbly, Shifter 770

1шт.

4a

BN29949

ROD

3/8"-24 x 10.5"

1шт.

4b

BN40245

BALL JOINT

3/8-24 grommet

2шт.

4c

86509310

NUT,3/8" - 24, Gr 5

2шт.

5

BN29185

MOUNTING PLATE

7 ga 304 3/4" x 3"

1шт.

6

BN310027

PLATE

& Coupling Assembly

1шт.

BN309994

FLYWHEEL

Coupler Only

1шт.

BN98190

PLATE

1шт.

BN98537

Injection (Patriot NT-JD4039T)

1шт.

Not Shown

1шт.

BN98538

(Patriot XI-JD4045T)

1шт.

Not Shown

1шт.

BN29334

MUFFLER

Exhaust (W/Clamp)

1шт.

Not Shown

1шт.

BN29335

PROTECTION CAP

Rain - (Exhaust)

1шт.

Not Shown

1шт.
