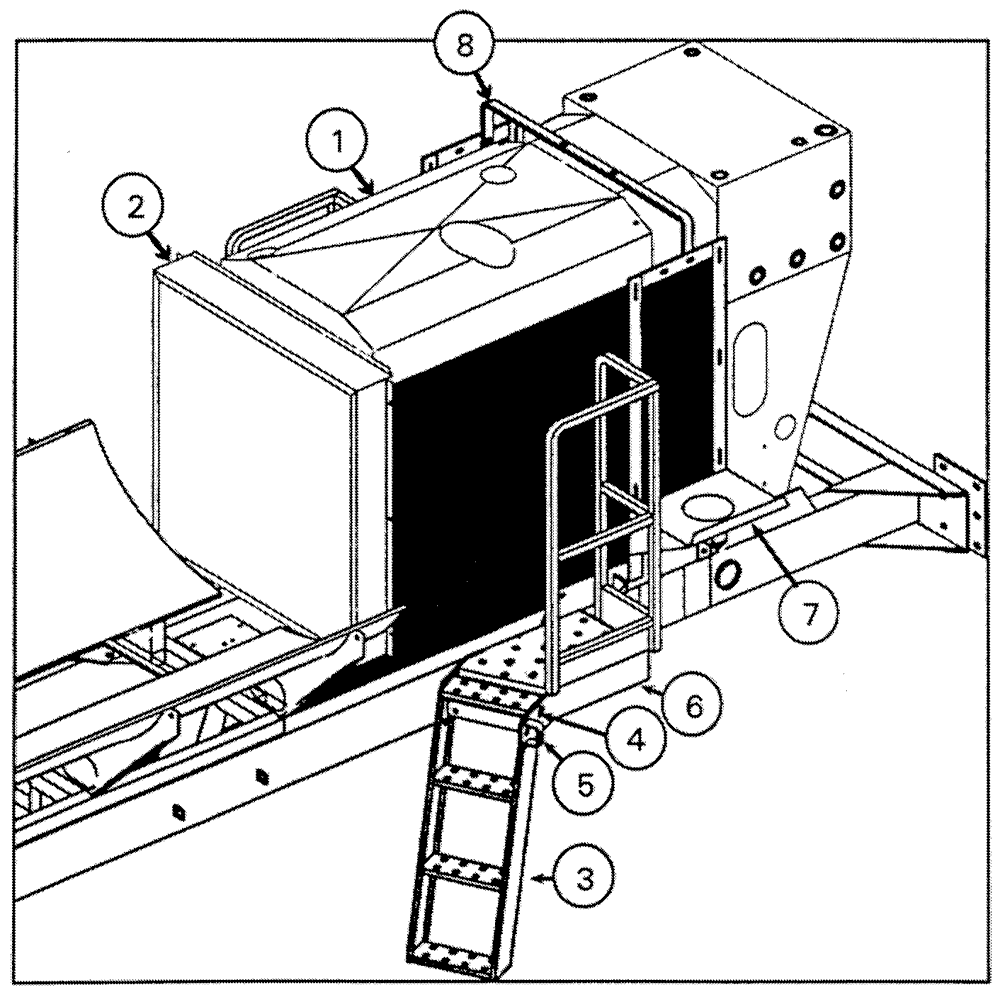

Запчасти Case IH PATRIOT NT (03-003) - LADDER ASSEMBLY AND REAR DECK Suspension & Frame

1

BN25859

Engine Cover

1шт.

BN29552

RUBBER MOUNTING

W/.25-20 studs

2шт.

BN29430

STRAP

Tankband - 750 Gallon

4шт.

BN60270

MOUNTING PLATE

Rubber

2шт.

2

BN25989

SCREEN

1шт.

BN63643

1шт.

BN25827

Screen R.H.

1шт.

BN25828

MOUNTING PLATE

Screen LH

1шт.

BN63641

Screen Lower

1шт.

BN63878

Screen Top

1шт.

BN29392

KNOB

3" With 3/8"-16 Female Thread

4шт.

BN65195

1шт.

3

BN25757

LADDER

Side 774

2шт.

4

BN24008

PIN

1" x 13"

2шт.

BN50605

PIN, ROLL

7/32 x 1 1/2

2шт.

5

BN5412

2шт.

BN31444

PIN, ROLL

1/4 x 1 1/2

2шт.

BN31937

SPRING

Compression, .905 x .765 2

2шт.

BN50157

WASHER

3/4, G5

2шт.

6

BN25746

LADDER

L.H.

1шт.

BN25747

R.H.

1шт.

7

BN25872

MOUNTING PLATE

Tank

2шт.

8

BN23293

SUPPORT

Foam & Rinse Tanks

1шт.
