Запчасти Case IH PATRIOT NT (08-003) - LIQUID PLUMBING - 40 - 60 Liquid Plumbing

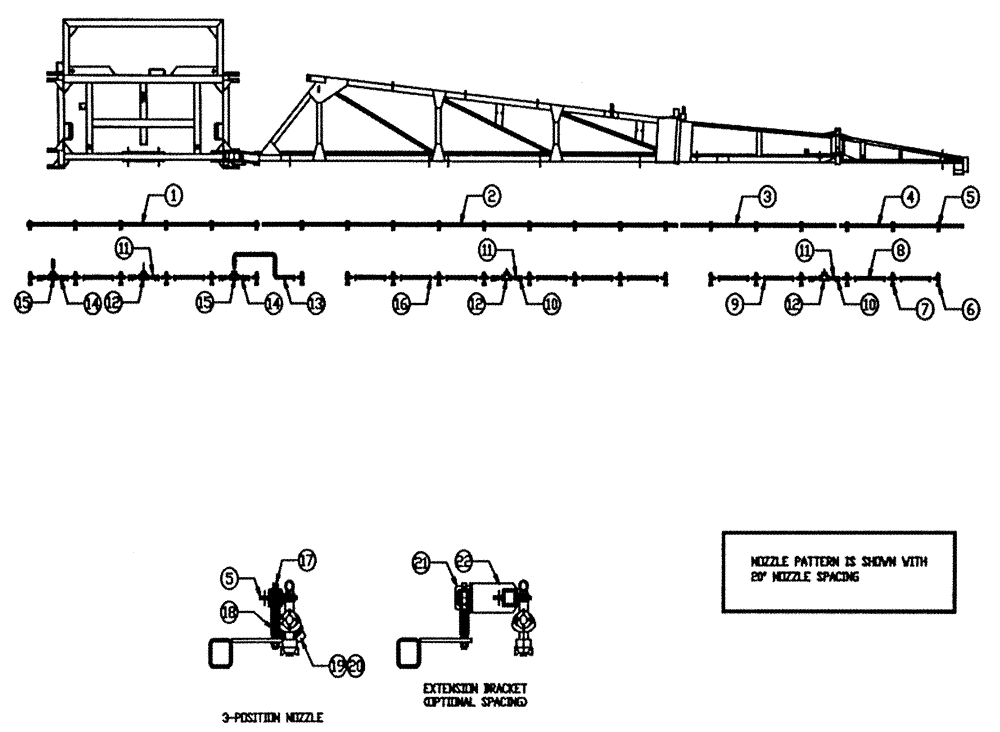

Схема запчастей Case IH PATRIOT NT - (08-003) - LIQUID PLUMBING - 40 - 60 Liquid Plumbing
4
21
6
17
15
9
12
14
20
22
11
3
5
12
19
1
13
10
14
12
15
8
7
11
2
18
16
10
11
5

Артикул

Название

Примечание

Количество

1

BN63497

TUBE

102"

1шт.

2

BN63498

ARM

182 1 /4"

2шт.

3

BN24479

HYD TUBE

1 x 1 x 12 ga x 68"

2шт.

4

BN63499

TUBE

54"

2шт.

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

20шт.

BN71006

COTTER PIN

1/8", #11

20шт.

5

BN74448

CLAMP

1" square tubing

36шт.

6

BN74618

Single 3/4"

12шт.

7

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

24шт.

BN74619

CAP

with gasket tee jet black

36шт.

BN74472

GASKET

Seat - Nozzle

36шт.

8

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

20шт.

9

BN53749

HOSE,0.75" ID x 36.00"

2шт.

10

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

14шт.

11

BN53666

FITTING

Barb - 1" X 3/4"

10шт.

12

BN73629

TEE

1" Poly Pipe

5шт.

13

BN53914

HOSE,0.75" ID x 60.00"

2шт.

14

BN73561

FITTING

Hose Barb - 3/4"

6шт.

15

BN73560

TEE

3/4"

2шт.

16

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

76шт.

17

BN25938

PIN

3/8" x 4 1/2"

20шт.

18

BN25939

SPACER

2" (3-Position Nozzles)

20шт.

19

BN74621

NOZZLE

3-Way Double 3/4" SHA

24шт.

20

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

12шт.

21

BN23149

U-BOLT

1/4"-20, Square, 1.1" id x 2" Long

2шт.

Optional Spacing

1шт.

22

BN25828

MOUNTING PLATE

Extension

2шт.

Optional Spacing

1шт.

Выбрано товаров: 28
