(05-007) - HYDRAULIC PLUMBING - WHEEL MOTORS (POWER SHIFT)

Запчасти Case IH PATRIOT NT (05-007) - HYDRAULIC PLUMBING - WHEEL MOTORS (POWER SHIFT) Hydraulic Plumbing

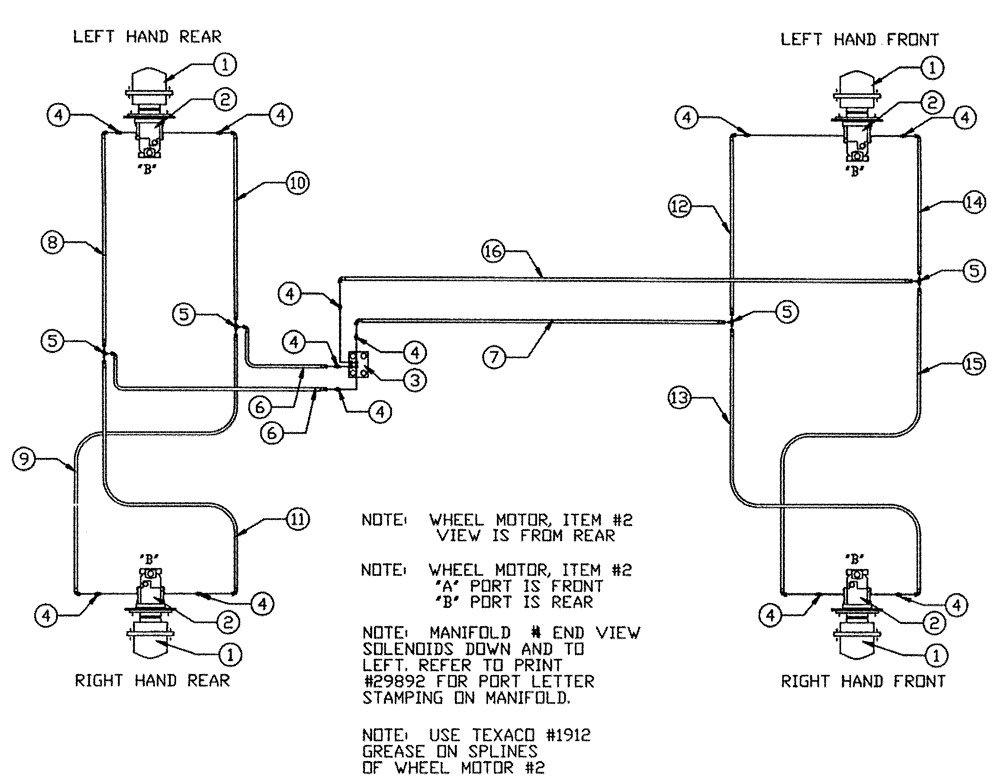

Схема запчастей Case IH PATRIOT NT - (05-007) - HYDRAULIC PLUMBING - WHEEL MOTORS (POWER SHIFT) Hydraulic Plumbing
14
12
10
4
4
8
1
7
4
4
13
4
5
5
2
2
1
11
1
4
5
6
2
4
16
4
3
4
2
5
4
1
9
15
4
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Hub-Planetary-Front Model #7

2шт.

See Fig. 04-003 for Seals & Repair Parts

1шт.

NSS

NOT SOLD SEPARAT

Hub-Planetary-Rear W/Brake Model #7

2шт.

See Fig. 04-003 for Seals & Repair Parts

1шт.

BN27372

CAP

hub cover

4шт.

2

BN54215

MOTOR

Wheel

4шт.

BN54215R

REMAN-HYD MOTOR

Patriot NT Sprayer,

4шт.

BN54215C

CORE-HYDRAULIC PUMP

Return Number

1шт.

BN54033

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

(Between Hub & Wheel Motor)

4шт.

BN98186

SEAL

lip, shaft

4шт.

3

NSS

NOT SOLD SEPARAT

Valve-Manifold

1шт.

See Fig. 02-006 for Seals & Repair Parts

1шт.

4

BN51589

FITTING

STR.-9/16-18 O-Ring x 7/16-20 JIC

12шт.

BN98019

O-RING

#6

12шт.

5

BN21422

TEE

7/16-20 JIC

4шт.

6

BN55188

HOSE

1/4" x 8 1/2"

2шт.

7

BN55180

HOSE

1/4" x 126" (Long drop 90°)

1шт.

8

BN55167

HOSE

1/4" x 101"

1шт.

9

BN55166

HOSE

1/4" x 80"

1шт.

10

BN54177

HOSE

1/4" ID x 96", 100R1

1шт.

11

BN55168

HOSE

1/4" X 86"

1шт.

12

BN55169

HOSE

1/4" X 95"

1шт.

13

BN55170

HOSE

1/4" X 106"

1шт.

14

BN55164

HOSE

1/4" X 90"

1шт.

15

BN55163

HOSE

1/4" X 101"

1шт.

16

BN54253

1/4" x 126" (Short drop 90°)

1шт.
