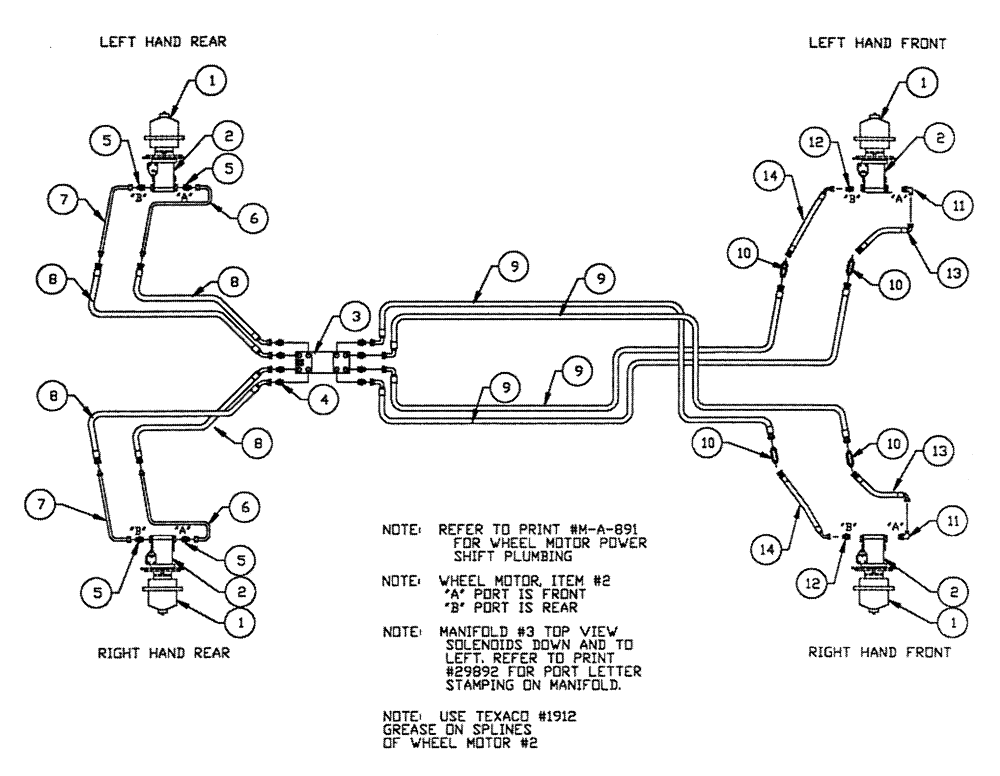

Запчасти Case IH PATRIOT NT (05-006) - HYDRAULIC PLUMBING - WHEEL MOTORS Hydraulic Plumbing

1

NSS

NOT SOLD SEPARAT

Hub - Front Planetary Model #7

2шт.

See Fig. 04-003 for Seals & Repair Parts

1шт.

NSS

NOT SOLD SEPARAT

Hub - Rear Planetary Model #7

2шт.

See Fig. 04-003 for Seals & Repair Parts

1шт.

BN27372

CAP

hub cover

4шт.

2

BN54215

MOTOR

Wheel

4шт.

BN54215R

REMAN-HYD MOTOR

Patriot NT Sprayer,

4шт.

BN54215C

CORE-HYDRAULIC PUMP

Return Number

1шт.

BN54033

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

(Between Hub & Wheel Motor)

4шт.

BN98186

SEAL

lip, shaft

4шт.

3

BN54214

Manifold

1шт.

See Fig. 02-006 for Seals & Repair Parts

1шт.

4

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

4шт.

BN98016

O-RING

SAE-16 Buna N

4шт.

5

BN57233

FITTING

STR.-1 5/16-12 O-Ring x 1 3/16-12 Flat Face

4шт.

BN53894

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

ARP standard #018

4шт.

BN98016

O-RING

SAE-16 Buna N

4шт.

6

BN63817

TUBE

Steel - 3/4"

2шт.

7

BN63816

TUBE

Steel - 3/4"

2шт.

8

BN55135

HOSE

3/4" X 67 1/2" (High Pressure}

4шт.

9

BN55137

HOSE

3/4" X 192" (High Pressure}

4шт.

10

BN55133

BULKHEAD

12 JIC

4шт.

11

BN53927

ADAPTER

90º 16 O-Ring-12 JIC

2шт.

12

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

2шт.

BN98016

O-RING

SAE-16 Buna N

2шт.

13

BN58131

HOSE

3/4" x 24 1 /4"

2шт.

14

BN58130

HOSE

3/4" x 19 3/4"

2шт.

BN24219

High Pressure Hose

4шт.

Not Shown

1шт.

BN50940

U-BOLT

(Hose Clamp)

4шт.
