Запчасти Case IH PATRIOT NT (05-005) - HYDRAULIC PLUMBING - STEERING Hydraulic Plumbing

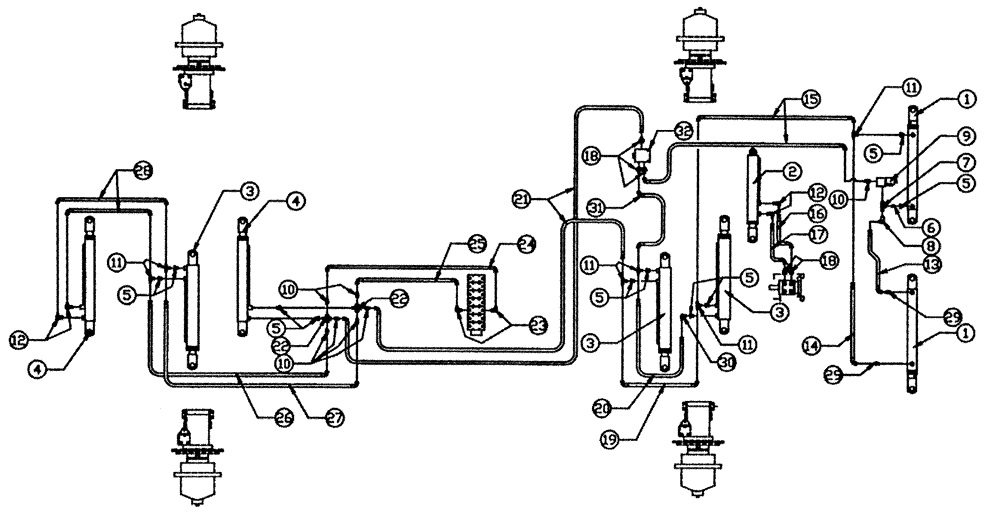

Схема запчастей Case IH PATRIOT NT - (05-005) - HYDRAULIC PLUMBING - STEERING Hydraulic Plumbing
5
10
15
14
12
13
5
27
8
4
5
30
4
11
9
1
3
26
18
20
23
11
3
25
10
2
12
10
16
6
5
11
24
29
3
21
5
25
31
11
7
1
19
22
17
32
18
22
28
5

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Hydraulic Cylinder - Tie Rod

2шт.

See Fig. 06-008

1шт.

2

NSS

NOT SOLD SEPARAT

Hydraulic Cylinder - Steering

1шт.

See Fig. 06-007

1шт.

3

NSS

NOT SOLD SEPARAT

Hydraulic Cylinder - Axle Adjustment

3шт.

See Fig. 06-001

1шт.

4

NSS

NOT SOLD SEPARAT

Hydraulic Cylinder - Axle Adjustment

2шт.

See Fig. 06-002

1шт.

6

BN51352

BUSHING

1/4-18 x 3/8-18 NPT

10шт.

6

BN72000

FITTING

1/4" Close

1шт.

7

BN53712

TEE

1/4" NPT

1шт.

8

BN21859

ELBOW 90° 1/4" NPT x 4 JIC

1шт.

9

BN29788

CARTRIDGE

Solenoid w/Coil

1шт.

BN98231

COIL

(For BN29788)

1шт.

BN98204

O-RING

BUNA-N, for BN29788

1шт.

BN98205

O-RING

Top Large (For BN29788)

1шт.

BN29789

BODY

Valve {For BN29788)

1шт.

10

BN21355

ADAPTER,1/4"-18 NPT x 7/16-20 JIC

7шт.

11

BN53711

TEE

1/4 NPT x 7/16-20 JIC

6шт.

12

BN21401

ELBOW,90 Degree 3/8" NPT x 7/16"-20 JIC

5шт.

13

BN54254

1/4" X 12"

1шт.

14

BN55181

1/4" X 43"

1шт.

15

BN55153

1/4" X 33 1/2"

2шт.

16

BN55201

HOSE

1/4" X 82"

1шт.

17

BN55202

1/4" X 80"

1шт.

18

BN21249

ADAPTER,3/4" - 16 ORFS x 7/16" - 20 JIC

5шт.

BN98108

#8

5шт.

19

BN55182

1/4" X 38"

1шт.

20

BN55157

HOSE ASSY.

1/4" X 28"

1шт.

21

BN54231

HOSE

1 /4" X 113"

2шт.

22

BN55236

COUPLING

1/4"

2шт.

23

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

14шт.

BN98019

O-RING

#6

14шт.

24

BN55161

1/4" X 31"

1шт.

25

BN55162

1/4" X 50"

1шт.

26

BN55155

HOSE

1/4" X 29"

1шт.

27

BN55156

HOSE

1/4" X 33"

1шт.

28

BN55154

HOSE

1/4" X 17"

2шт.

29

BN22158

ADAPTER,3/8" NPT X 7/16"-20, 37 Degree

2шт.

30

BN442022

1шт.

31

BN55337

HOSE

1шт.

32

BN65736

DIVIDER

Flow/Combiner

1шт.

BN65737

CARTRIDGE

Only

1шт.

BN65738

Body Only

1шт.

342274A1

STOP DEVICE

Cylinder, 1.25" id x 2"

21шт.

Not Shown

1шт.

BN25682

STOP

Cylinder 1" x 1 1/4" Dia.

14шт.

Not Shown

1шт.

Выбрано товаров: 48
