Запчасти Case IH PATRIOT NT (04-002) - POWER WHEEL HUB (AUBURN MODEL 6) - SEAL & BEARING KIT Hub, Wheel & Tires

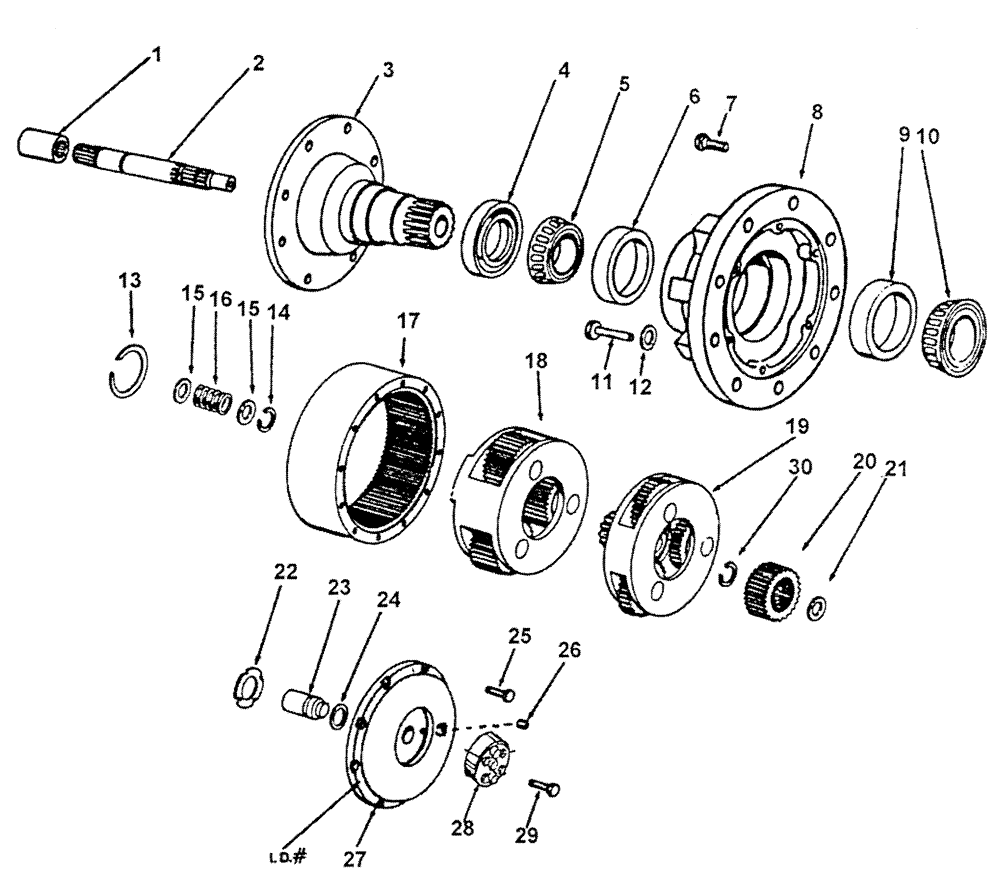

Схема запчастей Case IH PATRIOT NT - (04-002) - POWER WHEEL HUB (AUBURN MODEL 6) - SEAL & BEARING KIT Hub, Wheel & Tires
3
27
26
4
15
11
29
9
30
12
19
17
7
6
16
2
28
18
21
23
5
8
20
22
1
24
14
15
25
10
13

Артикул

Название

Примечание

Количество

1

BN98370

COUPLING

Non Brake Unit

1шт.

2

BN98489

SHAFT

Input - Non Brake Unit

1шт.

3

BN98490

SPINDLE

Non Brake Unit

1шт.

BN98687

SEAL

Trash, (Non Brake Hub)

1шт.

1

BN98488

COUPLING

Brake Unit

1шт.

BN98467

BUSHING

Flange Sleeve Bearing - Brake Unit

1шт.

2

BN98511

SHAFT

Input - Brake Unit

1шт.

3

BN98491

Brake Unit

1шт.

BN98627

BOLT

1/2 x 2 1/2 Torx Head (Brake to Spindle #98491)

4шт.

8

BN68799

HUB

Brake Unit

1шт.

BN98629

SEAL

ABRN, Brake Hub

1шт.

4

BN98507

SEAL

1шт.

BN98237

SEAL KIT

Spindle

1шт.

Includes Refs. 4 and 13

1шт.

BN98238

WHEEL BEARING KIT

and Bearing

1шт.

Includes Refs. 4, 5, 6, 9, 10 and 13

1шт.

5

BN98508

ROLLER BEARING

Inner

1шт.

6

BN98509

RACE

1шт.

Same as Ref. 9

1шт.

7

BN50791

BOLT

Wheel - 9/16-18 x 2 3/4 Gr. 8

9шт.

8

BN98492

HUB

Non Brake Unit

1шт.

9

BN98509

RACE

1шт.

Same as Ref. 6

1шт.

10

BN98510

ROLLER BEARING

Outer

1шт.

11

BN50725

BOLT

3/8-24 x 2 1/4 Gr. 8

12шт.

12

BN98494

WASHER

flat

12шт.

13

BN98493

REPAIR KIT

Snap Ring (7 Pc)

1шт.

14

BN98495

SNAP RING

Retaining

1шт.

15

BN98496

WASHER

Snap Ring Backup

2шт.

16

BN98497

SPRING

Disengage

1шт.

17

BN98498

RING GEAR

1шт.

18

BN24538

CARRIER

(15:1 ratio) (3 gears-27 teeth each)

1шт.

BN98499

CARRIER

(19:1 21:1 24:1 & 28:1 ratios) (3 gears-29 teeth each)

1шт.

19

BN24535

CARRIER

15:1 ratio (3 gears 24 teeth each) (Includes Secondary sun gear - 22 teeth)

1шт.

BN24038

CARRIER

Primary Assembly - 19:1 ratio (3 gears-26 teeth each) (Includes Secondary sun gear - 1 9 teeth)

1шт.

BN24040

CARRIER

21:1 ratio (3 gears-27 teeth each) (Includes Secondary sun gear - 19 teeth)

1шт.

BN24062

CARRIER

24:1 ratio (3 gears-28 teeth each) (includes Secondary sun gear - 19 teeth)

1шт.

BN24064

CARRIER

28:1 ratio (3 gears-30 teeth each) (Includes Seoondary sun gear 19 teeth)

1шт.

20

BN24536

SUN GEAR

Primary - 15:1 Ratio {28 teeth)

1шт.

BN24037

SUN GEAR

Primary 19:1 Ratio (25 teeth)

1шт.

BN24039

SUN GEAR

Primary 21:1 Ratio (22 teeth)

1шт.

BN24061

SUN GEAR

Primary 24:1 Ratio (19 teeth)

1шт.

BN24063

SUN GEAR

Primary 28:1 Ratio (16 teeth)

1шт.

21

BN98500

WASHER

Thrust, - Small

1шт.

22

BN98501

THRUST WASHER

Large

1шт.

23

BN98502

PLUNGER

Disengage

1шт.

24

BN98S03

1шт.

25

BN50823

BOLT

5/16-18 X 1 Gr. 5

8шт.

26

BN98487

PLUG

magnetic

1шт.

27

BN98504

COVER

1шт.

28

BN98512

REPAIR KIT

Quick Disconnect

1шт.

Includes Hub #28 Gasket Not Shown and Bolts (2) #29

1шт.

BN98506

GASKET

quick release hub

1шт.

For Ref. 28

1шт.

BN27372

CAP

hub cover

1шт.

29

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

2шт.

30

BN98721

RETAINER

1шт.

BN98424

BRAKE

Disc Kit

1шт.

Not Shown

1шт.

#6 Hubs Complete

1шт.

BN98425

REPAIR KIT

Brake - Piston

1шт.

Not Shown

1шт.

#6 Hubs Complete

1шт.

BN63823

Complete-No Brake 15:1 Ratio {68520 #7 Kit)

1шт.

Not Shown

1шт.

#6 Hubs Complete

1шт.

BN29006

Complete-No Brake 19:1 Ratio (68521 #7 Kit)

1шт.

Not Shown

1шт.

#6 Hubs Complete

1шт.

BN29981

Complete-W/Brake 19:1 Ratio (68527 #7 Kit)

1шт.

Not Shown

1шт.

#6 Hubs Complete

1шт.

BN68523

PACKAGE

Complete-No Brake 21:1 Ratio (68523 #7 Kit)

1шт.

Not Shown

1шт.

#6 Hubs Complete

1шт.

BN25236

Complete-W/Brake 21:1 Ratio {68524 #7 Kit)

1шт.

Not Shown

1шт.

#6 Hubs Complete

1шт.

BN25215

Complete-No Brake 24:1 Ratio 168522 #7 Kit)

1шт.

Not Shown

1шт.

#6 Hubs Complete

1шт.

BN25216

Compiete-W/Brake 24:1 Ratio {68525 #7 Kit)

1шт.

Not Shown

1шт.

#6 Hubs Complete

1шт.

BN63824

Complete-W/Brake 28:1 Ratio {68526 #7 Kit)

1шт.

Not Shown

1шт.

#6 Hubs Complete

1шт.

BN50791

BOLT

Wheel - 9/16-18 x 2 3/4 Gr. 8

36шт.

Not Shown

1шт.

#6 Hubs Complete

1шт.

BN315227

WHEEL NUT

Flanged Wheel, 9/16"-18

36шт.

Not Shown

1шт.

#6 Hubs Complete

1шт.

BN98658

GASKET

Hub/Brake

2шт.

Not Shown

1шт.

#6 Hubs Complete

1шт.

BN68545

BLEEDER

(#6 Hubs Complete)

1шт.

Not Shown

1шт.
