Запчасти Case IH PATRIOT NT (04-001) - WHEEL & TIRE Hub, Wheel & Tires

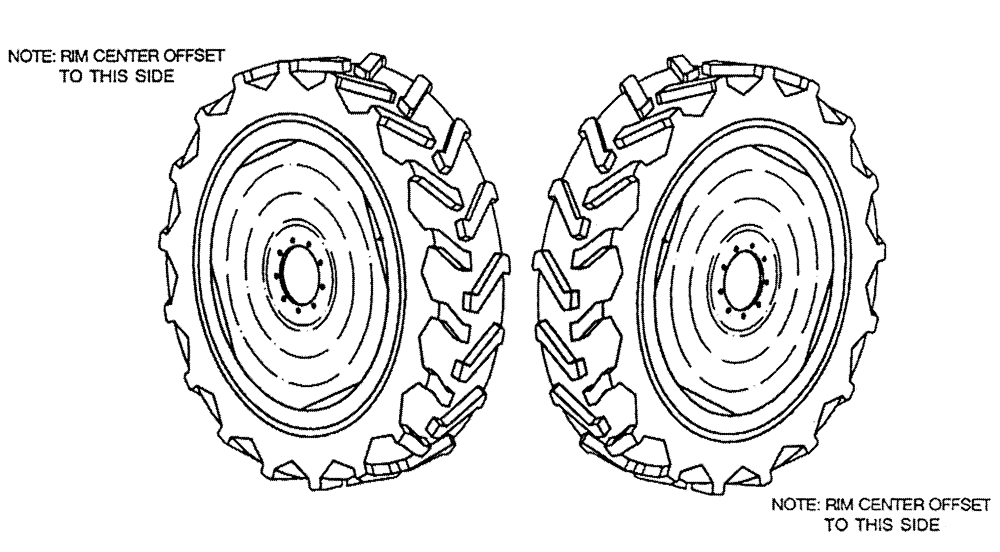

Схема запчастей Case IH PATRIOT NT - (04-001) - WHEEL & TIRE Hub, Wheel & Tires

Артикул

Название

Примечание

Количество

BN66742

RH Tire - Mounted 12.4" x 38" - 10 Ply

2шт.

BN66743

LH Tire - Mounted 12.4" x 38" - 10 Ply

2шт.

BN320548

WHEEL

10" x 38"

4шт.

BN66744

TYRE/TIRE

12.4" x 38" (Tubeless)

4шт.

BN67196

Valve

4шт.

BN29616

RH Tire Mounted - 9.5" x 42" - 10 Ply

2шт.

Optional Tire Assembly

1шт.

BN29608

LH Tire Mounted - 9.5" x 42" - 10 Ply

2шт.

Optional Tire Assembly

1шт.

BN320549

WHEEL

9" x 42"

4шт.

Optional Tire Assembly

1шт.

BN29609

TYRE/TIRE

9.5" x 42" - 10 Ply With Tube

4шт.

Optional Tire Assembly

1шт.

BN29470

9.5" x 42"

4шт.

Optional Tire Assembly

1шт.

BN27225

RH Tire Mounted - 16.9" x 38" - 6 Ply

2шт.

Optional Tire Assembly

1шт.

BN27226

LH Tire Mounted - 16.9" x 38" - 6 Ply

2шт.

Optional Tire Assembly

1шт.

BN320550

WHEEL

15" x 38"

4шт.

Optional Tire Assembly

1шт.

BN27227

Tire - 16.9R x 38 Radial (Tubeless)

4шт.

Optional Tire Assembly

1шт.

BN30469

VALVE STEM

4шт.

Optional Tire Assembly

1шт.

BN50791

BOLT

Wheel - 9/16-18 x 2 3/4 Gr. 8

36шт.

Optional Tire Assembly

1шт.

BN315227

WHEEL NUT

Flanged Wheel, 9/16"-18

36шт.

Optional Tire Assembly

1шт.

Выбрано товаров: 29
