Запчасти Case IH PATRIOT NT (01-004) - CONTROLS - CAB INTERIOR Cab Interior

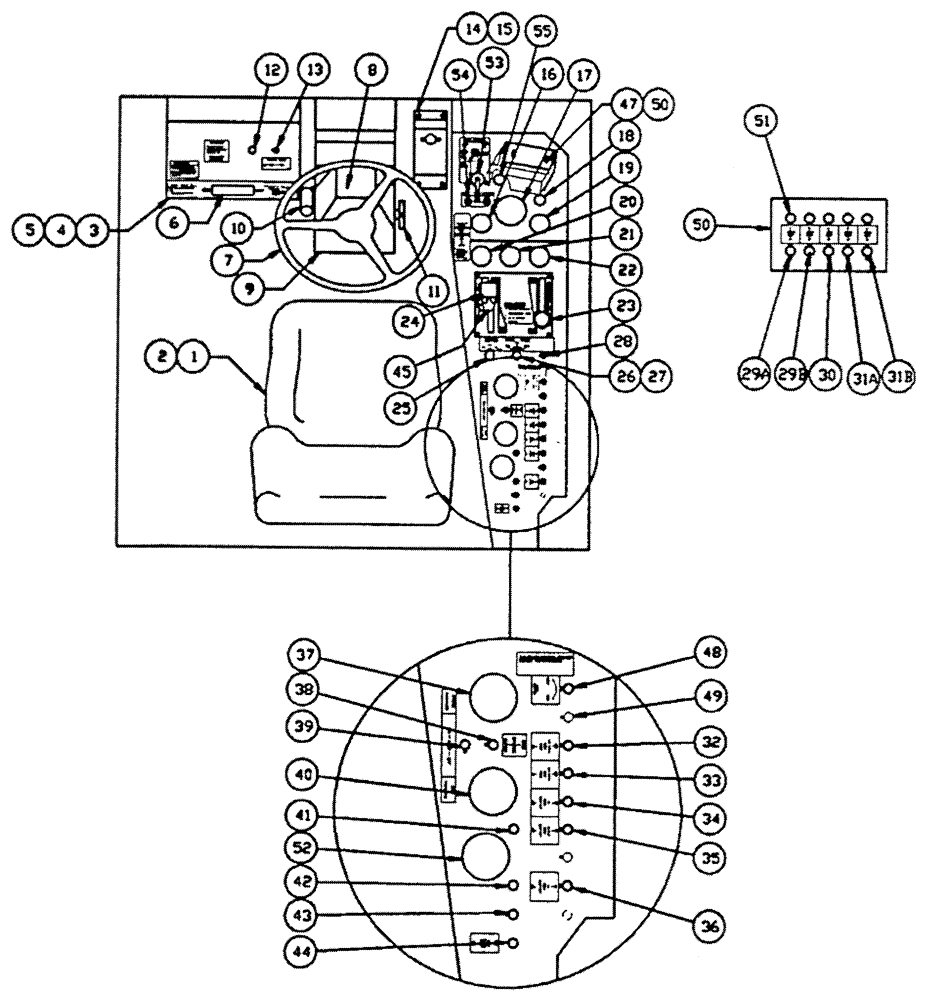

Схема запчастей Case IH PATRIOT NT - (01-004) - CONTROLS - CAB INTERIOR Cab Interior
35
22
27
47
20
41
23
36
16
29b
37
49
12
24
38
19
1
10
14
6
30
33
2
34
15
7
28
52
29a
5
11
54
31a
18
3
17
51
44
42
50
13
43
50
48
55
4
8
25
32
40
9
21
31b
45
53
26
39

Артикул

Название

Примечание

Количество

1

BN68852

SEAT

Magnum 200 (Gray)

1шт.

2

BN29361

SAFETY BELT

Retractable BL

1шт.

BN25964

Seat

2шт.

3

BN29194

1шт.

4

BN29329

COVER

, Serial Range: (Access-Radio)

1шт.

5

BN21559

HOLDER

Manuals

1шт.

6

BN57219

RADIO

JVC AM-FM-Cassette

1шт.

BN57220

SPEAKER

JVC (Set of 2)

1шт.

BN57222

ANTENNA

Radio

1шт.

7

BN27313

STEERING WHEEL

16" Dia.

1шт.

BN27314

CAP

Steering Wheel

1шт.

BN29232

JAM NUT

Steering Wheel

1шт.

BN29235

STEERING COLUMN

1шт.

8

BN29179

MOUNTING PLATE

Steerng Control

1шт.

9

BN29181

Steering Column (Lower)

1шт.

10

BN29274

GRIP

Black-Vinyl, .5 id x 4" Long

1шт.

BN29178

PIN

Tilt

2шт.

BN30670

SPRING

Tilt Steer

2шт.

11

BN29392

KNOB

3" With 3/8"-16 Female Thread

1шт.

BN50777

BOLT

Carriage

1шт.

12

BN29780

INDICATOR LIGHT

Red, 12V

1шт.

13

BN21563

SWITCH

On-Off

1шт.

BN29198

COVER

Parking Brake Switch

1шт.

15

BN29522

SWITCH

Dimmer Floor Mount

1шт.

16

BN29465

GAUGE

Restriction Indicator-Air Filter

1шт.

17

BN29277

TACHOMETER

(0 - 4000 RPM)

1шт.

18

BN16018

ALARM

Low Hopper

1шт.

19

BN57230

GAUGE

Voltmeter

1шт.

20

BN57212

GAUGE

Fuel

1шт.

21

BN57208

GAUGE

Temperature-Engine

1шт.

BN57209

TEMPERATURE SENDER

1шт.

22

BN57210

GAUGE

Oil-Engine

1шт.

BN57211

SENSOR

Sender - Oil Pressure

1шт.

23

BN98247

KNOB

Assembly - Throttle

1шт.

24

BN25971

CONTROL

Shift & Throttle (Complete)

1шт.

BN98248

SWITCH

Backup

1шт.

BN98249

NEUTRAL START SWITCH

1шт.

25

282775A1

IGNITION SWITCH

With Padded Keys

1шт.

BN98413

IGNITION KEY

(2 Keys)

1шт.

BN39175

Key - Team Tyler

1шт.

26

342465A1

SWITCH

range select

1шт.

27

BN29440

KNOB

for Contact Block BN29439

1шт.

Speed Range

1шт.

28

BN29446

SWITCH

Toggle, On-Off

1шт.

29a

BN24129

SWITCH

On-None-On Dpdt

1шт.

29b

BN24129

SWITCH

On-None-On Dpdt

1шт.

30

BN24129

SWITCH

On-None-On Dpdt

1шт.

31a

BN24129

SWITCH

On-None-On Dpdt

1шт.

31b

BN24129

SWITCH

On-None-On Dpdt

1шт.

32

BN29445

SWITCH

On-Off-On

1шт.

33

BN29445

SWITCH

On-Off-On

1шт.

34

BN29445

SWITCH

On-Off-On

1шт.

35

BN29445

SWITCH

On-Off-On

1шт.

36

BN29445

SWITCH

On-Off-On

1шт.

37

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

1шт.

38

BN29445

SWITCH

On-Off-On

1шт.

39

BN29446

SWITCH

Toggle, On-Off

1шт.

40

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

1шт.

41

BN29286

Windshield Wiper

1шт.

42

BN29273

SWITCH

Headlight/Taillight

1шт.

43

BN29448

Flasher

1шт.

44

BN16163

SWITCH

Lighted On - Off

1шт.

45

BN215191A

w/Switches (Complete DICKEY-john)

1шт.

BN29994

SWITCH

Push Button (For 25191 A)

5шт.

BN29993

CAP

(For Push Button Switch 29994}

5шт.

BN29986

INSERT

Grip, 1" Dia x 1.6" Nylon

1шт.

BN24172

SWITCH

On-Off Toggle

1шт.

BN24173

BOOT

Miniature Toggle

1шт.

46

BN29318

FLOOR MAT

1шт.

Not Shown

1шт.

47

BN29597

MOUNTING PLATE

DICKEY-john® Mount

1шт.

48

BN25318

CONTROL UNIT

Foam Control (Incr./Decr. Foam) - RHS

1шт.

BN27460

Switch - Foam Control (lncrease/Decrease Foam) w/Circuit Board - High Volume Pkg.

1шт.

49

BN73516

PLUG

7шт.

50

BN67036

Control Box

1шт.

BN27379

SHIELD

Wires {Control Box)

1шт.

51

BN24355

INDICATOR LIGHT

3шт.

52

BN27461

GAUGE

Pressure 0-60 psi

1шт.

53

BN63712

FLASHER SWITCH

Signal Light

1шт.

54

BN63836

Signal Indicator

2шт.

55

BN63865

HOURMETER

1шт.

Выбрано товаров: 81
