Запчасти Case IH PATRIOT NT (10-001) - DECALS INTERIOR (CAB) (13) - DECALS

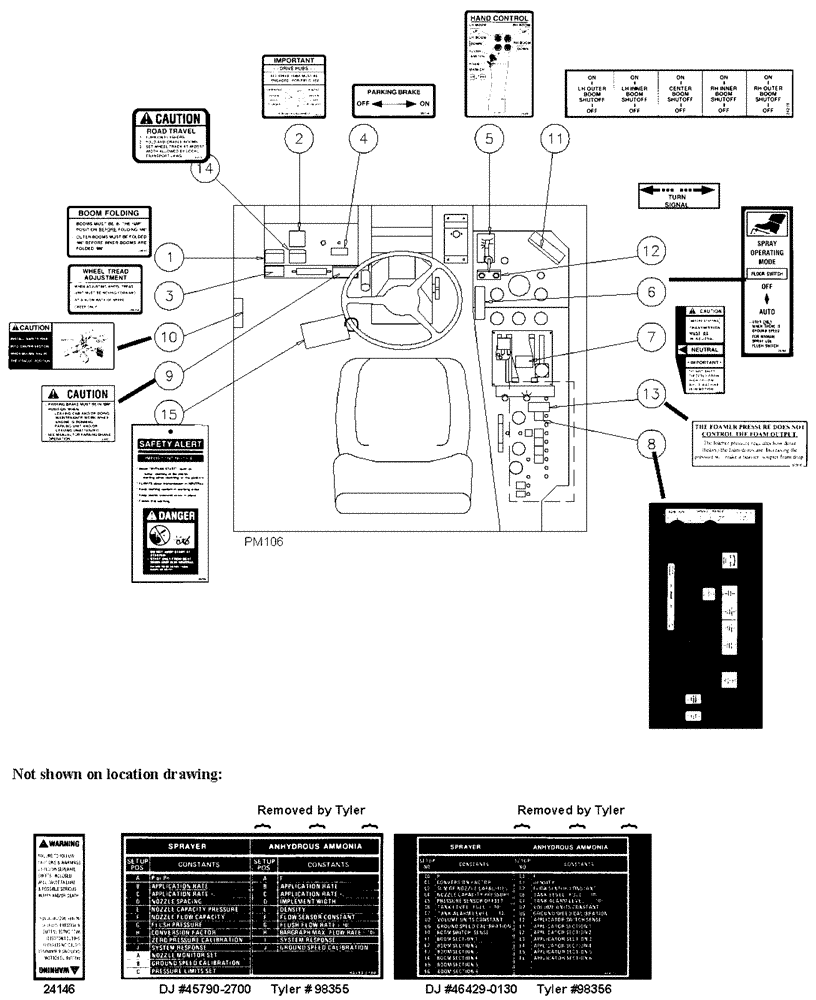

Схема запчастей Case IH PATRIOT NT - (10-001) - DECALS INTERIOR (CAB) (13) - DECALS
3
8
13
14
11
5
9
1
4
10
2
1
6
7
15

Артикул

Название

Примечание

Количество

1

BN29634

Boom Fold

1шт.

2

BN29411A

Drive Hubs

1шт.

3

BN29635A

DECAL

Wheel Tread Adjustment

1шт.

4

BN29718

DECAL

Parking Brake

1шт.

5

BN25201

DECAL

Boom Control

1шт.

6

BN29764

Spray Operation

1шт.

7

BN29398A

Caution, Starting

1шт.

8

BN25305A

DECAL

Console, Lower

1шт.

9

BN29982

DECAL

Caution, Brake On

1шт.

10

BN25179

DECAL

Caution, Safety Pin Ctr. Sec.(on door)

1шт.

11

BN24278

DECAL

Boom Shutoff

1шт.

12

BN63749

DECAL

Signal Light

1шт.

13

BN63916

DECAL

Foam Pressure Control

1шт.

14

BN25978

Caution, Road Travel

1шт.

15

BN65208

DECAL

Tag, Safety Alter (to be removed by customer)

1шт.

16

BN24146

DECAL

Warning, Control Cable (wrapped around cable under dash)

1шт.

Not Shown

1шт.

17

BN98355

DECAL

DICKEY-john® Sprayer Constants

1шт.

Not Shown

1шт.

18

BN98356

DECAL

DICKEY-john® Sprayer Constants (on cab post - right front)

1шт.

Not Shown

1шт.

Выбрано товаров: 21
