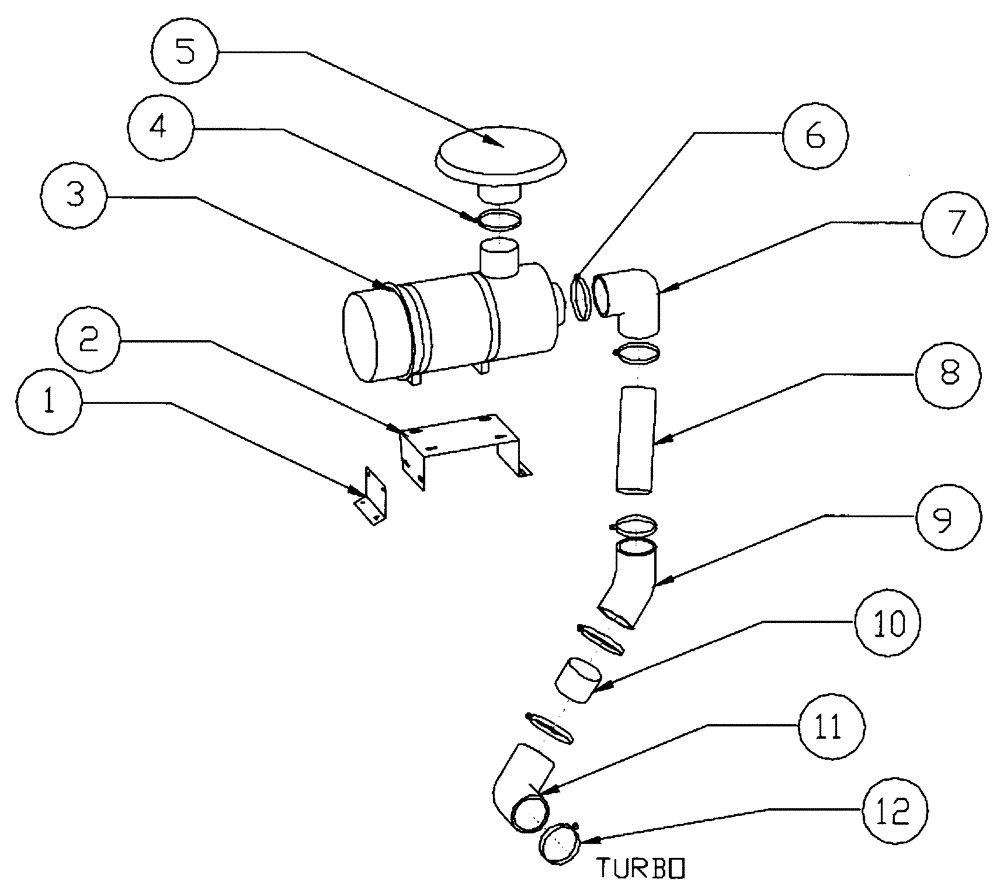

Запчасти Case IH PATRIOT NT (03-003) - AIR CLEANER ASSEMBLY (01) - ENGINE

1

BN24255

MOUNTING PLATE

12GA HRS 5 x 5.75

1шт.

2

BN24256

MOUNTING PLATE

12 GA HRS 7 x 20.75

1шт.

3

BN68873

AIR CLEANER

(Complete)

1шт.

3

BN69425

FILTER

Air (Primary)

1шт.

Parts Of Air Cleaner, P/N BN68873

1шт.

3

BN69426

FILTER

Air (Secondary)

1шт.

Parts Of Air Cleaner, P/N BN68873

1шт.

3

BN25291

Mounting (For Air Cleaner)

2шт.

Parts Of Air Cleaner, P/N BN68873

1шт.

4

BN51781

HOSE CLAMP

#72

1шт.

5

BN25290

VENT

Rain Cap, Air Inlet 4.5"

1шт.

6

BN53823

SPECIAL CLAMP

"T" Bolt -4 1/2"

5шт.

7

D50920

ELBOW

4" x 90°

1шт.

8

BN68879

TUBE

4" dia. x11"

1шт.

9

BN68876

ELBOW

4" X 45°

1шт.

10

BN25293

TUBE

4" od x 3" Long x 16 ga SS

1шт.

11

BN68875

ELBOW

Reducer 4:3 x 90°

1шт.

12

BN69543

CLAMP

"T" - 3 3/4"

1шт.
