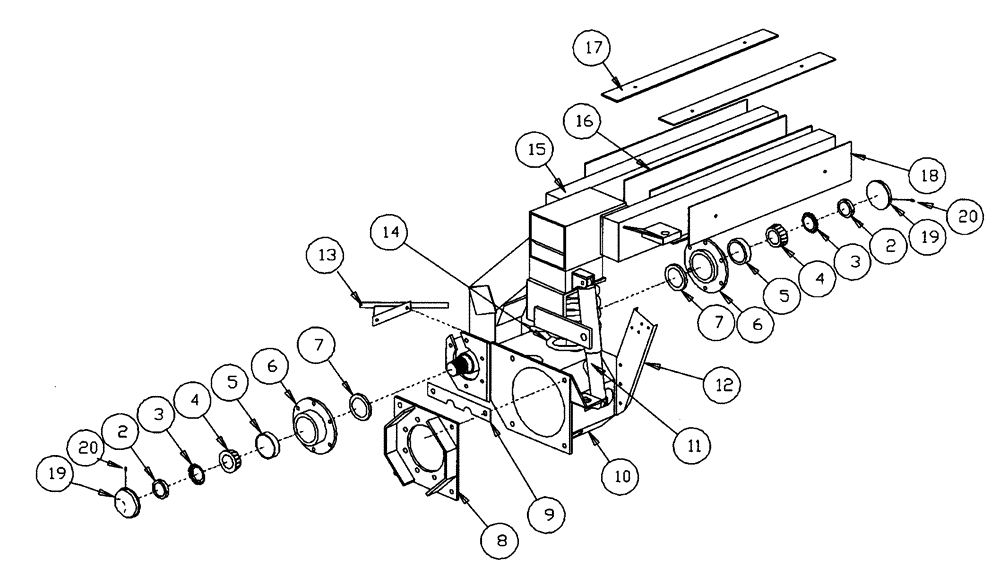

Запчасти Case IH PATRIOT NT (04-015) - REAR STRUT ASSEMBLY Suspension & Frame

1

BN68789

PACKAGE

Dust Cap Complete

2шт.

2

BN80443

LOCK NUT

4шт.

3

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

4шт.

4

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

4шт.

5

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

4шт.

6

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 5

1шт.

6

BN29058

SHIM

8" Dia x 12 ga

1шт.

Associated Part Of Retainer, P/N BN29071

1шт.

7

BN31074

SEAL

4шт.

8

BN66894

PLATE

(Model #7 Hub)

2шт.

8

BN50320

Bolt - 5/8" X 2 1/4" Gr. 8

8шт.

Associated Part Of Plate, P/N BN66894

1шт.

8

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

Associated Part Of Plate, P/N BN66894

1шт.

8

87343677

NUT

Hex, 5/8"-18, G8

8шт.

Associated Part Of Plate, P/N BN66894

1шт.

9

BN29081

4шт.

10

BN66423

BRACKET

L.H.

1шт.

10

BN66422

FRAME

R.H.

1шт.

Same Part Of Housing - L.H., P/N. BN66423 But Opposite Side

1шт.

Not Shown

1шт.

11

BN29316

SHOCK ABSORBER

10" Travel

1шт.

11

BN29612

BUSHING

5/8" od x 17 ga x 1.31" Long

2шт.

Associated Part Of Shock Absorber 10" Travel, P/N BN29316

1шт.

11

86992215

LOCK NUT,1/2"-13, GC

2шт.

Associated Part Of Shock Absorber 10" Travel, P/N BN29316

1шт.

11

BN50894

BOLT

1/2"-13 x 2.5, HH, 5

1шт.

Associated Part Of Shock Absorber 10" Travel, P/N BN29316

1шт.

11

BN53876

BOLT

1/2-13 X 2.5-BSH

1шт.

Associated Part Of Shock Absorber 10" Travel, P/N BN29316

1шт.

12

BN25273

SUPPORT

L.H.

1шт.

12

BN25274

SUPPORT

R.H.

1шт.

Same Part Of Support- L.H., P/N. BN25273 But Opposite Side

1шт.

Not Shown

1шт.

13

BN29690

DEFLECTOR

2шт.

14

BN24159

COIL SPRING

Extra H.D.

2шт.

14

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

Associated Part Of Spring - H.D., P/N BN24159

1шт.

15

BN323935

STRUT

Rear LH

1шт.

15

BN69361

STRUT

R.H.

1шт.

Same Part Of Strut-L.H., P/N. BN69360 But Opposite Side

1шт.

Not Shown

1шт.

16

BN25740

L.H.

2шт.

17

BN25473

LINER

LH

4шт.

17

BN25472

LINER

RH

2шт.

Same Part Of Liner - L.H., P/N. BN25473 But Opposite Side

1шт.

Not Shown

1шт.

18

BN25472

LINER

RH

2шт.

18

BN25617

LINER

RH

2шт.

Same Part Of Liner - L.H., P/N. BN25473 But Opposite Side

1шт.

Not Shown

1шт.

19

BN68788

DUST CAP

w/Drill & Tap

4шт.

20

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

4шт.
