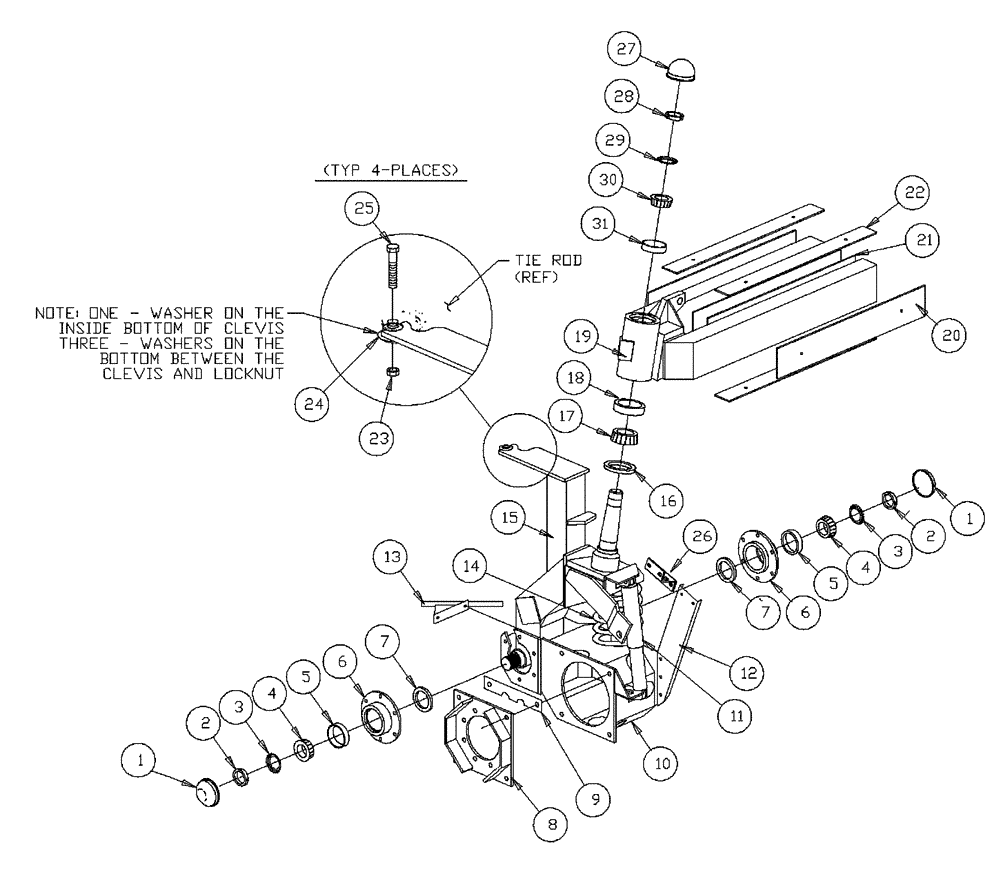

Запчасти Case IH PATRIOT NT (04-014) - FRONT STRUT ASSEMBLY Suspension & Frame

1

BN68789

PACKAGE

Dust Cap

2шт.

2

BN80443

LOCK NUT

6шт.

3

BN80444

LOCK WASHER,2.026" ID x 2.95" OD x 0.015"

lock, bearing

6шт.

4

BN31073

ROLLER BEARING,2" ID x 3.6718" OD x 1.1875"

6шт.

5

ST863

BEARING CUP,93.22mm OD x 23.81mm W

#3720

6шт.

6

BN29071

HUB

Assembly With Race and Seal

4шт.

Includes Ref. 5

1шт.

6

BN29058

SHIM

8" Dia x 12 ga

1шт.

Associated Part Of Retainer, P/N BN29071

1шт.

7

BN31074

SEAL

4шт.

8

BN66894

PLATE

(Model #7 Hub)

2шт.

8

BN50320

Bolt - 5/8" x 2 1/4" Gr. 8

8шт.

Associated Part Of Plate, P/N BN66894

1шт.

8

BN50775

LOCK NUT

5/8"-18 UNF Center

8шт.

Associated Part Of Plate, P/N BN66894

1шт.

8

87343677

NUT

Hex, 5/8"-18, G8

8шт.

Associated Part Of Plate, P/N BN66894

1шт.

9

BN29081

4шт.

10

BN66423

BRACKET

L.H.

1шт.

10

BN66422

FRAME

R.H.

1шт.

Same Part Of Housing - L.H., P/N. BN66423 But Opposite Side

1шт.

Not Shown

1шт.

11

BN29316

SHOCK ABSORBER

10" Travel

1шт.

11

BN29612

BUSHING

5/8" od x 17 ga x 1.31" Long

2шт.

Associated Part Of Shock Absorber 10" Travel, P/N BN29316

1шт.

11

86992215

LOCK NUT,1/2"-13, GC

2шт.

Associated Part Of Shock Absorber 10" Travel, P/N BN29316

1шт.

11

BN50894

BOLT

1/2"-13 x 2.5, HH, 5

1шт.

Associated Part Of Shock Absorber 10" Travel, P/N BN29316

1шт.

11

BN53876

BOLT

1/2-13 X 2.5- BSH

1шт.

Associated Part Of Shock Absorber 10" Travel, P/N BN29316

1шт.

12

BN65585

SUPPORT

L.H.

1шт.

12

BN65584

SUPPORT

R.H.

1шт.

Same Part Of Support - L.H., P/N. BN65585 But Opposite Side

1шт.

Not Shown

1шт.

13

BN29690

DEFLECTOR

2шт.

14

BN309783

COIL SPRING

1.07" Wire x 7.37" od x 14.154" Long

2шт.

14

BN24261

RETAINER,13.46mm ID x 101.6mm OD x 6.35mm Thk

4" od x .53" id x 1/4"

4шт.

Associated Part Of Spring - HD, P/N BN29911

1шт.

15

BN25735

STRUT

L.H.

1шт.

15

BN25734

STRUT

R.H.

1шт.

Same Part Of Strut - L.H., P/N. BN25735 But Opposite Side

1шт.

Not Shown

1шт.

16

86986322

OIL SEAL,110.11mm ID x 136.68mm OD x 12.7mm Thk

Double Lip, 5.381 od x 4.335 id x .5

2шт.

17

BN89876

ROLLER BEARING,82.55mm ID x 33.34mm W

2шт.

18

BN89875

RACE

2шт.

19

BN69014

L.H.

1шт.

19

BN69013

AXLE

R.H.

1шт.

Same Part Of Axle - L.H., P/N. BN69014 But Opposite Side

1шт.

Not Shown

1шт.

20

BN25472

LINER

RH

2шт.

20

BN25617

LINER

RH

2шт.

Same Part Of Liner - L.H., P/N. BN25473 But Opposite Side

1шт.

Not Shown

1шт.

21

BN25470

LINER

LH

2шт.

22

BN25473

LINER

LH

4шт.

22

BN25472

LINER

RH

2шт.

Same Part Of Liner - L.H., P/N. BN25473 But Opposite Side

1шт.

Not Shown

1шт.

23

87344001

NUT

3/4"-16

4шт.

24

BN50178

WASHER

Machine - 3/4"

16шт.

25

87342968

BOLT

3/4"-16 x 4 1/2", G5

4шт.

26

BN63919

BRACKET

Bulkhead Support

2шт.

27

BN89874

DUST CAP

1шт.

28

BN58124

BEARING LOCK NUT

1шт.

29

BN58125

LOCK WASHER

lock, series wh

1шт.

30

BN52024

RACE

1шт.

31

9672528

ROLLER BEARING,69.85mm ID

1шт.
