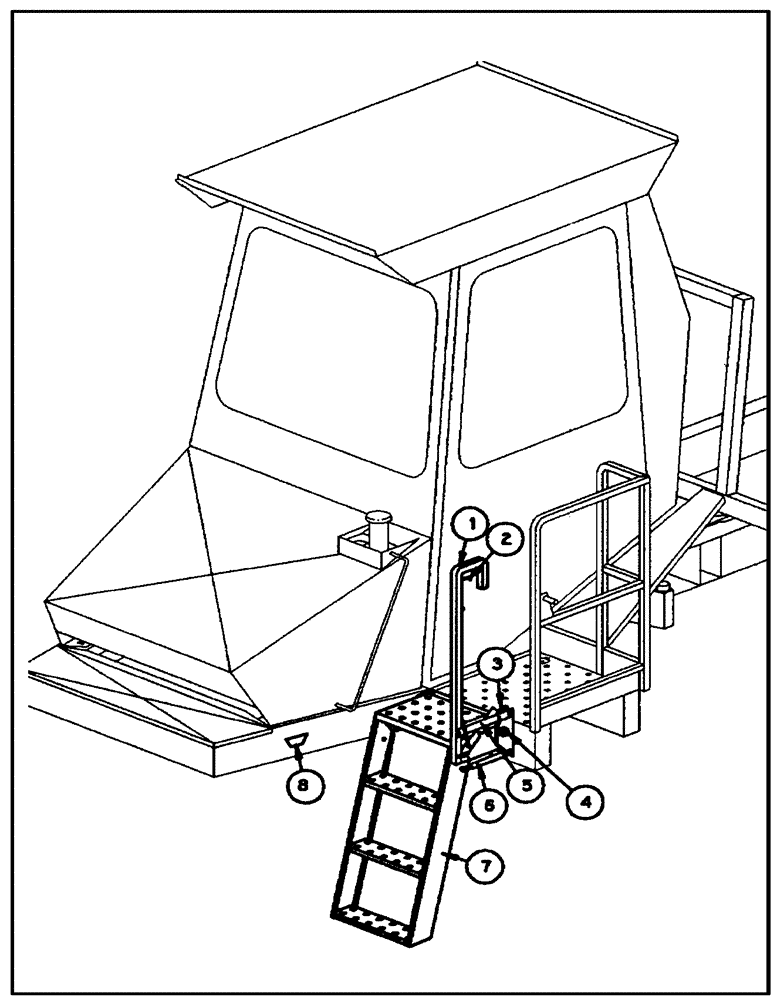

Запчасти Case IH PATRIOT NT (04-012) - LADDER ASSEMBLY Suspension & Frame

1

BN25144

HANDLE

1шт.

2

BN25135

LEVER

Trip Rod, 1/4" x 31"

1шт.

3

BN25136

LEVER

1шт.

4

BN25138

SHAFT

1" x 17.25"

1шт.

4

BN50605

PIN, ROLL

7/32 x 1 1/2

1шт.

Associated Part Of Pin - Front Ladder, P/N BN25138

1шт.

5

BN25137

LEVER

2шт.

6

BN29400A

CYLINDER

Gas Charged

1шт.

6

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

1шт.

Associated Part Of Cylinder, P/N BN29400A

1шт.

7

BN25145

LADDER

Front

1шт.

8

NSS

NOT SOLD SEPARAT

Serial No. Plate

1шт.
