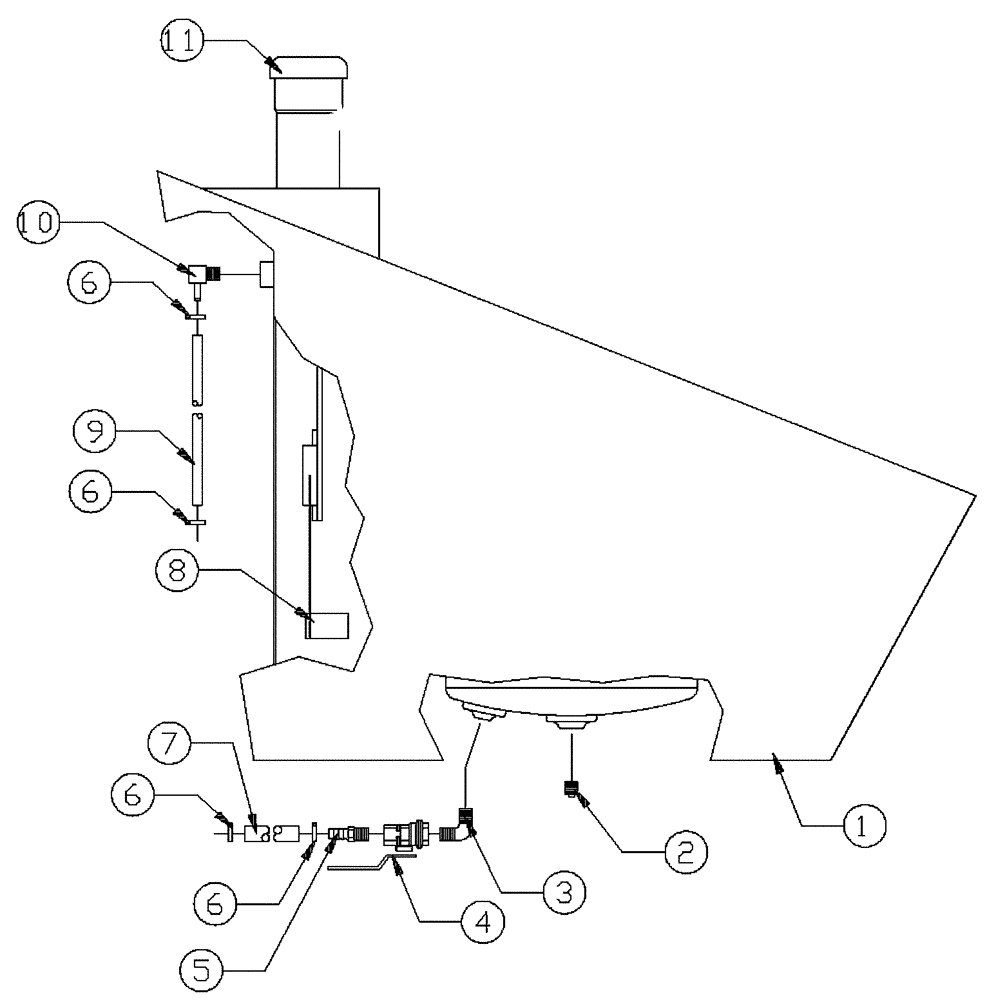

Запчасти Case IH PATRIOT NT (04-003) - FUEL TANK ASSEMBLY Suspension & Frame

1

BN29300

FUEL TANK

1шт.

3

BN52300

ELBOW

90° 1/4"-18 NPT

1шт.

2

BN72220

PLUG

3/4" NPT Drain

1шт.

4

BN94071

VALVE

Ball - 1/4" NPT Bronze

1шт.

5

BN72017

HOSE

barb-1/4" NPTM x 3/8" steel

1шт.

6

BN76094

HOSE CLAMP

SS #M4

4шт.

7

BN24625

Fuel - 3/8" ID X 240"

1шт.

8

BN29308

SENDER UNIT

Fuel Tank

1шт.

9

BN24626

Return Fuel Hose - 1/4" ID x 240"

1шт.

10

BN52303

FITTING

90°

1шт.

11

BN27530

CAP

Gas, Vented

1шт.
