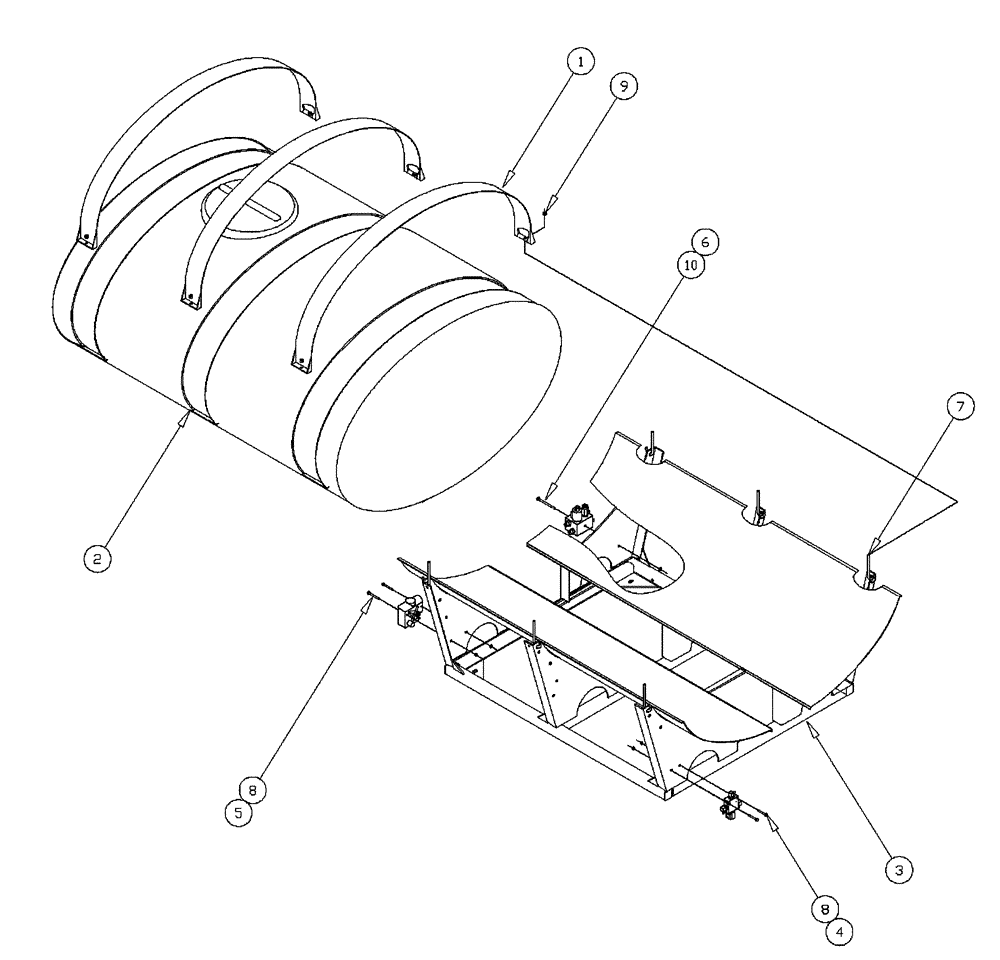

Запчасти Case IH PATRIOT NT (09-009) - 500 GAL TANK AND SKID Liquid Plumbing

1

BN29577

STRAP

500 Gallon

3шт.

2

BN67711

TANK

500 Gallon, W/12" Fill

1шт.

3

BN25708

Tank - Skid 774

1шт.

4

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

5

BN50534

BOLT

Hex, 1/4"-20 x 2 1/2", G5

2шт.

6

BN66740

SCREW,Hex, 5/16" - 18 x 4", SST

5/16-18 X 4, HH, SS

1шт.

7

BN50707

BOLT

J-3/8-16 x 4.5

6шт.

8

BN50051

NUT,1/4"-20, USR

8шт.

9

BN50131

LOCK NUT

3/8-16, CTR, PL

6шт.

10

BN50056

LOCK NUT

5/16"-18, Whiz

1шт.
